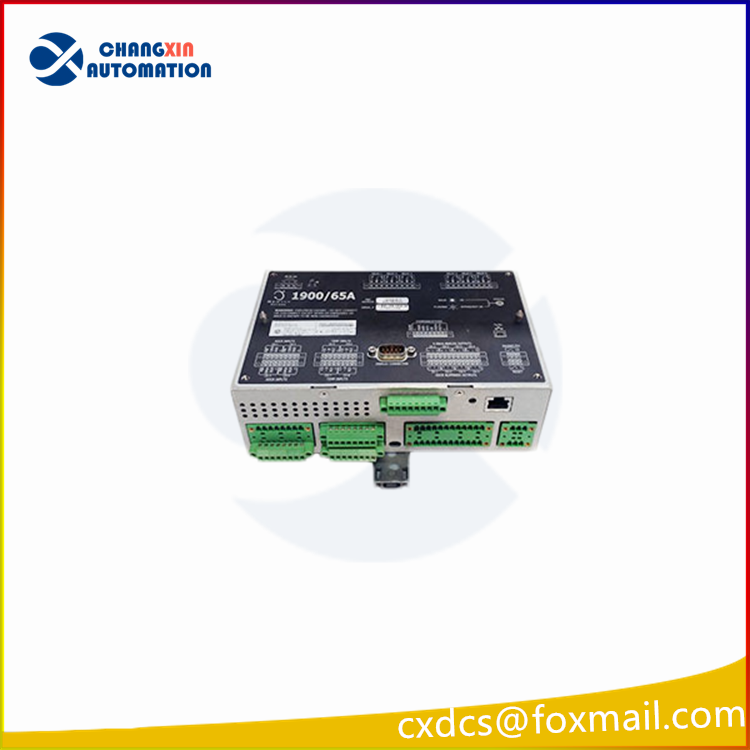

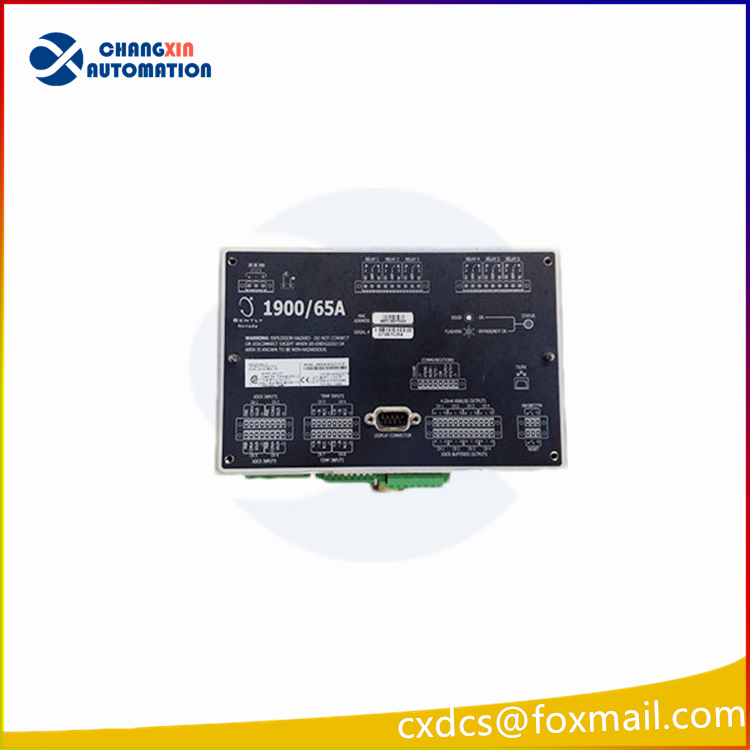

1900/65A-01-01-03 general-purpose equipment monitor

Product Description
The 1900/65A-01-01-03 is a general-purpose equipment monitor produced by Bently Nevada for the real-time monitoring and protection of various mechanical equipment. It is widely used in industrial fields, such as power plants, chemical plants, steel plants, water treatment plants and so on.
Product characteristics
Multi-channel input:
Provides 4 vibration sensor inputs and 4 temperature sensor inputs.
Multiple sensor types are supported, such as 2-wire and 3-wire accelerometers, speed sensors, and proximity sensors.
Output function:
Six relay outputs, four 4-20mA recorder outputs, and a dedicated buffer output.
Support sound and light alarm and relay alarm.
Communication interface:
Support Ethernet and Modbus communication (RS232/485 serial port).
Data storage:
Configuration information is permanently stored in non-volatile memory to ensure data security.
Environmental adaptability:
Operating temperature range: -40°C to +85°C.
Protection level: IP65 or IP67.
Installation and use:
Compact design, easy to install and use.

Product parameter
Power Supply: 18 to 36V DC.
Dimensions: Diameter 65mm, height 36mm.
Weight: Approx. 200g.
Accuracy: ±0.1% full scale.
Frequency range: 2 Hz to 20 kHz.

APPLICATION 1900/65A-01-01-03 general-purpose equipment monitor
The equipment is suitable for a variety of industrial scenarios, including but not limited to:
Power plant: Monitor the vibration of generators, steam turbines and other equipment.
Petrochemical: Used to monitor pumps, compressors and other equipment.
Steel plant: Monitor rolling mill, fan and other equipment.
Water treatment plant: monitoring pumps, filtration equipment.

1900/65A-01-01-01-00 Universal Equipment Monitor for critical asset equipment and auxiliary equipment, The Bentley 1900/65A is designed to provide affordable, independent multi-channel monitoring for assets that require continuous mechanical protection but cannot guarantee the cost of larger, more complex monitoring systems such as the bently 3500 series for critical turbomachinery. The 1900/65A provides additional support for thermal resistance (RTD) temperature sensors, low-cost in-line installation via 232 or 485 interfaces, trip doubling to reduce unnecessary machine trips, and flexible dynamic channels for easy configuration for speed or vibration positions.
