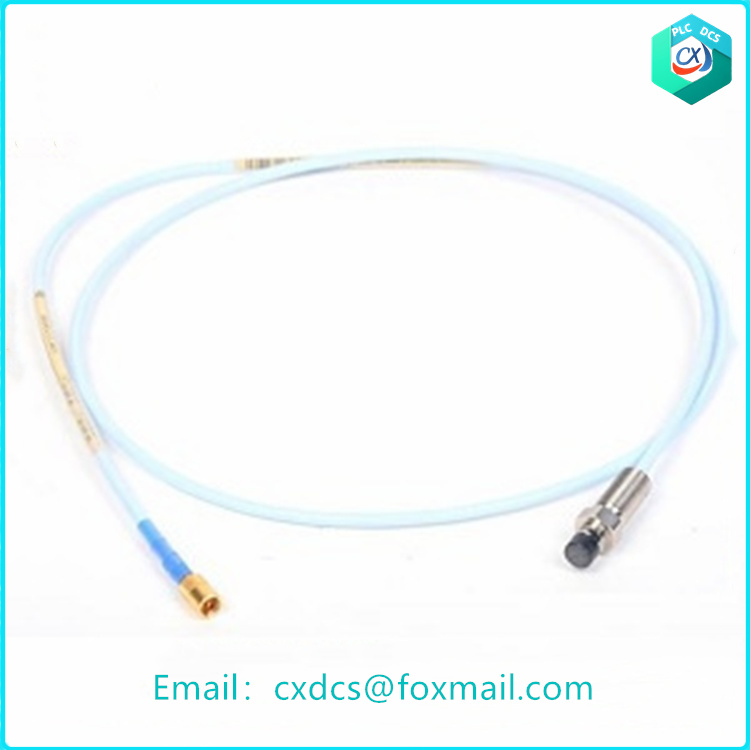

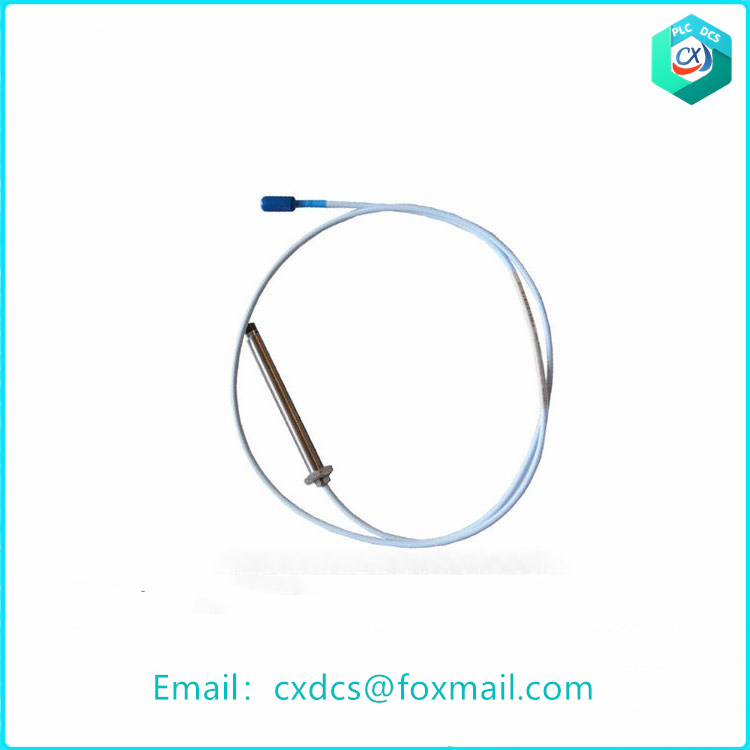

330105-02-12-05-02-05 – 3300 XL 8mm Reverse Mount Probe

SPECIFICATIONS

Part Number: 330105-02-12-05-02-05
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Reverse Mount Probes
Storage Temperature : -51 °C to +177 °C (-60 °F to +351 °F)
Total length option : 10 = 1.0 metre (3.3 feet)
Availability: In Stock
Country of Origin: United States(USA)

330105-02-12-05-02-05 is a 3300 XL 8 mm Reverse Mount Probe manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different lengths, armor, and connectors made by Bently Nevada.

330105-02-12-05-02-05 Functional Description

• The system generates an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
• The 3300 XL 8 mm system provides the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
• This level of performance is provided by all 3300 XL 8 mm proximity transducer systems, and complete interchangeability of probes, extension cables, and Proximitor sensors eliminates the need to match or bench calibrate individual components. Each component of the 3300 XL 8 mm Transducer System is backward and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components.
• This compatibility includes the 3300 5 mm probe, which is useful in applications where an 8 mm probe would be too large for the mounting space.

Product Attributes

• Armored and Unarmored Options
• Multiple Connector Options
• Complete Interchangeability of Units and Cabling

Configuration

• Cable Length: 0.5 m (1.6 ft)
• Connector: Miniature ClickLoc Coaxial
• Agency Approval: Required
• Total Length Option:0.5 metre (1.6 feet)
• Agency Approval: CSA, ATEX, IECEx Approvals
