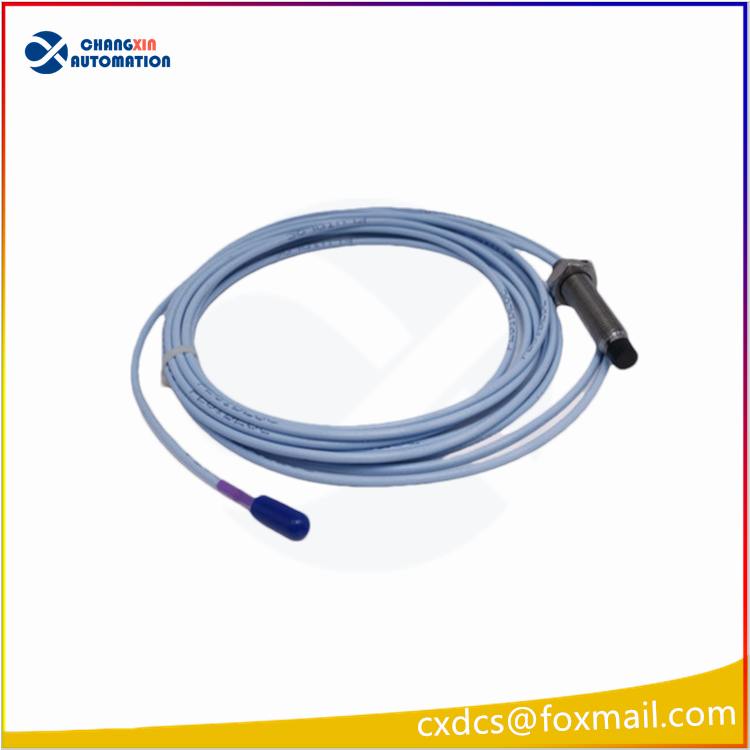

330130-045-02-05 Proximity Transducer

330130-045-02-05 Proximity Transducer

Brief information

Brand/Manufacturer: USA, GE; Bently Nevada

Part Number : 330130-045-02-05

Description: Proximity Transducer

Dimensions 20.3x22x3.5cm

Weight 0.14 kg

Configuration:

Unthreaded Length: 60 mm

Overall Case Length: 100 mm

Total Length: 1 m (39 in)

Connector and Cable Type: Miniature Coaxial ClickLoc Connector, Standard Cable

Agency Approval: Multiple Approvals

3300 XL NSv* Proximity Transducer System

The 3300 XL NSv* Proximity Transducer system is intended for use with

centrifugal air compressors, refrigeration compressors, process gas compressors

and other machines with tight installation requirements. The 3300 XL NSv

Proximity Transducer System consists of:

3300 NSv probe

3300 NSv extension cable

3300 XL NSv Proximitor* Sensor.1

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm

(200 mV/mil), which is the most common output for eddy current transducers. Its

enhanced side-view and small target characteristics give it a shorter linear

range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System.

With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-

series 190 Transducer System.
