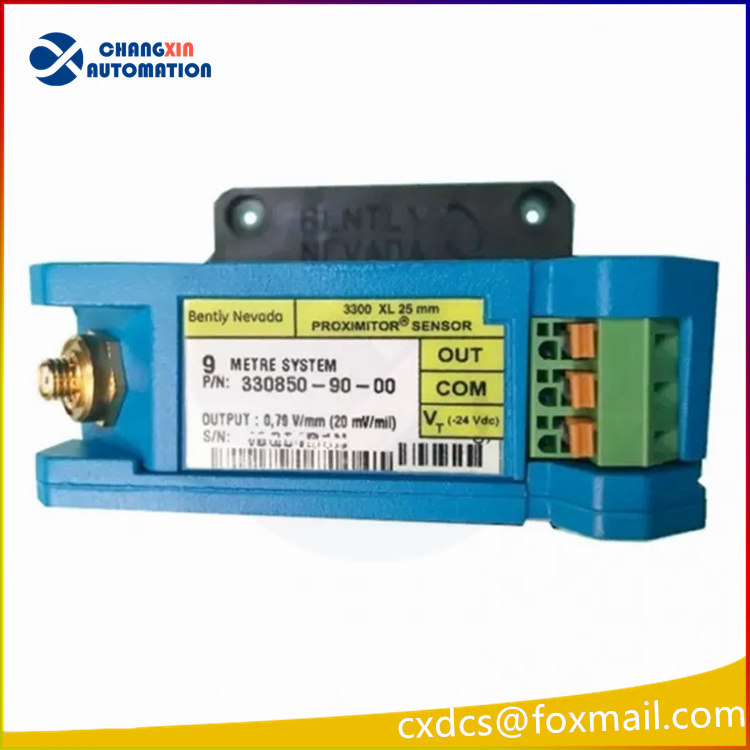

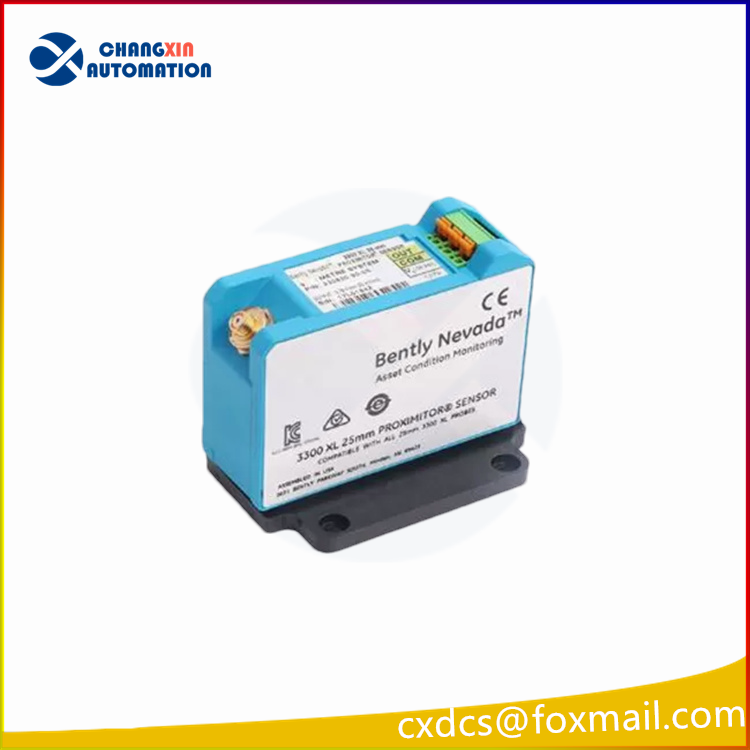

330850-90-00 3308509000 BENTLY NEVADA Proximity Sensor
Product Details:
| Brand Name | Bently Nevada |
| Model | 330850-90-00 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $600 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Extension Cable Material | |
| Standard cable | 75 Q triaxial, fluoroethylene propylene (FEP) insulated |
| Extended Temperature Range cable | 75Ω triaxial, perfluoroalkoxy (PFA) insulated. |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
Description:
Mixing XL and non-XL 3300-series 5 mm and 8 mm system components limits system performance to the specifications for the nonXL 3300 5 mm and 8 mm Transducer System.
The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. It is used when physical (not electrical) constraints preclude the use of an 8mm probe. When your application requires narrow side view probes, use the 3300 NSv Proximity Transducer System (refer to Document 147385).
8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.
Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. We do not recommend silicone tape for applications that will expose the probe-to-extension cable connection to turbine oil.
Our products are widely used in:
✔ CNC machinery metallurgy,
✔ oil and gas,
✔ petrochemical,
✔ chemical,
✔ paper printing,
✔ textile printing and dyeing,
✔machinery,
✔ electronics manufacturing,
✔ automobile manufacturing,
