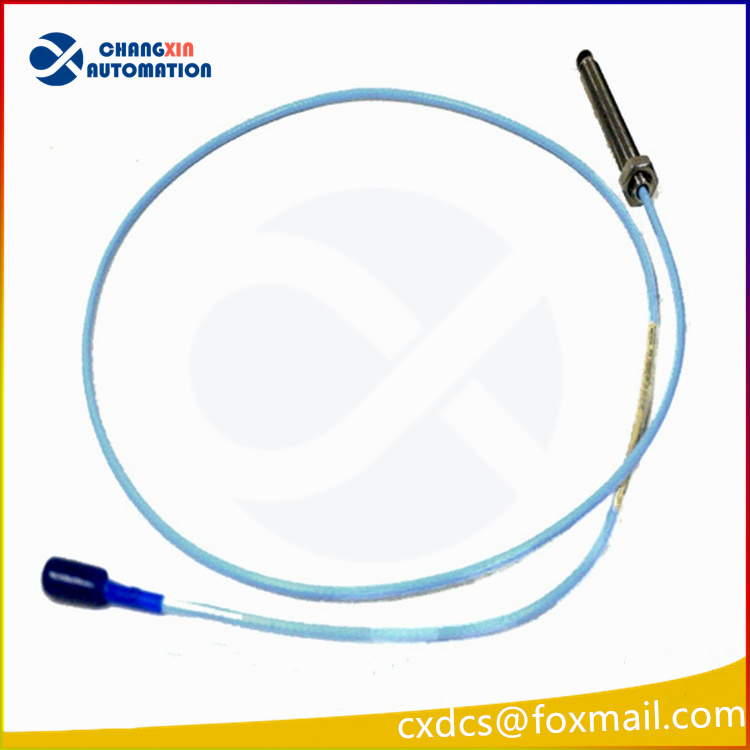

330903-00-06-05-02-CN Bently Nevada Approaching eddy current sensor vibration probe

Power Supply

The 3500/15 Power Supplycan be ordered for ac or dcinput power, providingcompatibility with voltagesources worldwide. Linenoise filters are standard.The 3500 Rack canoperate from a singlesupply, or dual suppliescan be used to provideredundancy for situationsthat cannot tolerate power interruption.

Each supply can individually providepower to the entire rack and its modules.When redundant supplies are used, thelower supply acts as primary power forthe rack while the upper supply acts as abackup, ready to instantly andautomatically operate as the primary racksupply without interrupting rack functionsshould the primary supply fail.

AboutBently Nevada

• 3500/05 Instrument Rack (required)

• One or two 3500/15 Power Supplies (required)

• 3500/22M Transient Data Interface (TDI) Module(required)

• One or more 3500/XX Monitor Modules(required)

• One or more 3500/32M (4-channel) or 3500/33(16-channel) Relay Modules (optional)

• One or two 3500/25 Keyphasor* Modules(optional)

• One or more 3500/92 Communication GatewayModules (optional)

• Input/Output (I/O) Modules (required)

• 3500/94M VGA Display (optional)

• Internal or external intrinsic safety barriers, orgalvanic isolators for hazardous areainstallations (optional)

• 3500 System Configuration Software (required)
