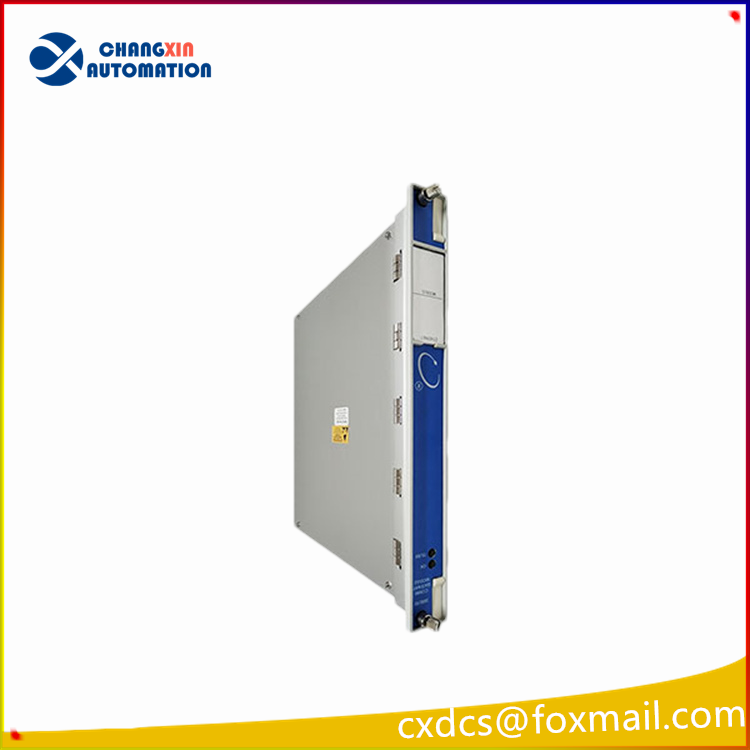

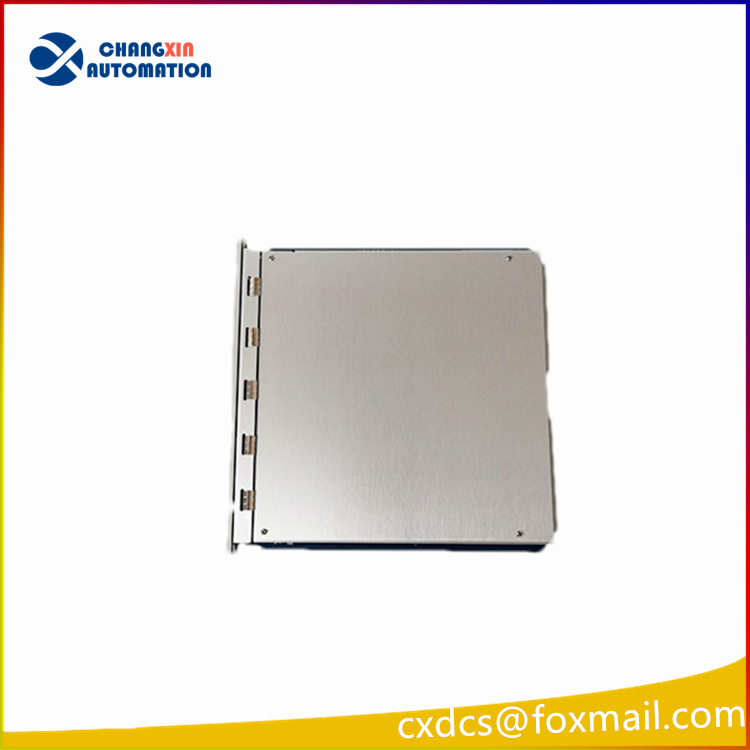

3500/92 Bently Nevada Communication Gateway Module

3500/92 Communication Gateway Module

Short Description

Brand/Manufacturer: Bently Nevada

Origin: USA

Part Number: 3500/92

Alternate Part Number: 136180-01

Description: Communication Gateway

Dimensions: 2.5×25.8x12cm

Weight: 0.82 kg

Warranty: 1 year

The 3500/92 Communication Gateway module provides extensive

communication capabilities of all rack monitored values and statuses for

integration with process control and other automation systems using both

Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It

also permits Ethernet communications with 3500 Rack Configuration Software

and Data Acquisition Software.

Supported protocols include:

Modicon® Modbus® protocol (via serial communications)

Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP

Ethernet communications)

Proprietary Bently Nevada protocol (for communication with 3500 Rack

Configuration and Data Acquisition Software packages)

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star

configuration Ethernet networks.

The 3500/92 supports the communication interfaces, communication protocols,

and other features from the original 3500/90 with the exception of the primary

value Modbus registers. The 3500/92 now has a Configurable Modbus Register

Utility, which can provide the same functionality originally addressed by the

primary value Modbus registers.

Spares

138629-01 3500/92 Manual

04425545 Grounding Wrist Strap (single use)

137495-01 Firmware IC (Odd bank)

137494-01 Firmware IC (Even bank)

136180-01 3500/92 Communication Gateway Module.

125736-01 ModbusRS232/RS422 I/O Module.

133323-01 ModbusRS485 I/O Module.

136188-01 Ethernet/RS232 Modbus I/O Module

136188-02 Ethernet/RS485 Modbus I/O Module
