3500/94 Bently Nevada VGA Display Monitor
Brand/Manufacturer: Bently Nevada
Part Number: 3500/94
Origin: USA
Alternate Part Number: 145988-01
Description: Display Router
Dimensions: 24.3×4.6×15.5cm
Weight: 0.55 kg
Description
The 3500/94 VGA Display uses a standard color VGA monitor with “Touch
Screen”technology to display 3500 data. This product has two components, the
3500/94 VGA module and its I/O card, and secondly, the VGA display monitor.
The display monitor, with standard cabling, can be mounted up to 8 m (25 ft)
from the rack.
The 3500/94 displays all 3500 Machinery Protection System information,
including:
System Event List
Alarm Event List
All module and channel data
3300 style rack view (API-670)
Current alarm data (quick view)
Nine custom display options.
All are accessed through a Main Menu using a Touch Screen
Multiple Rack Feature

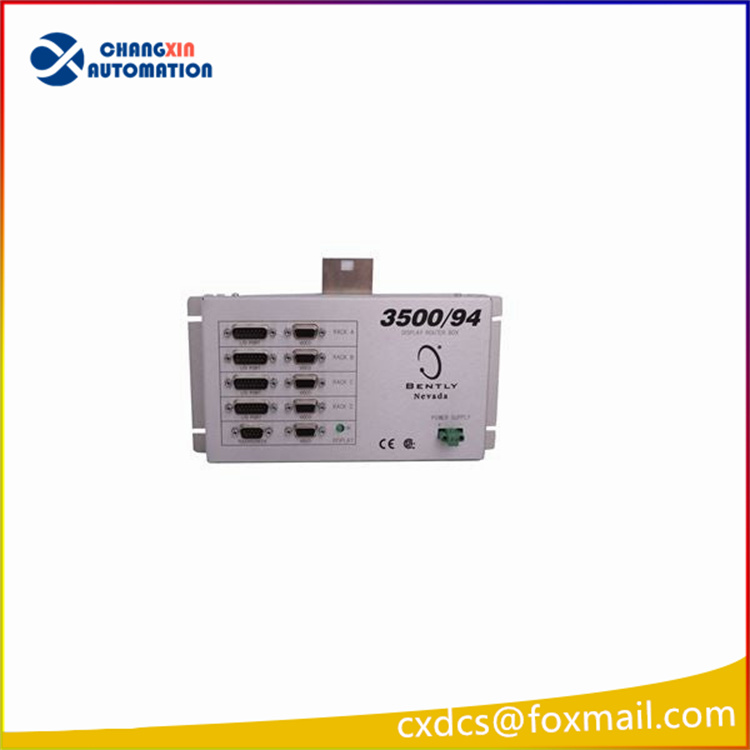

Selecting the 3500/94 Display Router Box provides an additional viewing feature.
This feature allows users to view a maximum of four racks with one display.
Each rack must be individually viewed, but the rack address and alarm status of
each rack is always visible in the upper right corner of the screen. The Display
Router Box must be located within 6 m (20 ft) of each 3500 rack.
Part of 3500/94-AA-BB-CC
| 3500/94-01-00-00 | 3500/94-06-00-00 | 3500/94-11-00-00 |
| 3500/94-01-01-00 | 3500/94-06-01-00 | 3500/94-11-01-00 |
| 3500/94-01-02-00 | 3500/94-06-02-00 | 3500/94-11-02-00 |
| 3500/94-01-03-00 | 3500/94-06-03-00 | 3500/94-11-03-00 |
| 3500/94-02-00-00 | 3500/94-07-00-00 | 3500/94-12-00-00 |
| 3500/94-02-01-00 | 3500/94-07-01-00 | 3500/94-12-01-00 |
| 3500/94-02-02-00 | 3500/94-07-02-00 | 3500/94-12-02-00 |
| 3500/94-02-03-00 | 3500/94-07-03-00 | 3500/94-12-03-00 |
| 3500/94-03-00-00 | 3500/94-08-00-00 | 3500/94-13-00-00 |
| 3500/94-03-01-00 | 3500/94-08-01-00 | 3500/94-13-01-00 |
| 3500/94-03-02-00 | 3500/94-08-02-00 | 3500/94-13-02-00 |
| 3500/94-03-03-00 | 3500/94-08-03-00 | 3500/94-13-03-00 |
| 3500/94-04-00-00 | 3500/94-09-00-00 | 3500/94-14-00-00 |
| 3500/94-04-01-00 | 3500/94-09-01-00 | 3500/94-14-01-00 |
| 3500/94-04-02-00 | 3500/94-09-02-00 | 3500/94-14-02-00 |
| 3500/94-04-03-00 | 3500/94-09-03-00 | 3500/94-14-03-00 |
| 3500/94-05-00-00 | 3500/94-10-00-00 | 3500/94-15-00-00 |
| 3500/94-05-01-00 | 3500/94-10-01-00 | 3500/94-15-01-00 |
| 3500/94-05-02-00 | 3500/94-10-02-00 | 3500/94-15-02-00 |
| 3500/94-05-03-00 | 3500/94-10-03-00 | 3500/94-15-03-00 |
