Description

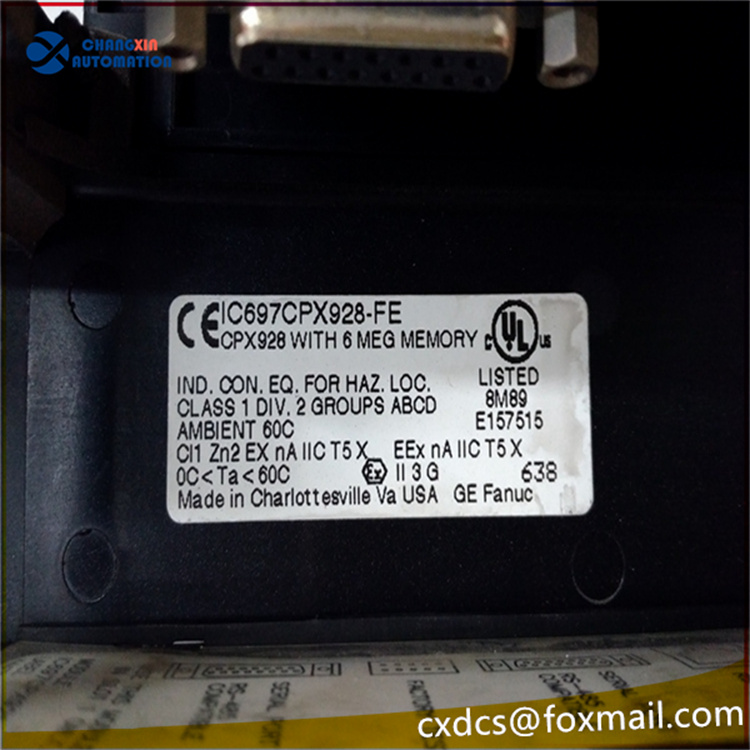

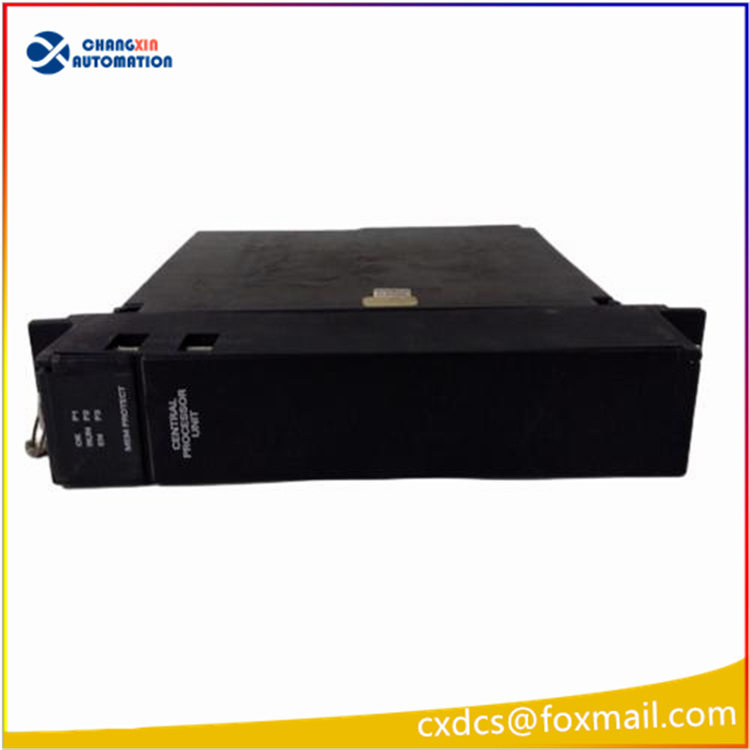

The GE IC697CPX928 is a Central Processing Unit (CPU) module designed for use with the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. The module is a high-performance CPU with a clock speed of up to 200 MHz and a built-in Floating Point Unit (FPU) for enhanced processing capabilities.
Product Parameters
The parameters of the GE IC697CPX928 CPU module include:
• Input Voltage: 5V DC
• Power Consumption: 6 Watts
• Operating Temperature: 0 to 60 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Humidity: 5% to 95% non-condensing
Specifications
The GE IC697CPX928 CPU module has the following specifications:
• Memory: 512Kbyte Battery-Backed SRAM
• Communication Ports: 1 RS-232 Serial Port and 1 Ethernet Port
• Programming: Supports Ladder Logic, C, and Function Block Diagram programming languages
• Compatibility: Compatible with all GE Fanuc Series 90-70 modules
Application
The GE IC697CPX928 CPU module is ideal for use in high-performance and complex automation applications such as:
• Manufacturing processes
• Oil and gas industry
• Power generation and distribution
• Water and wastewater treatment
• Material handling
• Packaging and labeling
With its high processing speed, large memory capacity, and versatile programming options, the GE IC697CPX928 is a reliable and efficient choice for any industrial automation project.
Features

• Contains 256K of non-volatile user flash memory
• Supports BMA in release 7.92 and later
• 12K inputs and outputs (any mix), and up to 8K analog I/O
• 0.4 microseconds per Boolean function
• 80486DX4 microprocessor
• Supports IC66 (can be IC660 or IC661) and IC697 I/O
• Configurable data and program memory
• Battery-backed calendar clock
• Three-position operation mode switch
• Password-controlled access
• Remote programmer keyswitch memory protection
• Seven status LEDs
• Software configuration (no DIP switches or jumpers)
• Reference information inside the front door
• In-system upgradable firmware
