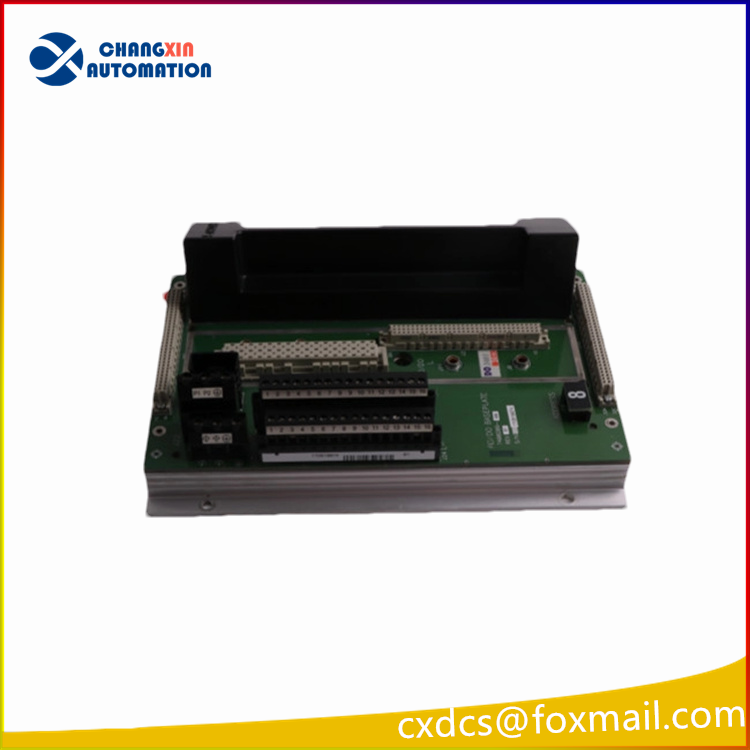

The 7400209-030 DO2401 Triconex Digital Output (DO) Module is an essential component used

in Triconex safety and control systems, enabling the system to execute actions based on the digital

output signals it receives from field devices. It is specifically designed to drive outputs to control devices

such as actuators, valves, and relays in industrial automation, particularly in safety-critical applications. The DO2401

module is vital for ensuring the reliable execution of system actions, such as triggering alarms or initiating emergency shutdowns when certain conditions are met.

Frequently Asked Questions About 7400209-030 DO2401

1.How many output channels does the DO2401 module provide?

The DO2401 module has 8 digital output channels, each capable of controlling field devices such as solenoids, relays,

and actuators, providing on/off control in safety-critical and process automation systems.

2.What is the typical output voltage of the DO2401 module?

The DO2401 module typically supports 24 VDC digital outputs. It can be configured to match the voltage requirements of different connected devices.

3.What is the maximum current rating per output channel?

The DO2401 module can handle an output current of approximately 0.5 A per channel, allowing it to drive field devices that require

moderate amounts of current for operation.

Features of the TRICONEX system
– Provides a triple module redundancy structure, with three identical sub-circuits performing their own level of control on site. – Withstand harsh industrial environments.
Can be installed on-site, can be on-site online module installation and repair work without disrupting the field wiring. – Can support up to 118 1/0 modules (analog and digital) and optional communication modules, communication modules can be connected to Modbus host and slave, Or connect Foxboro to the Honeywell Distributed Control System (DCS), its various Tricons within the Peer-to-Peer network, and external hosts over the TCP/IP network. – Can support remote I/O modules located up to 12 km (7.5 mi) away from the main frame.
– Use programming software based on WINDOWS NT system to develop and debug the control program. Intelligent functions are provided in the input and output modules to reduce the workload of the main processor. Each I/0 module has three microprocessors.
The input module’s microprocessor filters and repairs the input and diagnoses hardware failures on the module.
The output module microprocessor provides information on the voting of the output data, checks the validity of the output status by the feedback loop voltage at the output, and can diagnose field line problems.
– Provide comprehensive online diagnostics with repair capabilities.
One can perform routine maintenance while Tricon is operating normally without interrupting the control process.

The Triconex process safety family of products provides a flexible, scalable, and operational architecture, heavy module redundancy (TMR) architecture, and fault-tolerant controllers that improve the safety and availability of systems and processes.
TRICONEX process safety solutions are widely used in industries with high safety requirements, such as petroleum, chemical, coal chemical, natural gas, electric power, rail transit and nuclear power. In the field of critical security and control applications,
