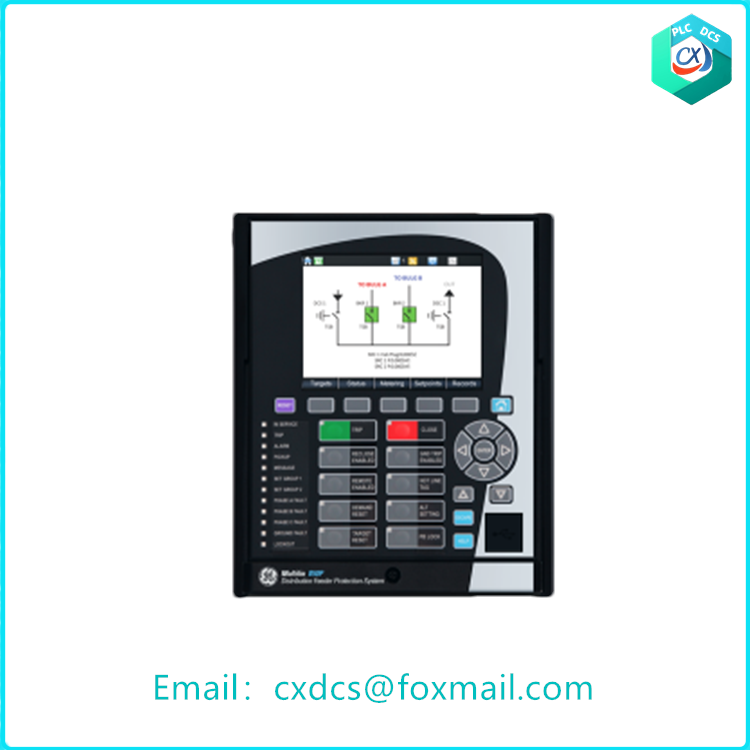

850-E-P5-NN-S5-H-N-N-A-L-A-G-A-S-F-C-SE-N-W-B-N-2 GE Multilin 850 Relay

product description:

The Multilin 850 relay is a member of the Multilin 8 series protection relay platform and is designed for the management, protection and control of feeder applications. Multilin 850 is an integrated all-in-one solution for providing comprehensive protection, control and monitoring for underground and overhead single and doubly-fed lines in industrial and public power networks.

The Multilin 850 is also an ideal choice for interval control applications. Its functions include 12 switchgear control elements, a large color graphic display supporting configurable monoculars, an integrated signaler panel, and 20 user-configurable virtual buttons.

Thanks to its support for industry-leading communication protocols and technologies, the 850 can be easily integrated into new or existing SCADA or DCS to enhance situational awareness capabilities. In order to simplify the migration and upgrade of the existing SR 750/760 or 735 protection relays, a modification kit has been developed, which greatly simplifies the upgrade process.

Technical Specification
Number of output channels: 8 channels.
Output signal type: Supports standard industrial signals such as 4-20mA and 0-10V.
Accuracy: ±0.1% FS (typical value).
Isolation voltage: The isolation voltage between channels and between channels and the system is ≥1500V AC (effective value).
Environmental adaptability: The operating temperature range is typically from -20℃ to +70℃, meeting the harsh environmental requirements of industrial sites.
Application Scenarios
Process control: In industries such as chemical engineering, petroleum, and natural gas, it is used to precisely control parameters such as valve opening and flow rate.
Electric power automation: It drives the actuators in power equipment to achieve remote monitoring and automatic regulation.
Water treatment and environmental protection: In water treatment plants, sewage treatment plants and other places, control the operating parameters of equipment such as pumps and fans.
Manufacturing industry: In automated production lines, it is used to control key parameters such as motor speed and pressure.
