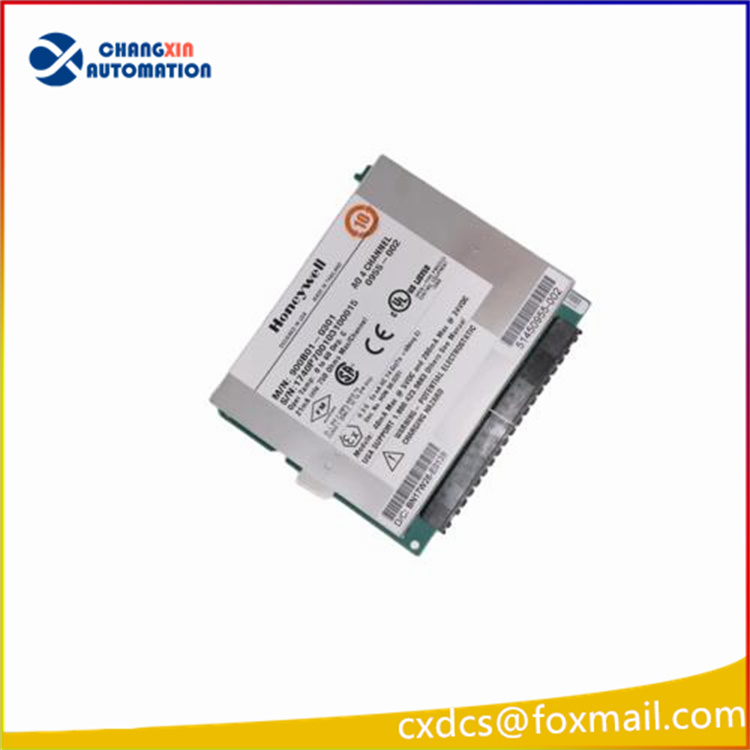

The Honeywell 900B08-0202 Analog Output Module is an 8-channel analog output module of the Honeywell ControlEdge 900 platform, specifically designed for industrial process control. It offers current output ranging from 0 to 20mA, featuring high precision, high reliability and modularity. It is suitable for industrial scenarios that require precise analog signal control.
Core Functions and Features
8-Channel Analog Output
The module provides 8 independent analog output channels, each capable of outputting a current signal ranging from 0 to 20mA. Users can scale the output range to any value within 0 to 21.8mA as per their requirements.
The output channels are divided into two groups, with 4 channels in each group. Channels within a group are electrically isolated, but there is no isolation between groups.
High Precision and Reliability
Supports precise current output, suitable for controlling actuators, valves, and other industrial equipment.
The module features a fail-safe function. When communication with the controller is interrupted, a user-defined fail-safe value can be set to ensure predictable system operation.
Output rate of change limits can be configured to prevent signal jumps from causing damage to equipment.
Status Indication and Diagnostics
The module is equipped with a green status LED that flashes when the module is being scanned.
A red status LED is used to indicate module or channel diagnostic information, facilitating quick troubleshooting.
Modular Design
Adopting a modular structure, it can be easily integrated into the Honeywell ControlEdge HC900 controller system, supporting flexible expansion.
Complies with industrial standard dimensions (137mm H × 35.6mm W), facilitating installation and maintenance.
Application scenarios
Industrial automation control: Used to control valves, actuators, frequency converters and other equipment that require analog signal input.
Process control system: In industries such as chemical, petroleum and power, it enables precise regulation of process parameters.
Distributed Control System (DCS): As the input/output module of DCS, it supports signal acquisition and control for large-scale industrial systems.
Product advantages
High compatibility: Seamless integration with Honeywell ControlEdge HC900 controller, supporting multiple industrial protocols.
Flexible configuration: Users can customize the output range and fault safety values of each channel through software.
Long-term stability: Utilizing industrial-grade components to ensure stable operation in harsh environments.
Global certification: Compliant with multiple international industrial safety standards, suitable for the global market.
