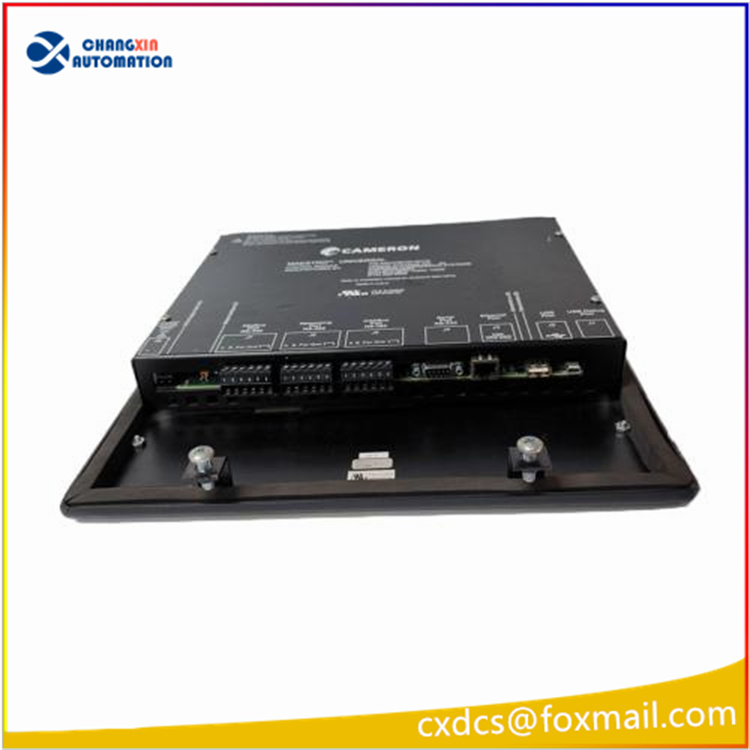

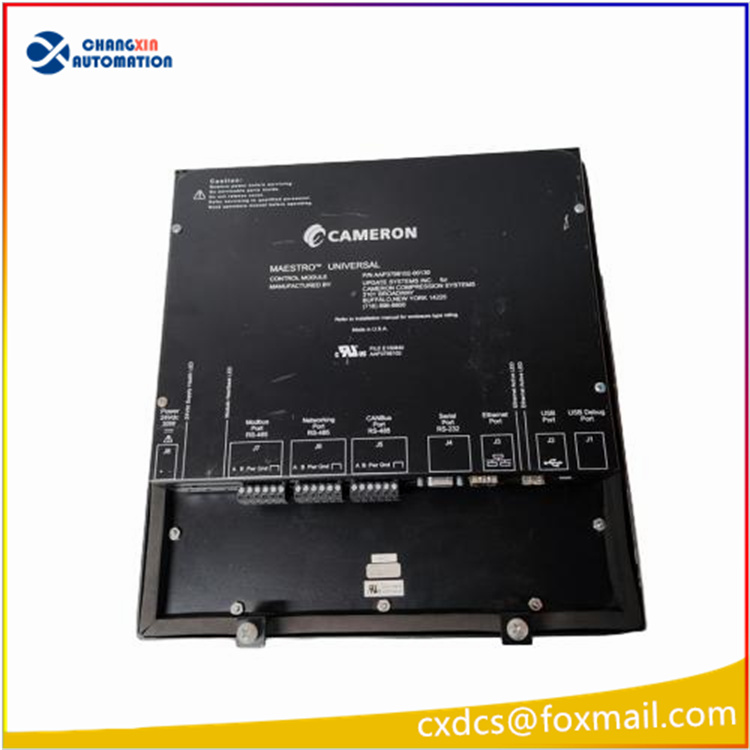

CAMERON AAP3798102-00140 30 The Universal display compressor control module then uses a universal patch board or patch board to mount the patch board inside the control housing and connect the shielded cable from the patch board to each input circuit on the module’s patch board terminals.
Y Connect the shield of each cable to the gold panel next to the patch panel. Do not connect the shield at the module end (cut the shield at the cable module end and insulate it with a heat shrink tube).
Y Connect the field device to the terminal board with a shielded cable, grounding the shield only at the device end (cut off the shield at the terminal board end of the cable and insulate it with a heat shrink tube). In addition, the length of the exposed (shielded external) leads at the terminal board and device end should be reduced as much as possible. Direct Method Y Connects the shielded cable directly from the field device (sensor, potentiometer, etc.) to the module.
Y Connect the guide to the applicable screw on the module terminal board. Ground the shielding at the end of the field device so that a minimum number of conductors are exposed to noise. Do not connect the shield at the module end (cut the shield at the cable module end and insulate it with a heat shrink tube). CAMERON AAP3798102-00140 TBQC Not recommended for analog modules Due to cable shielding requirements, terminal board Quick Connection (TBQC)
Core Function Analysis
High-definition Display

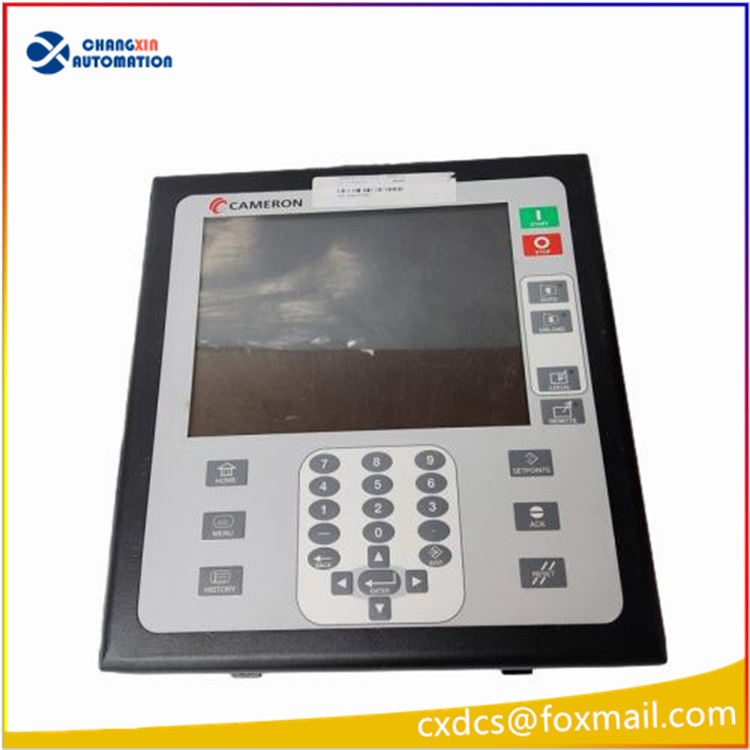

Equipped with a 640×480 color graphic display, supporting backlight adjustment, suitable for outdoor strong light environments.
Real-time display of compressor operating parameters (pressure, temperature, speed), fault codes, and system status. The operation interface uses a 31-key membrane keyboard, including a numeric keypad area and 4 LED indicators, enhancing operational intuitiveness.
Intelligent Control Algorithm
Based on the Freescale i.MX31 processor (532 MHz) and QNX Neutrino real-time operating system, it realizes dynamic adjustment of compressor operating efficiency.
By optimizing compression ratio and load matching, energy consumption is reduced by 10%-15%, and it supports automatic switching of operation modes according to process requirements.
Full Parameter Monitoring and Protection
Real-time monitoring of 20+ parameters such as pressure (0-10 MPa), temperature (-20°C to 150°C), vibration (0-100 mm/s).
It has a three-level protection mechanism:
Warning level: Sound and light alerts are triggered when parameters deviate by 5% from the set value;
Load reduction level: Automatically reduces load to a safe range when deviating by 10%;
Shutdown level: Forced shutdown and locking occurs when deviating by 15%, preventing equipment damage.
Modular Design and Maintenance
Uses a Nema 4X (IP66) protection grade enclosure, supporting wall mounting or panel installation, adaptable to storage temperatures of -23°C to 60°C and altitudes of 0-2000m.
The maintenance cycle is extended to 5000 hours, and the fault diagnosis function can locate to specific sensors or circuit modules, reducing downtime.
Application scenarios and advantages
Oil and gas industry
In oil and gas extraction, the module can withstand low temperatures of -20℃ and H2S corrosive environments. It achieves remote monitoring through redundant communication interfaces, ensuring reliable operation of compressors in extreme conditions such as deserts and oceans.
Chemical production
For flammable and explosive scenarios, the module supports intrinsically safe (Ex ia) certified design. When combined with explosion-proof enclosures, it can safely monitor the gas compression and transportation processes, avoiding explosion risks caused by abnormal parameters.
Energy and power sector
In gas turbine air compression systems, the module optimizes fuel consumption rate (SFC) by dynamically adjusting the compression ratio, reducing power generation costs. A power plant’s actual measurement shows that it saves over 500,000 yuan in fuel costs annually after its use.
Transportation
Applied in high-speed rail air conditioning compressor control, the module enhances passenger comfort through high-speed response (<10ms) and precise temperature control (±0.5℃), while reducing train energy consumption by 8%.
