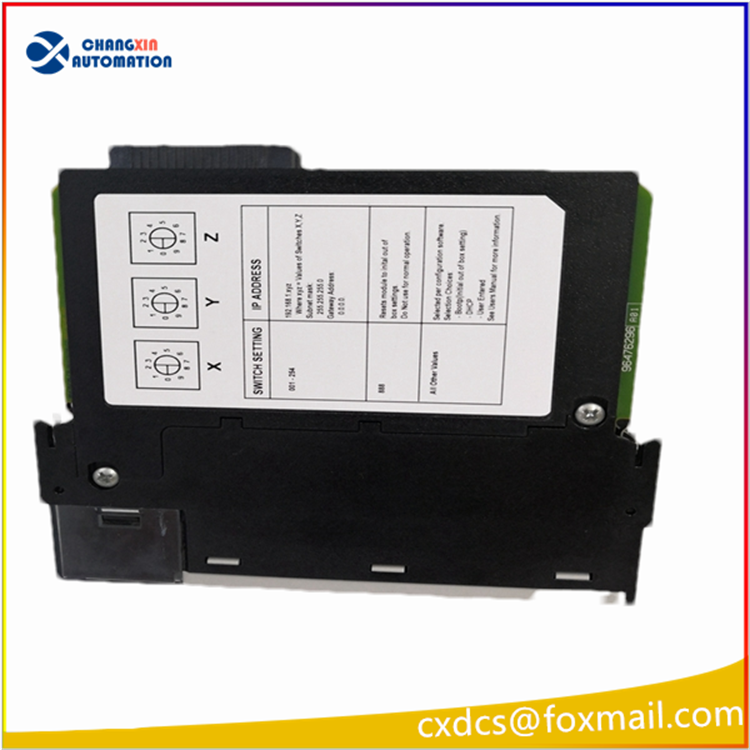

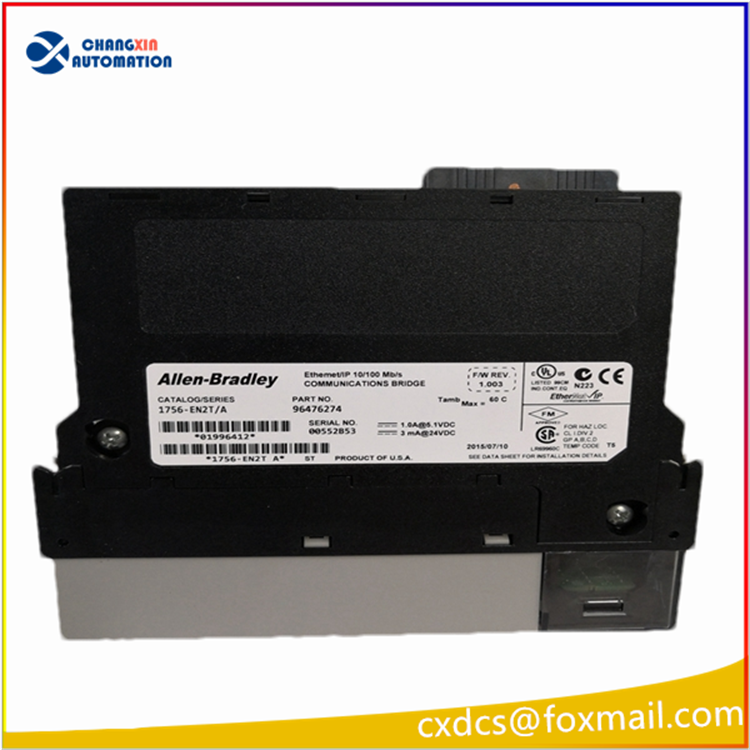

The AB 1756-EN2T Ethernet module is a high-performance Ethernet communication module of the ControlLogix series from Rockwell Automation (Allen-Bradley). It is specifically designed for industrial automation systems, featuring high-speed data transmission, multi-protocol support, redundant configuration, and powerful network management capabilities. It is suitable for industrial scenarios that require high reliability and real-time communication.
Core Function
High-speed Data Transmission
Supports the EtherNet/IP protocol, with data transmission rate up to 100Mbps (depending on network configuration), meeting the requirements for real-time control and monitoring in industrial automation systems.
Equipped with two independent communication ports, supporting redundant configuration. When the primary port fails, the backup port automatically takes over to ensure continuous system operation.
Multi-protocol Compatibility
In addition to EtherNet/IP, it also supports ControlNet, DeviceNet, Data Highway Plus and other industrial communication protocols, and supports interaction with third-party devices via Modbus TCP (requires firmware version V20 and above).
Cross-protocol communication capability simplifies system integration and reduces equipment compatibility costs.
Network Management and Diagnosis
Built-in real-time network status monitoring, capable of detecting and reporting potential faults, helping users quickly locate problems.
Supports hot-swappable function, allowing for module replacement or upgrade without downtime, reducing maintenance costs.
Modular and Expandability
Adopts plug-and-play design, supporting 128/256 Logix connections (depending on configuration), meeting the needs of large-scale industrial networks.
Can be connected to various devices via RJ45 Ethernet interface, supporting embedded switch technology to achieve cross-network data bridging.
Product Features :
High standard compliance: fully compliant with the requirements of the American Petroleum Institute API670 standard for this type of system, and is also designed to meet the API618 standard for reciprocating compressor applications, and has passed DNV and Class NK certificates for offshore applications, as well as Canadian Standards Association (CSA), Factory Mutual Aid (FM), GOST, ATEX and CE certifications.
Self-Detecting and Fault-Tolerant: Designed with self-detecting and fault-tolerant, it can be configured for a variety of redundancy, ranging from the addition of a second fully redundant power supply to a full Triple Modular Redundancy (TMR) configuration for selected or all channels to meet the most mission-critical applications.
Seamless Connectivity: Seamlessly connected to Bently System1 Condition Monitoring & Diagnostic Analysis software platform, the communication gateway module communicates with plant control and automation systems.
