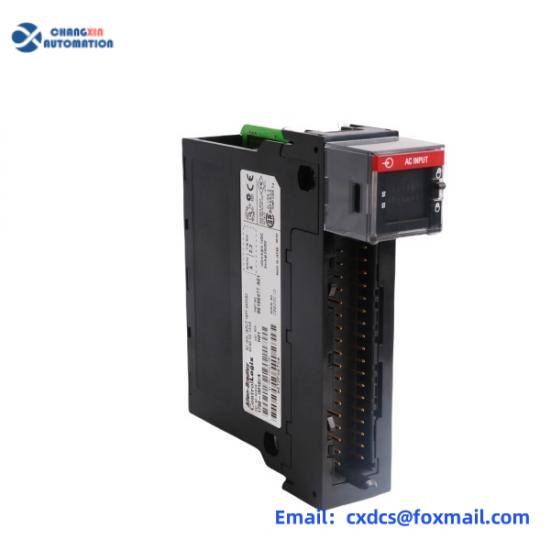

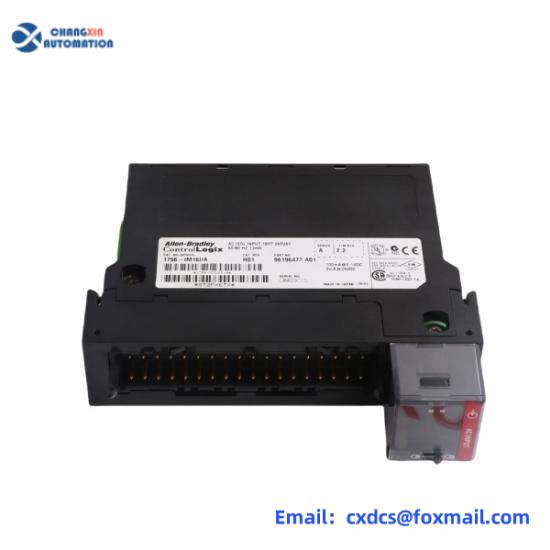

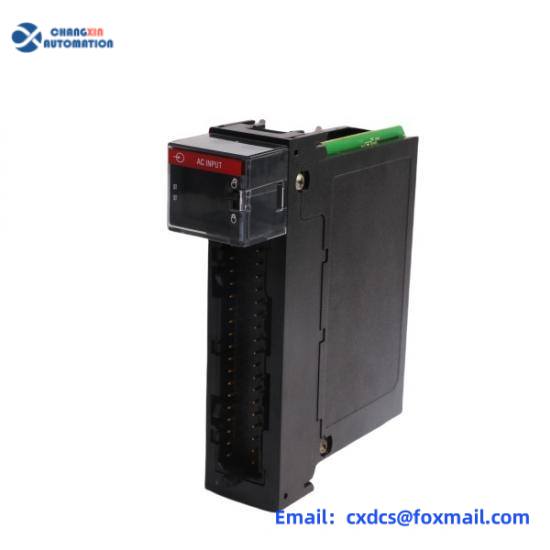

Allen Bradley 1756-IM16 Industrial Control Module – High-Speed Analog Input Processing
Engineered for precision data acquisition in demanding industrial environments, the Allen Bradley 1756-IM16 ControlLogix module delivers 16-bit resolution across 16 analog input channels with sampling rates up to 10 kHz. This industrial-grade solution ensures real-time response and exceptional noise immunity for critical automation systems.
Designed for seamless integration with ControlNet and DeviceNet networks, this panel-mount module combines compact dimensions (2.8″ W x 4.7″ H x 1.3″ D) with robust 24V DC power requirements, making it ideal for space-constrained applications requiring high-accuracy signal processing.
Key Features
- • 16-Bit Precision: Ensures ±0.1% accuracy for reliable measurement in process control applications
- • Multi-Protocol Communication: Supports ControlNet and DeviceNet for seamless system integration
- • High-Speed Sampling: 10 kHz update rate enables real-time monitoring of dynamic processes
- • Industrial-Grade Design: Rugged construction withstands harsh industrial environments
- • Compact Form Factor: Space-saving panel mount design (0.5 lbs) for dense control cabinets
| Specification | Technical Details |
|---|---|
| Brand/Model | Allen Bradley 1756-IM16 |
| Power Requirements | 24V DC |
| Input Channels | 16 Differential Voltage Inputs |
| Sampling Rate | Up to 10 kHz per channel |
| Communication | ControlNet/DeviceNet |
| Operating Temperature | 0°C to 60°C |
Application Fields
Designed for mission-critical applications in manufacturing, process control, and energy sectors, this module excels in:
- Precision monitoring of temperature, pressure, and flow in chemical processing
- High-speed data acquisition for turbine/generator control systems
- Automation solutions in automotive manufacturing and assembly lines
- Condition monitoring for predictive maintenance programs
