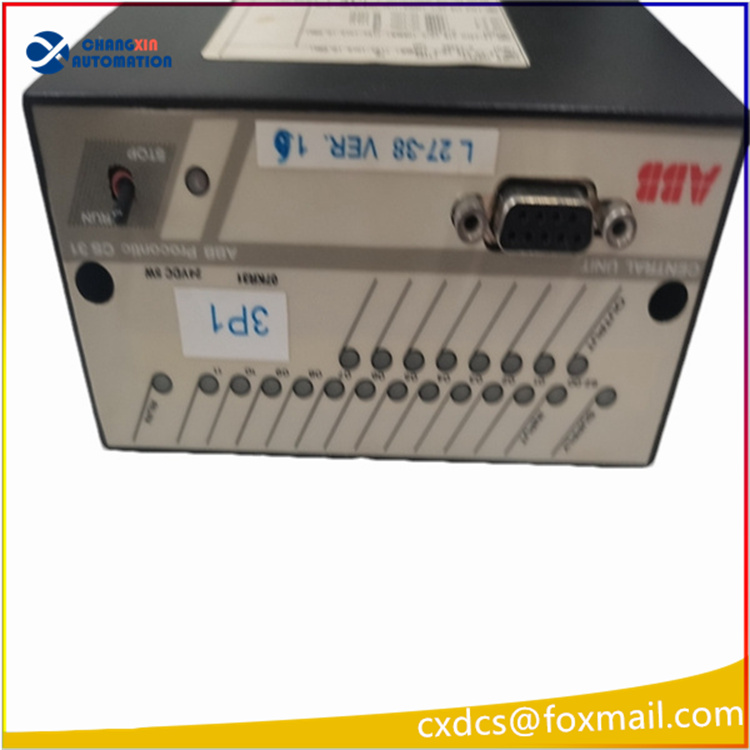

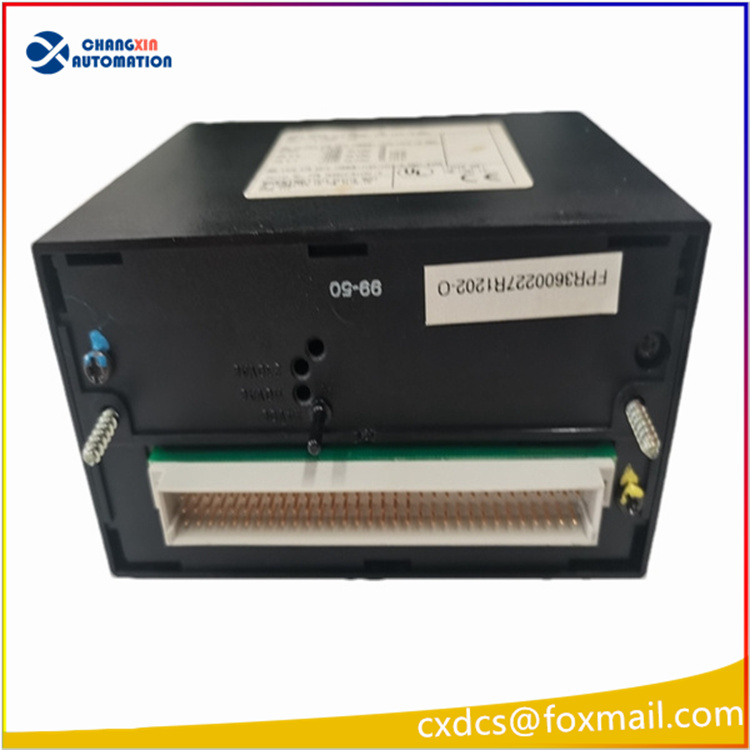

ABB 07KR31 Relay Output Logic Module

The ABB 07KR31 relay output logic module is an industrial automation product manufactured by ABB. It is commonly used in control systems as a core processing unit or logic control module. Here is a detailed analysis of this module:
I. Function Overview
Data Processing: Receives various input signals from the system and processes them to execute control algorithms and perform logical operations.
Control Command Output: The processed data is converted into control signals and sent through the output interface to the actuators in the system, such as motors and valves, to achieve precise control of the process.
Communication Function: Supports communication with other devices or networks, can receive commands from remote monitoring systems, and simultaneously transmits system status information back to the monitoring center.
User Interface: Provides an interface for operators to interact with the control system, allowing users to set parameters, monitor system status, and conduct fault diagnosis.
System Management: Is responsible for self-diagnosis, fault recording, and management of the system to ensure stable and reliable operation.

Technical Features
Modular Design: As a relay output logic module, 07KR31 may adopt a modular design, which facilitates installation, maintenance, and expansion.
High Reliability: The relay output has an electrical isolation feature, enabling it to safely handle high voltages and large currents, and is suitable for industrial environments with high safety requirements.
Flexible Configuration: Different input/output points and logic control functions can be configured according to actual needs to meet diverse application scenarios.

Application scenario
Industrial Automation: In industrial automation scenarios such as production lines and assembly lines, 07KR31 can be used to control the start and stop of motors, as well as the opening and closing of valves and other actuating components.
Energy Management: In the energy sectors such as electricity, oil, and natural gas, it can be used to monitor and control the operating status of energy equipment.
Process Control: In process industries such as chemical engineering and pharmaceuticals, it can be used to achieve complex logical control and sequential control.
