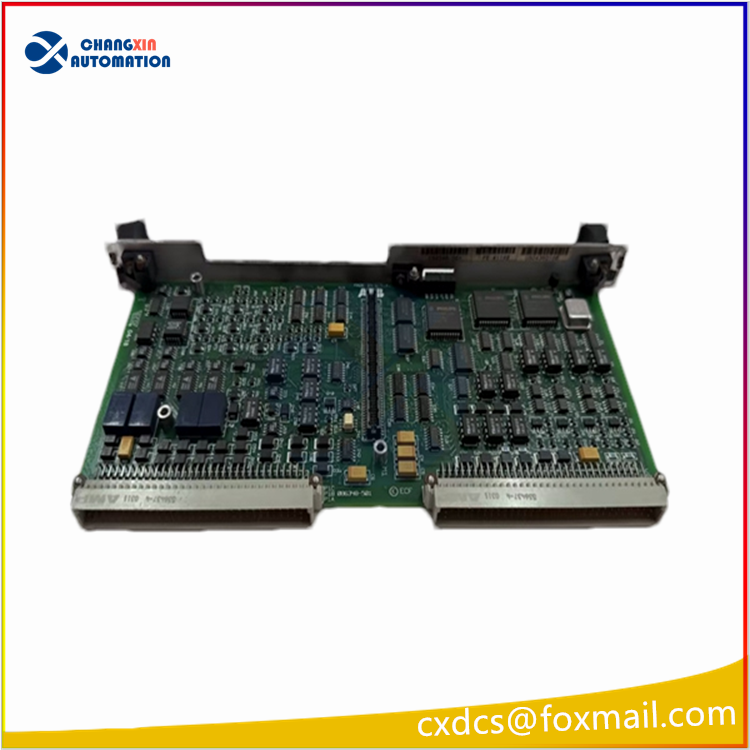

ABB 086348-001 Communication Module

ABB 086348-001 is an industrial communication and control module, featuring high-precision control, support for multiple communication protocols, and robust protection functions. It is widely used in the field of industrial automation. Here is a detailed introduction about this module:

Core Function
High Precision Control: Utilizing V/F closed-loop control, the speed control accuracy can reach ±0.2%, and the low-frequency starting torque can reach up to 200% (at 0.5Hz), suitable for industrial scenarios with high control precision requirements.
Support for Multiple Communication Protocols: Compatible with PROFIBUS-DP, Modbus TCP/IP, etc., facilitating data exchange and integration with various industrial devices.
Strong Protective Function: Equipped with overvoltage, overcurrent, phase loss, and overheating protection functions, ensuring stable operation of the equipment in harsh industrial environments.
Electrical Characteristics
Power Supply and Working Temperature: Supports 24VDC power supply, with a working temperature range of -40℃ to 100℃, capable of adapting to various harsh industrial environments.
Channel Isolation Voltage: Channel isolation voltage is 1500V AC, ensuring electrical isolation between devices and enhancing system safety.
Programming Language Support: Compatible with Ladder Logic, SFC, ST, etc., facilitating program writing and debugging by users.


Application Domains
Industrial Automation: Widely applied in elevators, textiles, machine tools, lifting and transportation, ports, metallurgy, conveyor belts, air conditioning systems, etc., achieving automated control and data communication for equipment.
Special Scenarios: Suitable for offshore platforms, wind farm speed control, emergency braking in logistics sorting centers, potential load control in parking garages, energy-saving renovations of fans/water pumps, etc., in special industrial scenarios.
Robot Control: Compatible with industrial robots such as ABB IRB 2600, supporting servo drive speed closed-loop control and dynamic load adjustment, improving the motion accuracy and response speed of the robots.

Protection and Certification
Protective Coating: Utilizes IEC 60721-3-3 Class 3C3 standard anti-corrosion coating, resistant to salt fog (1000-hour test), anti-H₂S corrosion (≤50ppm), suitable for various process connection forms in chemical, food hygiene, and other fields.
Safety Certification: Certified by UL and SIL2/3 safety certification, ensuring the safety and reliability of the equipment.

Other Features
Hot Swap and Internal Battery Maintenance Function: Supports hot swap and internal battery maintenance functions, facilitating equipment maintenance and replacement by users.
Thickness Gauge Accessories Compatibility: Compatible with tension controllers such as PFBL141B/C, PFSA145A, etc., supporting high-speed paper thickness monitoring, metal foil thickness measurement (accuracy ±0.01mm), meeting specific industrial measurement requirements.
