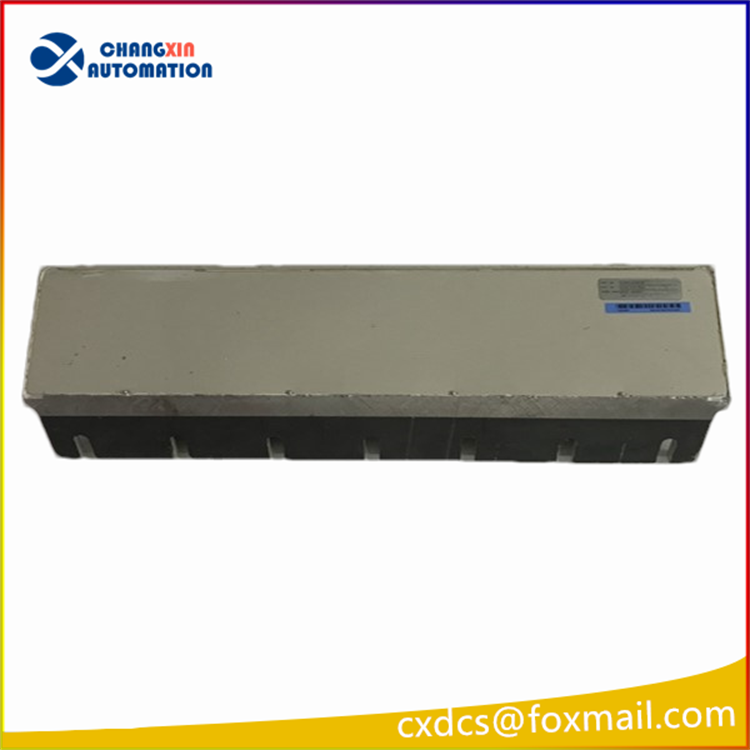

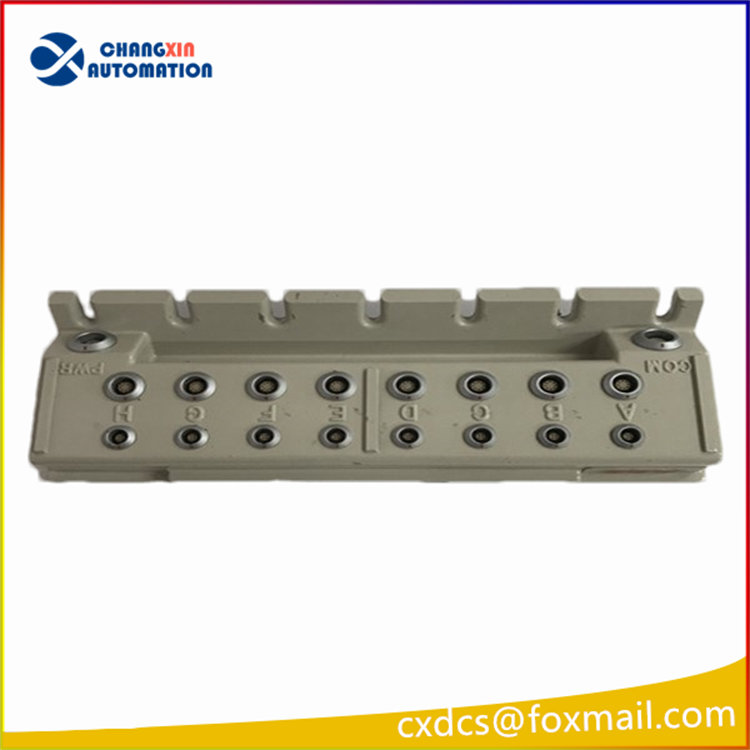

ABB 129740-002 Interface Module

ABB 129740-002 is a powerful intelligent interface module. Here is a detailed introduction to it:
I. Basic Functions
Signal Conversion: This module can convert analog signals into digital signals and vice versa. This feature makes it highly important in industrial applications, especially in process control, manufacturing, and automation fields.
Digital Input/Output: The module has 16 digital inputs and 16 digital outputs, capable of communicating with PLC (Programmable Logic Controller) through a high-speed serial communication link.
Signal Regulation: It can amplify, filter, convert, and regulate the input signals to meet specific signal processing requirements.

Technical Specifications
Input Type: Supports various input types such as voltage, current, and digital signals.
Output Capacity: The digital output can switch a load of up to 2A, while the input can handle signals ranging from 0 to 30VDC.
Communication Interface: Provides a serial communication interface and supports multiple communication protocols, such as RS-232, RS-485, etc., facilitating data exchange with other devices.
Physical Parameters: Dimensions are 170mm x 105mm x 32mm, and the weight is approximately 120g.
Power Supply Parameters: Input voltage range is 12-48VDC, output voltage is 5VDC, maximum output current is 10A, and efficiency is greater than 90%.

Application scenarios
Industrial automation: In industrial automation systems, this module can serve as an expansion module for PLCs, used to process analog signals from sensors and convert them into digital signals for controller processing. At the same time, it can also convert the digital output signals from the controller into analog signals to drive actuators.
Process control: In the field of process control, this module can be used to monitor and control various process parameters, such as temperature, pressure, and flow.
Manufacturing and automation: In the manufacturing and automation field, this module can be used to achieve precise control and data collection, improving production efficiency and product quality.
Product advantages
High integration: This module integrates the processing functions of analog and digital signals, reducing the complexity and cost of the system.
Flexible configuration: Users can change the default settings of the program according to their needs to meet specific application requirements.
Reliable operation: This module provides isolation between input and output to ensure reliable operation in industrial environments. At the same time, it also has built-in diagnostic and monitoring functions that can be used for troubleshooting and optimizing system performance.
