ABB 1TGE120011R1001 is an industrial control module, mainly used in scenarios such as robot systems, motor and feeder control units, etc. It features high reliability, compatibility and scalability. The following is an introduction to this module:
I. Product Overview

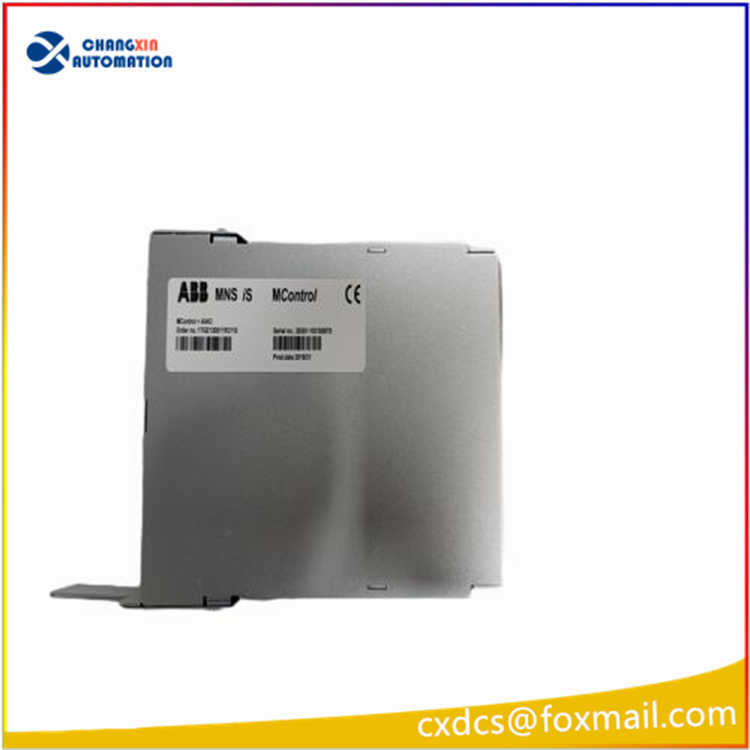

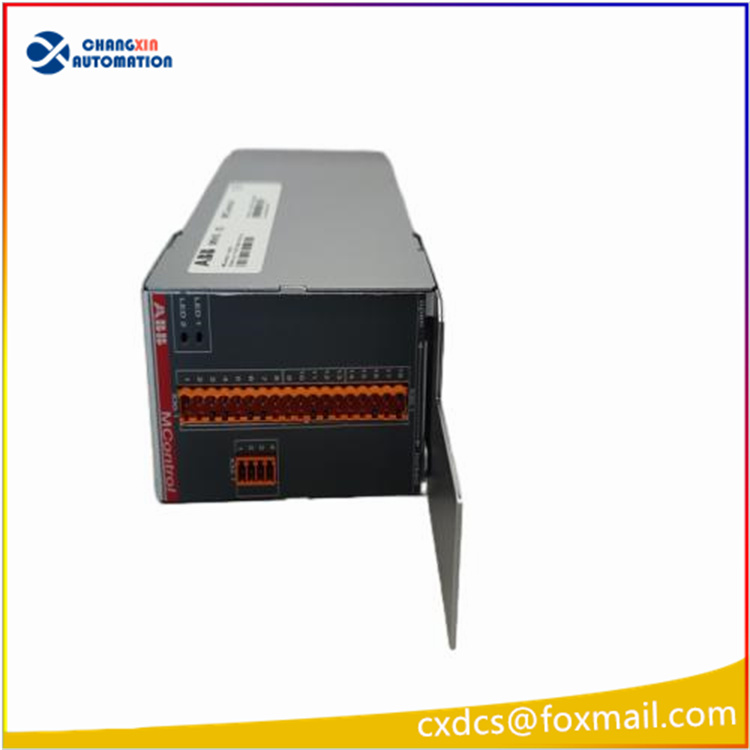

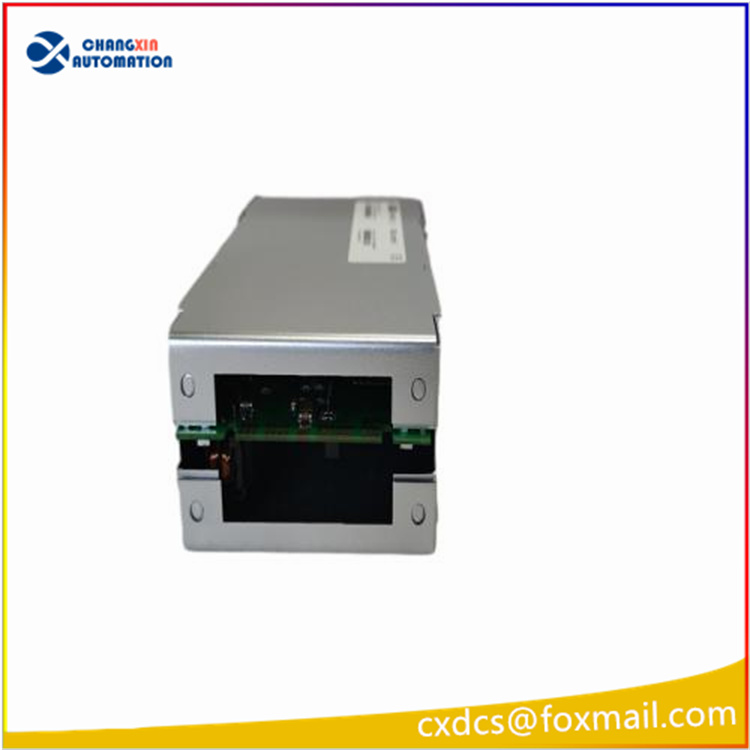

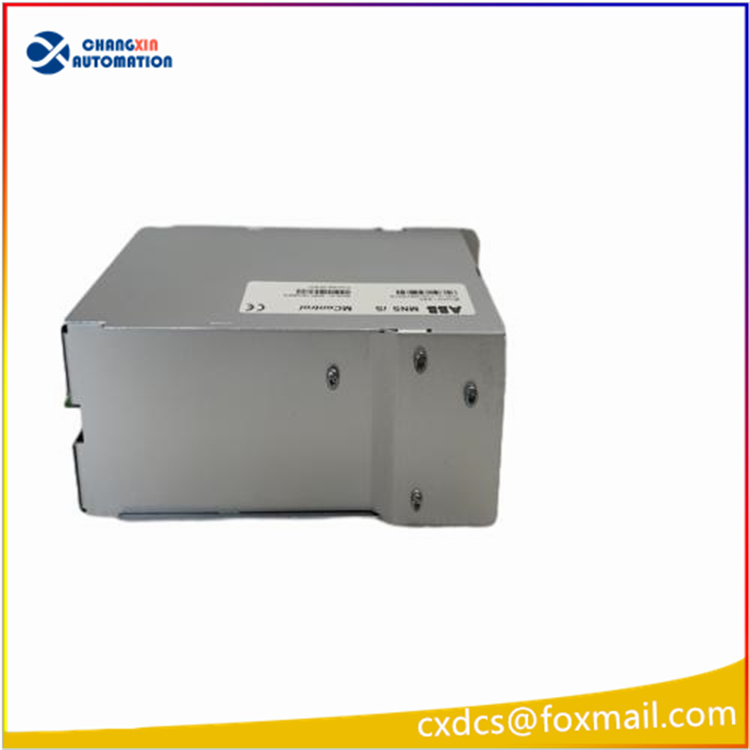

Brand and Model: ABB 1TGE120011R1001
Type: Industrial control module, specifically applicable to robot systems, motor and feeder control units, etc.
Design Features: This module integrates advanced control technology and reliable performance, providing an efficient and stable control solution for motors and feeders.
Main features
High reliability:
Utilizing high-quality electronic components and materials, and undergoing strict testing and verification, it ensures high reliability and stability in harsh industrial environments.
It has overload protection and short-circuit protection functions, which can automatically cut off the power supply in abnormal situations to prevent damage to the system and equipment.
Compatibility and scalability:
It can be seamlessly connected with various robot controllers and sensors to achieve data sharing and collaborative work.
Supports multiple power input methods, facilitating users to make selections and configurations according to actual circumstances.
In systems such as ABB’s AC800M controller, its functions can be expanded by adding communication modules or I/O modules.
Easy installation and maintenance:
It adopts a rail installation method, making it convenient for users to install and disassemble.
Detailed installation and operation guidelines are provided to help users correctly connect power and signal lines, avoiding faults and damages caused by incorrect operations.
Users need to regularly check and maintain the power module to ensure it is in good working condition.
Technical Specifications (Part)
Operating Voltage: DC24V (This may vary depending on the application scenario and configuration)
Output Capacity: DC24V/1A (Total of the two output capacities)
Output Control Mode: Pulse and Level (Passive contact output of relay normally open/normally closed)
Protection Functions: Short Circuit, Overload, and Reverse Polarity Protection
Operating Temperature Range: -10°C to +55°C (This may vary depending on the product model and configuration)
Relative Humidity: ≤95% (No condensation)
Dimensions: Different sources provide slightly different dimensions, but generally ranging from 53mm×125mm×210mm to 53mm×125mm×260mm.
Weight: Approximately 0.55 kilograms to 0.7 kilograms (This may vary depending on the product model and configuration)
Application scenario
Robot System:
As the power supply module for the robot, it provides stable and efficient power support for the robot system.
Ensures the normal operation of the robot in various complex application scenarios.
Motor and Feeder Control Unit:
Used in modular power distribution systems such as MNS, it realizes precise control of motors and feeders.
Improves the efficiency and stability of power distribution.
Industrial Automation Control System:
As a component of systems such as ABB AC800M controller, it realizes industrial automation control.
Supports multiple communication protocols and interfaces, facilitating integration with other devices and systems.
