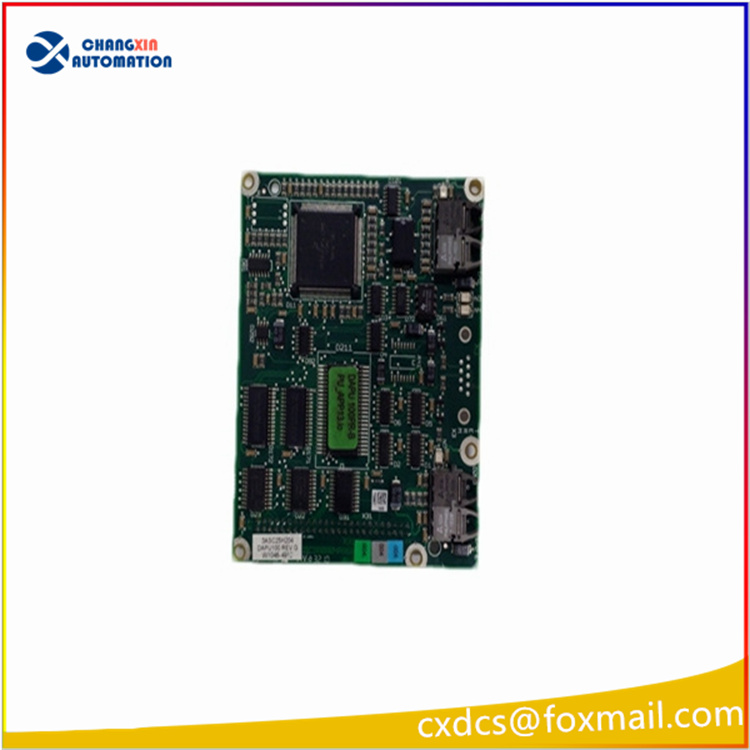

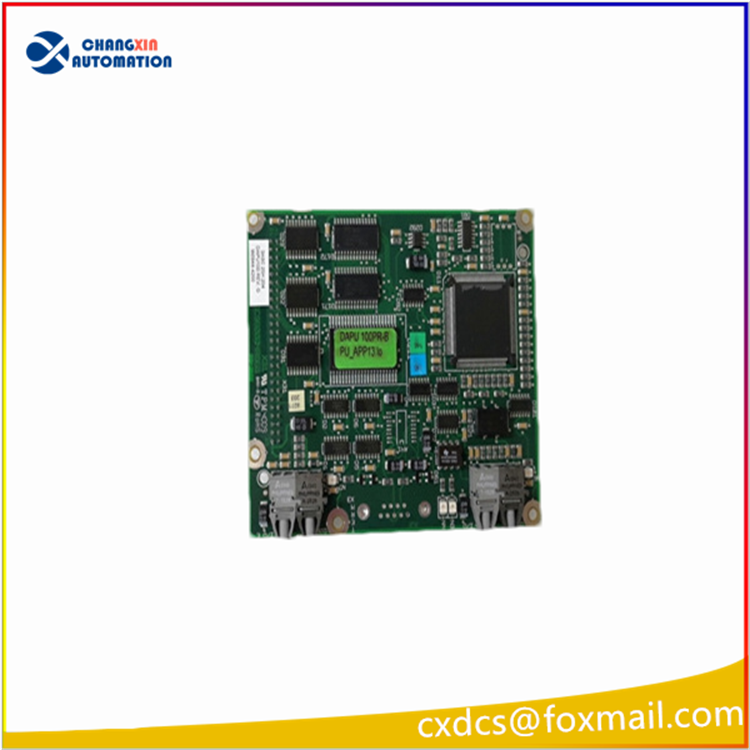

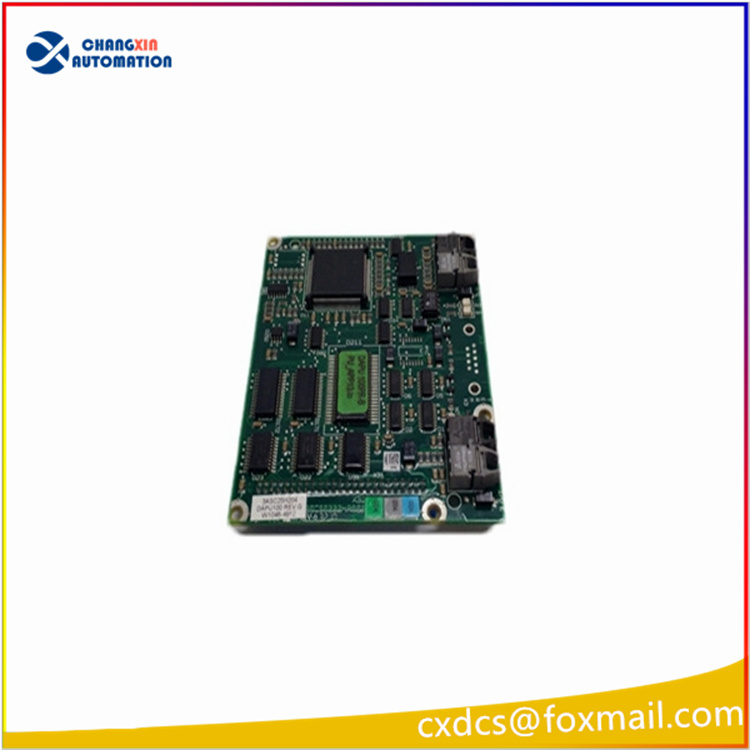

ABB 3ASC25H204 DAPU100 is a high-performance digital flow counting module, specially designed for industrial automation. It features core functions such as signal processing, equipment monitoring, interlock control, and data interaction, and is suitable for fluid flow monitoring and process optimization in complex industrial scenarios. Here is a detailed introduction of it:
Core function
Digital flow metering:
It can receive signals from sensors or flow meters and convert them into digital form for processing and display.
It is suitable for industrial automation processes that require monitoring and controlling fluid flow.
Signal processing and equipment monitoring:
It undertakes the task of processing digital input/output signals, can monitor the equipment status and trigger interlock control.
It optimizes system operation efficiency through real-time data interaction.
Compatibility and integration:
It supports mainstream industrial communication protocols such as Profinet and Modbus RTU, and can be seamlessly integrated into ABB AC 800M controller, System 800xA automation platform, and third-party industrial control devices.
The modular design allows it to work in coordination with various I/O expansion modules and communication adapters, and is flexible to adapt to different application requirements.
Technical Specifications
Operating Voltage: 24VDC wide-range compatibility (19.2 – 28.8VDC), suitable for complex power supply environments.
Operating Temperature: -20℃ to 60℃, meeting requirements for extreme temperature conditions (both high and low temperatures).
Storage Temperature: -40℃ to 85℃, ensuring long-term reliability of the equipment.
Protection Grade: IP20 (installed in the cabinet), compliant with industrial environment protection standards.
Input/Output Channels: 16 independent digital inputs + 16 independent digital outputs, supporting simultaneous control of multiple devices.
Input Signal Types: Compatible with dry contacts, wet contacts, and TTL levels, suitable for different sensor interfaces.
Output Signal Types: Transistor output (NPN), maximum 1A output current per channel, capable of directly driving small relays and other actuating elements.
Communication Protocols: Profinet, Modbus RTU, EtherNet/IP, supporting high-speed data transmission (up to 100Mbps).
Power Consumption: Typical 8W, maximum 12W, low-power design reduces system energy consumption.
Application scenario
Industrial Manufacturing:
In automated production lines for automotive manufacturing, electronic equipment production, etc., precise control of the production process is implemented to enhance efficiency and product quality.
Energy Management:
Used in energy sectors such as electricity, petroleum, and chemicals, it monitors and controls the processes of energy production, transmission, and distribution, achieving efficient utilization and stable system operation.
Process Industry:
In process industries such as metallurgy, papermaking, and textiles, process parameters are optimized to reduce energy consumption and increase production efficiency.
Intelligent Manufacturing:
As a key component of Industrial Internet of Things (IIoT), it supports equipment condition monitoring, predictive maintenance, and data analysis, promoting intelligent transformation.
