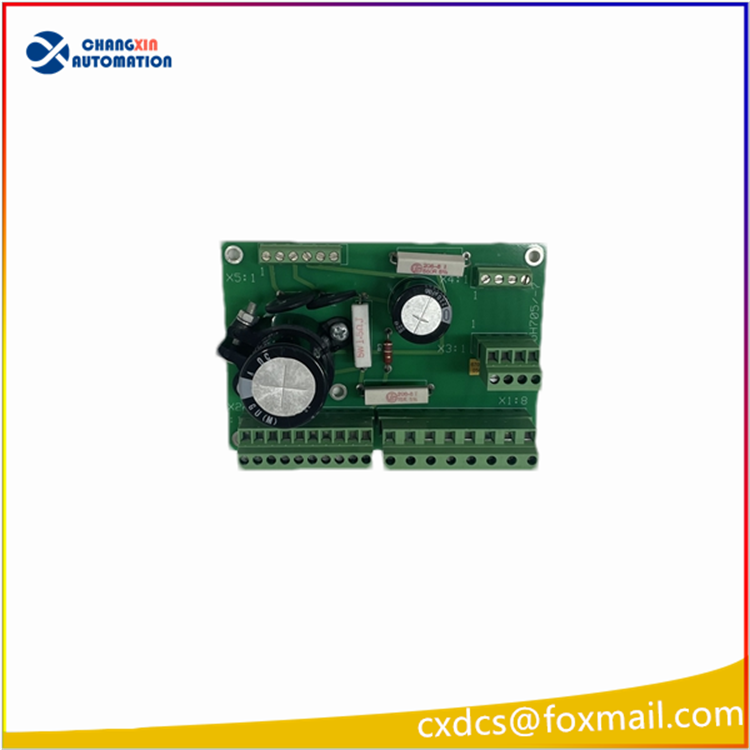

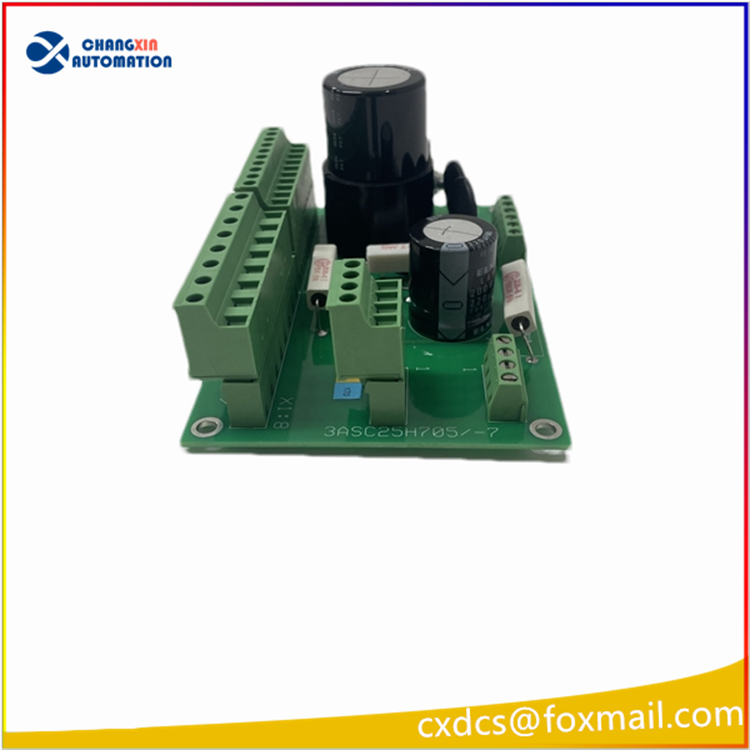

ABB 3ASC25H705 Communication Card -7 for Industrial Automation

Product Description of ABB 3ASC25H705 Communication Card

Product Overview:
The ABB 3ASC25H705 Communication Card is a digital communication module specifically designed for industrial automation. It offers high performance, high reliability, and flexible expansion capabilities. Supporting multiple communication protocols, it seamlessly integrates into ABB’s automation systems while remaining compatible with devices from other brands, making it a key component in industrial control networks.

Specific Parameters:

• Product Type: Digital Communication Module
• Input/Output Channels: 25 inputs / 25 outputs
• Operating Voltage: Supports DC 9 to 24V input, with some sources indicating support for 220V AC ±10% or 24VDC
• Signal Frequency: 30kHz (adjustable)
• Communication Protocols: PROFIBUS DP (supported by some models), along with IEEE 802.3, 802.3u, 802.3x Ethernet standards
• Operating Temperature Range: -25°C to +60°C (some sources indicate up to -40°C to +85°C)
• Storage Temperature Range: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Weight: Approximately 0.14kg
• Protection Features: Double diode anti-reverse connection, thyristor protection to prevent electrical faults and reverse polarity issues

Application Areas:

• Petrochemical Industry: Used for monitoring and controlling various equipment in the production process to ensure safety and efficiency.
• Power Industry: Enables remote monitoring and fault diagnosis of equipment in power generation, transmission, and distribution.
• Steel Industry: Optimizes production processes to improve product quality and production efficiency.
• Marine and Transportation: Utilized in ship power systems and traffic signal control to enhance operational stability and safety.
• New Energy and Wind Power: Supports the monitoring and management of renewable energy equipment, promoting the development of green energy.

Summary and Analysis:
The ABB 3ASC25H705 Communication Card excels in the field of industrial automation with its powerful communication capabilities, broad compatibility, and stable performance. It not only meets the communication needs of complex industrial environments but also adapts to projects of different scales and types through flexible configuration and expansion. Its high reliability and protection features ensure long-term stable operation of the equipment in harsh environments, reducing maintenance costs. Additionally, the module supports multiple communication protocols and Ethernet standards, facilitating seamless integration with modern industrial networks and driving the digital transformation of industrial automation systems.
