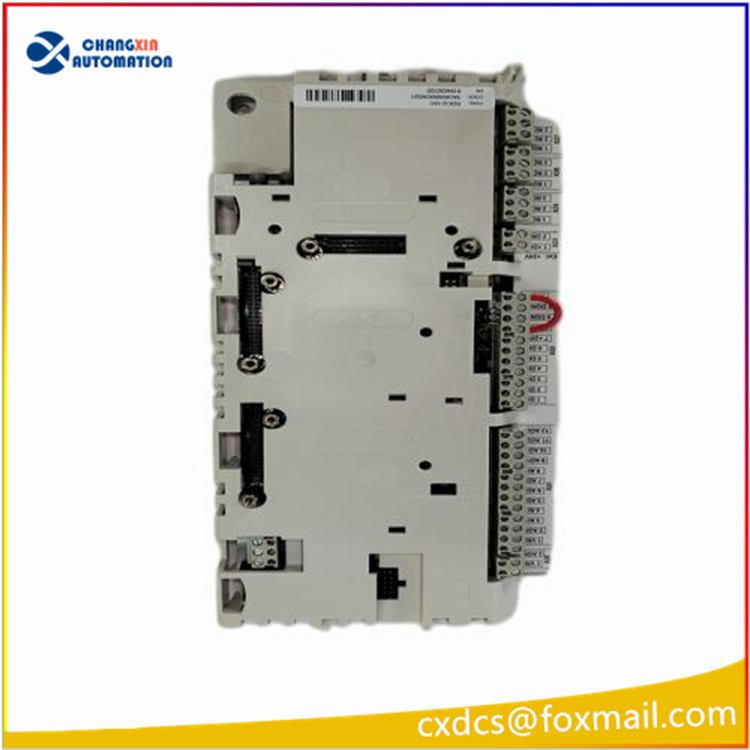

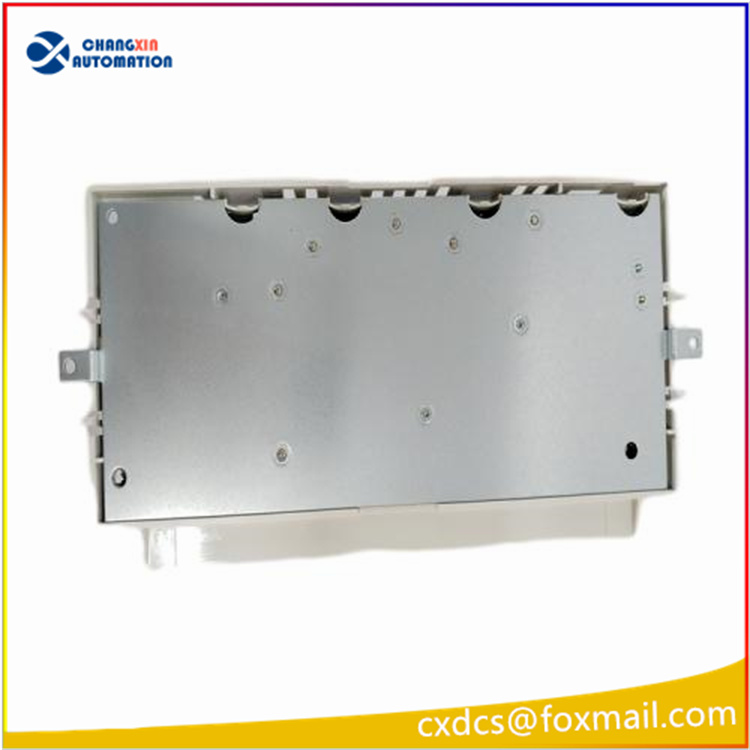

ABB 3AUA0000036521 RDCU-12C is a high-performance drive control unit, mainly used in ABB ACS800 and ACS880 medium and low-voltage industrial frequency converters. Here is a detailed introduction about this product:
I. Product Functions
Motor Control:
Supports Direct Torque Control (DTC) technology, enabling high dynamic response torque and speed control even without encoders. The torque response time is less than 2 milliseconds.
Provides high-precision motor control, suitable for loads with high dynamic performance requirements, such as mine hoists, steel rolling machines, etc.
System Communication:
Integrates multiple communication interfaces, supporting mainstream industrial bus protocols such as Profibus, Modbus, EtherNet/IP, PROFINET, CANopen, etc.
With an additional communication adapter, it can be easily integrated into the automation system to achieve real-time data exchange with the upper computer or other devices.
Parameter Management and Fault Diagnosis:
Provides comprehensive parameter management functions, supporting parameter backup and restoration, facilitating users to copy configurations between different devices.
Built-in fault diagnosis function, capable of real-time monitoring of motor status, load trends, and drive health, supporting event log storage, enabling users to quickly locate and solve problems.
Product Features
Modular Design:
The RDCU-12C adopts a plug-in intelligent control board design, facilitating maintenance and upgrades. In case of a control board failure, users can quickly replace the new control board, reducing downtime and enhancing equipment availability.
High-performance Processing:
Integrated with a high-performance main control processor, it operates at a fast speed and enables one-to-one redundant peer-to-peer communication, ensuring the stability and reliability of the system.
Supports multiple control languages, such as function codes, C language, Basic Batch90, Ladder, etc., facilitating users to program and control according to their actual needs.
High Compatibility:
Suitable for ABB ACS800 and ACS880 series inverters, it can be used in conjunction with various types of inverters to meet the requirements of different industrial scenarios.
Supports Harmony Block and Rack I/O systems, providing a new redundant interface HNER with high fault tolerance for Blocks, occupying only a single slot, thereby enhancing the scalability and flexibility of the system.
Application scenarios
High dynamic load control:
For high dynamic load applications such as mine hoists and steel rolling machines, closed-loop control of the equipment requires fast torque response and precise speed control capabilities. The high-performance DTC control algorithm of RDCU-12C can meet these requirements, ensuring the stable operation of the equipment.
Multi-pump coordination control:
In the constant pressure water supply system of water plants, multiple pumps need to operate in coordination to achieve a constant water pressure output. RDCU-12C supports multi-pump control macros, which can conveniently implement the coordinated control of multiple pumps and improve the efficiency and reliability of the system.
Tension and synchronization control:
In industries such as papermaking and textile, precise control of material tension is required to ensure product quality. RDCU-12C can be used in conjunction with tension sensors to achieve closed-loop tension control. At the same time, it also supports synchronization control functions, ensuring the synchronized operation of multiple devices.
