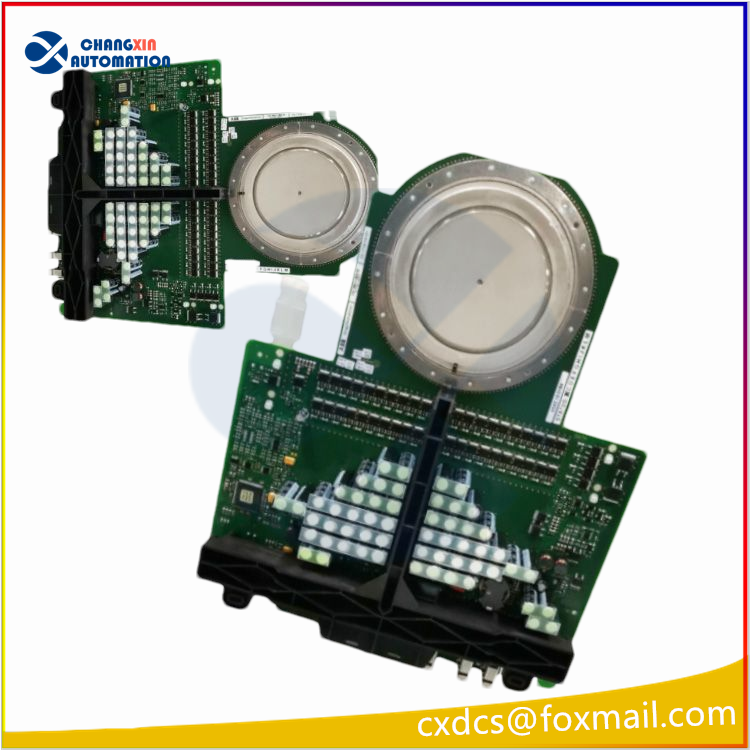

ABB 3BHB003387R0101 3BHL000385P0101 5SHX0845F0001 IGBT Module

Product description
Overview
The ABB 3BHB003387R0101 3BHL000385P0101 5SHX0845F0001 is an Insulated Gate Bipolar Transistor (IGCT) module designed specifically for high-voltage, megawatt applications. It combines robust construction with integrated control features to ensure reliable performance in demanding industrial environments.
Key Features:
• High Current Handling: Capable of delivering up to 1150A of continuous current, suitable for efficient operation in heavy-duty industrial settings.
• Robust Construction: Designed to withstand harsh operating conditions, ensuring durability and longevity in extreme environments.
• Integrated Gate Drive: Includes a dedicated gate drive circuit within the module, simplifying system design and reducing installation costs.
• Compact Design: Optimizes space utilization within control cabinets, maximizing efficiency and flexibility in layout.
• Advanced Protection Features: Incorporates comprehensive protection mechanisms to safeguard the system against faults and overloads.

Applications:
The ABB 3BHB003387R0101 3BHL000385P0101 5SHX0845F0001 IGCT module is suitable for various high-power industrial applications, including:
• Megawatt Drives: Control of large motors and generators in industries such as traction, mining, and renewable energy systems.
• High-Voltage Converters: Used in power conversion applications within transmission and distribution systems, including static VAR compensators (SVCs) and HVDC converters.
• Industrial Automation: Applied in industrial automation systems for controlling pumps, fans, and other high-power machinery.

The ABB 5SHX0845F0001 thyristor module is a specialized component designed for use in high voltage inverter systems. It incorporates IGCT (Integrated Gate Commutated Thyristor) technology, which allows for maximal loadability in combination with minimal part count. This technology is particularly suited for applications requiring high efficiency and reliability under demanding conditions.

The ABB 3BHB003387R0101 3BHL000385P0101 5SHX0845F0001 thyristor module is a sophisticated component designed for high voltage inverter applications, leveraging IGCT technology for enhanced performance. Its versatility and efficiency make it suitable for a wide range of power electronic applications, from renewable energy systems to industrial motor drives. When integrating this module into a system, it’s important to consider its operational parameters, including voltage levels, temperature ranges, and the specific requirements of the application it’s intended for.

Brand：ABB

Model：5SHX0845F0001

Part No：3BHB003387R0101 3BHL000385P0101

Product Name：Silicon controlled，IGCT Module

• Application: The module is often used in high voltage inverter systems, specifically within the ACS 6000 series for power exciter control. It supports both AC and DC supply voltages, making it versatile for various applications.
• Technology: Utilizes IGCT technology, offering advantages such as high switching speeds and low conduction losses, which are crucial for efficient power conversion in high voltage applications.
• Design Features: It is optimized for operation at medium frequencies (<1 kHz) and wide temperature ranges, indicating robustness and flexibility in its operational environment.
• Configuration: Can be integrated as a Power Electronic Building Block (PEBB), serving as one phase leg of a three-level Voltage Source Inverter (VSI) topology. This configuration allows it to function as either an AC to DC or DC to AC converter, providing flexibility in system design and application.
