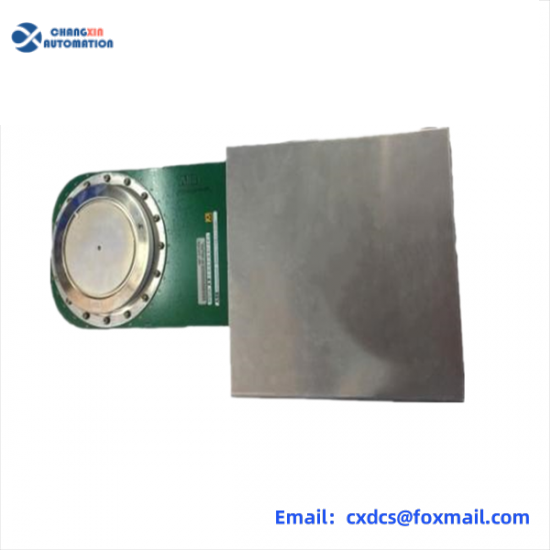

ABB 3BHB004692R001 IGCT Module – Industrial Power Control Excellence
Core Summary
The ABB 3BHB004692R001 IGCT Module delivers cutting-edge power control for demanding industrial applications. Engineered with advanced silicon carbide technology, this module ensures exceptional efficiency in high-power environments while maintaining compact dimensions for versatile installation options.
Key Features
- High-Voltage Performance: 3000V DC rating enables robust operation in medium-voltage applications
- Advanced Cooling System: Air-cooled design with Class F insulation (155°C) for thermal reliability
- Compact Footprint: Space-saving 100x150x100mm dimensions (2.5kg) for easy integration
- High-Frequency Switching: 60kHz operating frequency improves power conversion efficiency
- Digital Control Interface: Seamless compatibility with PLC and DCS systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 3000 V DC |
| Max Current | 1000 A |
| Switching Frequency | 60 kHz |
| Cooling Method | Forced Air Cooling |
| Communication | CANbus/Modbus RTU |
Application Fields
This high-performance module is specifically designed for critical power management systems in:
- Industrial motor drives for steel mills and mining equipment
- Renewable energy systems (wind turbine converters, solar inverters)
- Railway traction systems and electric vehicle charging infrastructure
- Grid energy storage solutions and smart grid applications
