ABB 3BHB005171R0101 5SHY3545L0002 (IGBT) module

Product description
Overview

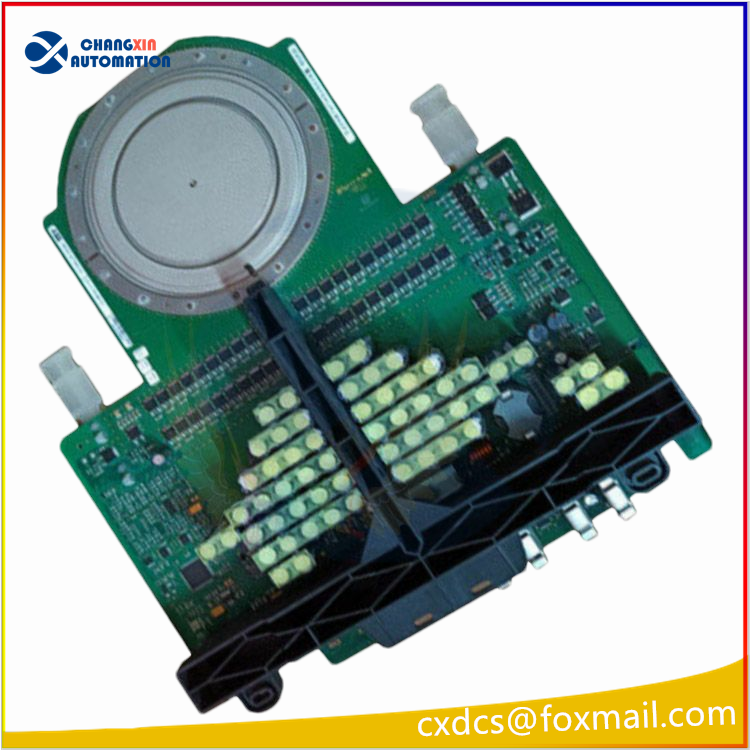

The ABB 3BHB005171R0101 3BHL000986P3105 5SHY3545L0002 is a high-voltage, high-power Insulated Gate Bipolar Transistor (IGBT) module from ABB’s Advant OCS series. It is engineered for robust performance and reliability, catering to demanding industrial applications where efficiency and durability are paramount.
Key Features:
• High current handling: Capable of managing currents up to 1150A, ensuring robust power output suitable for high-demand applications.
• High voltage: Rated for a voltage of 12 kV, making it versatile for a wide range of high-voltage applications.
• Fast switching frequency: Operates at a switching frequency of 2 kHz, enabling swift response times in applications requiring rapid switching.
• Rugged construction: Built to withstand harsh environmental conditions and demanding operational settings.
• Integrated gate driver: Includes an integrated gate driver, simplifying installation and reducing system complexity.
• Compact size: Housed in a compact package, optimizing space utilization within control cabinets.
Applications:
The ABB 3BHB005171R0101 3BHL000986P3105 5SHY3545L0002 IGBT module finds extensive use in various industrial applications, including:
• Megawatt drives: Ideal for powering megawatt drives in industries such as mills, mines, and compressors.
• High-voltage converters: Used in high-voltage conversion applications for power transmission and distribution.
• Grid infrastructure: Reliable and efficient, suitable for integration into grid infrastructure such as substations and renewable energy systems.
• Heavy industry automation: Durable and rugged design makes it suitable for harsh industrial environments like steel mills and paper mills.

The items you’ve listed—ABB 3BHE022333R0101 and 5SHX0660R0002—are likely related to ABB’s high-voltage power electronics components, specifically for applications like HVDC (High-Voltage Direct Current) transmission, STATCOM (Static Synchronous Compensator), or industrial motor drives. Here’s a breakdown:

1. ABB 3BHE022333R0101

• Type: This appears to be a part number or module identifier for an ABB control or interface board.
• Possible Function:
  • Part of ABB’s MACH (Modular Advanced Control for HVDC) or UNITROL (excitation systems) platforms.
  • Could be a control board, communication module, or power supply unit for a converter or inverter system.
• Context: Used in ABB’s HVDC, FACTS (Flexible AC Transmission Systems), or medium-voltage drives.

2. 5SHX0660R0002

• Type: This is a thyristor or IGBT module (likely an IGBT press-pack module).
• Key Specs:
  • 5SHX series: ABB’s high-power semiconductor modules for HVDC/STATCOM.
  • 0660: Likely indicates voltage/current rating (e.g., 6.5 kV, 600 A or similar).
  • R0002: Revision or variant code.
• Function: Used in the power conversion stage of HVDC converters, STATCOMs, or large industrial drives.

Common Applications

• HVDC Transmission: For converting AC to DC and vice versa.
• STATCOM: Reactive power compensation for grid stability.
• Industrial Drives: High-power motor control in sectors like mining, oil & gas, or renewables.
