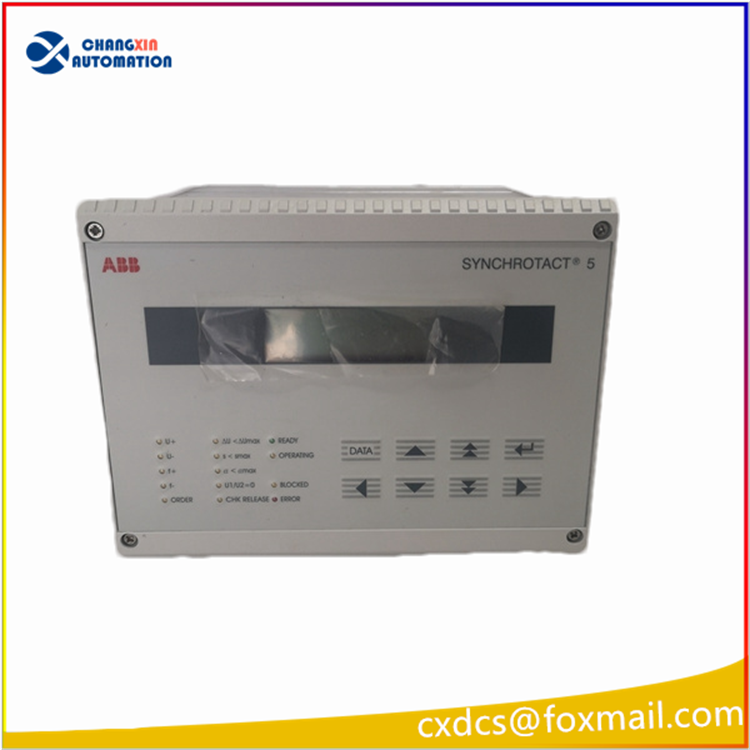

ABB 3BHB006716R0277(SYN 5302a-Z.V277) is an automatic synchronizer module used for the grid connection of power system generators. It features high-precision synchronization measurement, multiple protections, and flexible communication interfaces, and is suitable for scenarios such as power plants and industrial grids. Here is the detailed introduction:
I. Product Positioning and Core Functions
Synchronous Control Core
As part of the SYCHROTACT 5 series automatic synchronizer, this module is specifically designed for the safe grid connection of generators with the power grid or bus. By continuously monitoring the frequency, phase, and voltage of the power source, it ensures the accuracy and safety of the synchronization operation.
Key Functions
High-precision Synchronization Measurement: Real-time monitoring of power parameters to ensure that the grid connection conditions meet safety standards.
Automatic Control and Protection: Automatically executes the grid connection process, reducing human intervention; equipped with overvoltage, undervoltage, overfrequency, and underfrequency protection functions to prevent equipment damage.
Flexible Communication Interface: Supports industrial protocols such as Modbus and IEC 61850, and enables remote monitoring and data transmission via RS-485 and Ethernet.
Compatibility and Adaptability: Suitable for different types of generators (synchronous/ asynchronous) and power system architectures, supporting manual/automatic dual-mode operation.
Technical parameters and hardware features
Input/Output interfaces
Input: Multiple voltage and frequency signals for real-time monitoring of power supply status.
Output: Synchronization signals, control signals, alarm signals, used to drive circuit breakers or other actuators.
Electrical parameters
Working voltage: Usually 24VDC (powered through the motherboard or backplane).
Communication protocol: Supports ABB DriveBus, PROFIBUS, Modbus, CAN, etc. (depending on configuration).
Signal types: Digital input/output (DI/DO), analog input/output (AI/AO).
Environmental adaptability
Operating temperature: Supports a wide temperature range of -10°C to 70°C, suitable for harsh industrial environments.
Protection level: IP20 (applicable for indoor industrial environments).
Modular design
Size: 13.6cm × 13.6cm × 10.6cm, supports embedded installation.
Weight: Approximately 1.5kg, facilitating integration and maintenance.
Application scenarios and advantages
Grid connection for power plants
Used for synchronous generators and the grid, ensuring safe and precise grid connection operations, and enhancing power generation efficiency and stability.
Industrial grid synchronization
In distributed energy systems, achieving parallel connection of multiple power sources and load transfer, enhancing grid flexibility.
Backup power switching
Supporting rapid and reliable switching of industrial backup power, ensuring continuous power supply for critical loads.
Core advantages
High reliability: Industrial-grade components and redundant design, supporting long-term stable operation.
Real-time response: Quickly processing external signal changes, ensuring dynamic stability of the system.
Seamless integration: Compatible with ABB’s mainstream automation systems (such as ACS600/800 series), reducing integration costs.
