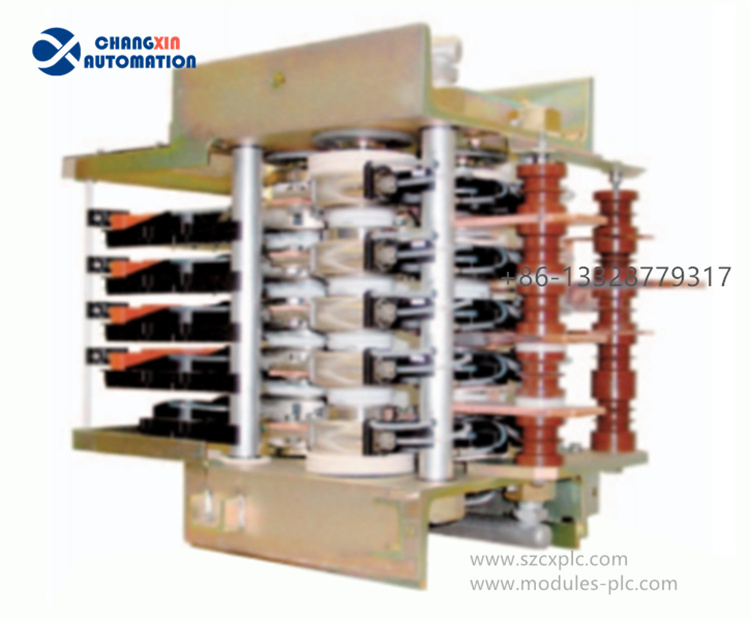

ABB 3BHB009885R5311 S-093N PCS6000 Power Supply System Phase Module

Analysis of the Phase Module of the ABB 3BHB009885R5311 S-093N PCS6000 Power System
I. Product Positioning and Core Functions
The S-093N 3BHB009885R5311 (or similar models such as 3BHB009885R0021) is the core phase control module of the ABB PCS6000 medium-voltage variable frequency and power conversion system, specifically designed for high-voltage and high-power application scenarios. Its core functions include:
Phase Synchronization Control
Through multi-channel synchronous sampling technology, strict phase synchronization of motor groups is achieved, avoiding harmonic surges and motor overheating. For instance, in the drive system of rolling mills, it ensures consistent output torque of multiple motors, enhancing the quality of rolling.
Dynamic compensation algorithms support rapid response to sudden load changes, reducing current surges by over 40% and narrowing the grid fluctuation range to ±5%.
Energy Optimization and Recovery
Supports a common DC bus architecture to enable energy circulation among multiple motors. For example, in the rewinder production line of a paper mill, this module achieves a braking energy recovery efficiency of 92%, saving over one million kilowatt-hours of electricity annually.
Compatible with Active Rectifier Units (ARU), regenerative energy is fed back to the grid, reducing carbon emissions.
High Reliability Design
Adopts a dual-processor redundant architecture with logical separation of the primary and backup units. In case of a failure of the main processor, seamless switching occurs to ensure continuous system operation.
The module supports hot swapping, allowing replacement without power interruption, reducing maintenance time from several hours to within 20 minutes.

Technical Architecture and Performance Parameters
Hardware Configuration
Processor: Equipped with high-performance microprocessors (such as PowerPC architecture), with a main frequency of 500MHz to 1.2GHz, and 256MB to 512MB of memory, the data processing speed is increased by 35%.
Communication Interface: Supports industrial protocols such as PROFIBUS DP and Modbus TCP/IP, compatible with ABB 800xA and AC 800M control systems, and can be interconnected with third-party devices.
Environmental Adaptability: Operating temperature range -10°C to +40°C (storage -20°C to +60°C), certified with IP20 protection level, suitable for harsh environments such as humidity and vibration.
Electrical Parameters
Adapted Power Range: 4MW to 120MVA, rated voltage 3.3kV, suitable for medium-voltage systems.
Input Requirements: Three-phase AC 230/400VAC 50/60Hz (specific voltage needs to be confirmed with the supplier).
Physical Dimensions: Weight approximately 173KG (may vary slightly depending on the model), compact structure, easy to integrate.

The S-093N module is typically used in high-performance control systems, particularly suitable for:

High voltage AC drives

Special purpose drives

Industrial automation applications

DC to AC and AC to DC conversion

S-073N 3BHB009884R0021 Phase Module in ACS6000 System

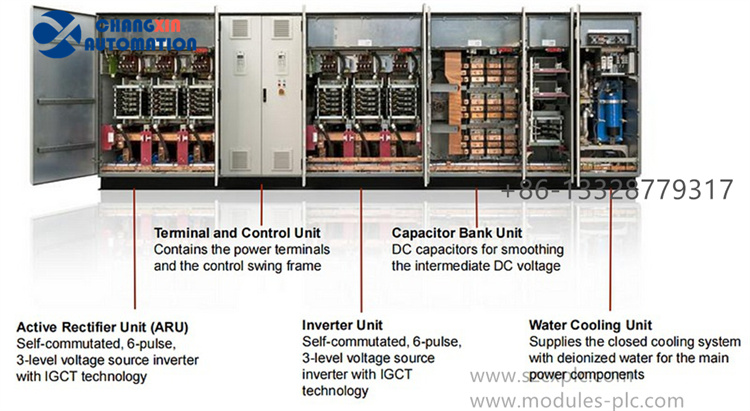

ABB ACS 6000 Medium voltage AC drive Application scenarios and industry value The field of renewable energy
Wind power generation: PCS6000 serves as the core control unit, directly connecting to high-voltage generators, eliminating the need for gearboxes and low-voltage cables, enhancing efficiency and reducing losses. Its compact design and low-voltage ride-through capability make it an ideal choice for multi-megawatt wind turbines.
Solar inverter: Supports high power density design, achieving efficient power conversion in photovoltaic power stations.
Industrial automation
Heavy-duty equipment such as rolling mills and crushers: Through phase synchronization control, it ensures consistent output torque among multiple motors, preventing equipment overload or vibration.
Chemical and mining processes: Controls pumps, compressors, and other equipment to maintain the stability and efficiency of the production process. rail traffic
Railway phase supply: Supports high power density design, meets the phase control requirements of metro and light rail traction motors, and achieves efficient operation and maximum power point tracking (MPPT).
