Product description
Overview

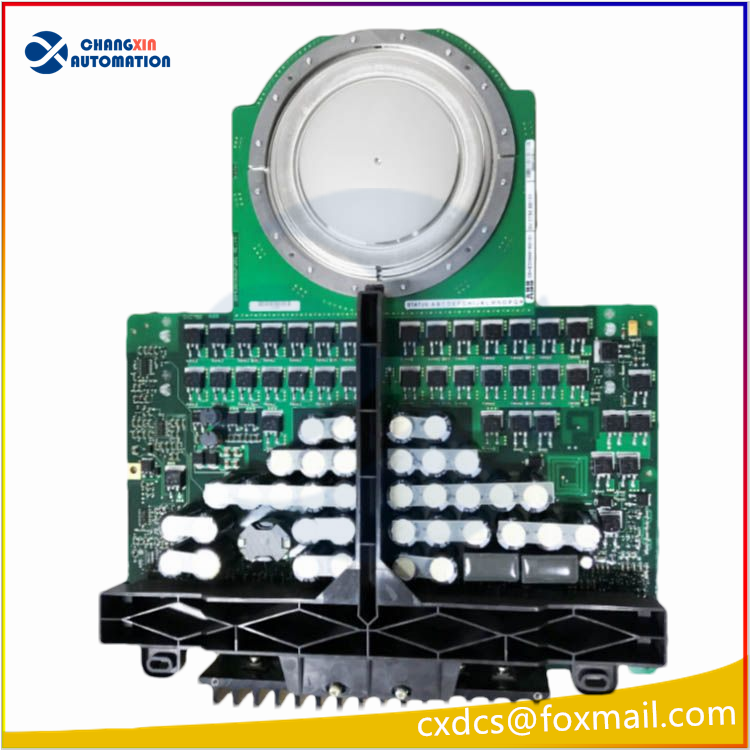

The ABB 3BHE009681R0101 3BHB013085R0001 5SHY3545L0009 is an Insulated Gate Bipolar Transistor (IGBT) module designed to meet the rigorous demands of high-voltage, megawatt applications across various industrial sectors. It combines robust construction with advanced performance characteristics, making it suitable for applications ranging from AC motor drives to renewable energy systems and electric vehicles.
Key Features:
• High Current Handling: Capable of handling up to 1150A of current, enabling efficient operation in demanding industrial environments.
• Low Switching Losses: Minimizes energy consumption and heat generation, enhancing overall system efficiency.
• High Switching Frequency: Supports switching frequencies up to 60 kHz, ensuring precise control and operation in diverse applications.
• Rugged Construction: Built to withstand harsh environmental conditions, ensuring reliability and longevity in challenging industrial settings.
• Easy Installation: Designed for ease of mounting and installation, simplifying maintenance and system integration processes.
Applications:
• AC Motor Drives: Enables variable-speed control of both induction and synchronous motors, enhancing operational flexibility and efficiency.
• Renewable Energy Systems: Facilitates grid integration of solar and wind power, contributing to sustainable energy solutions.
• Power Supplies: Used in industrial and commercial applications for stable and efficient power delivery.
• Rail Traction: Provides propulsion and auxiliary power in locomotives and trains, ensuring reliable performance in transportation systems.
• Electric Vehicles: Powers propulsion systems in electric cars, buses, and trucks, supporting the shift towards electric mobility.
Technical Specifications:
• Voltage Rating: 1700V
• Current Rating: 1150A
• Switching Frequency: Up to 60 kHz
• Operating Temperature Range: -40°C to +125°C
• Case Dimensions: 200 x 100 x 50 mm
• Weight: 4.5 kg
