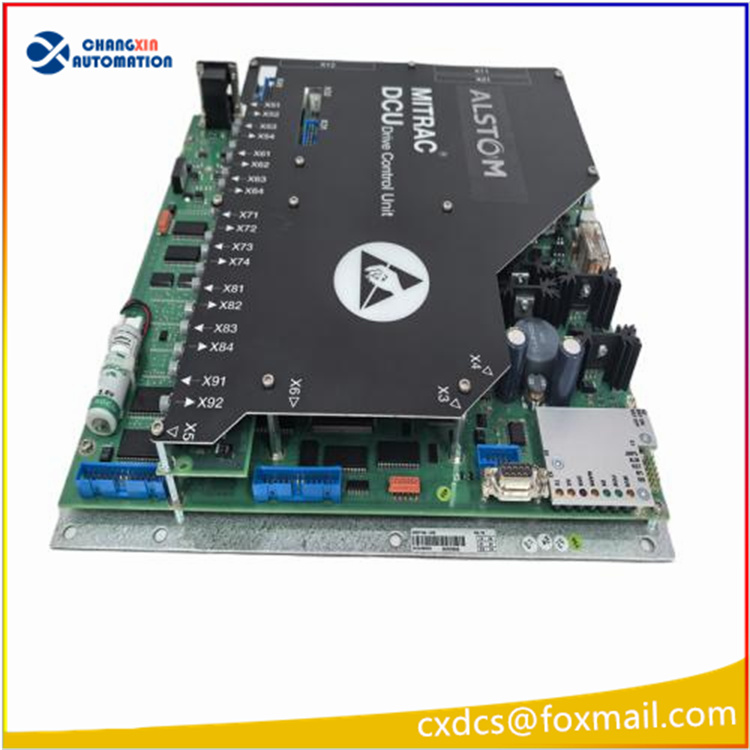

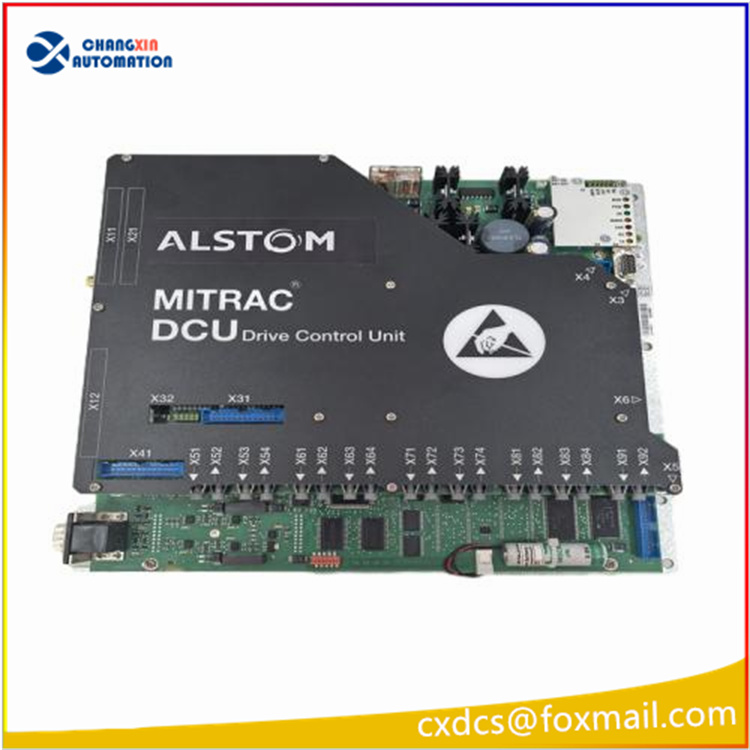

Product Overview
The DCC2382A 3EST125-975 series drive control unit is an electronic device commonly used in the field of industrial automation. It is mainly used to control actuators such as motors and hydraulic equipment. It is typically integrated into various automation systems, such as CNC machines, robots, packaging machinery, etc., to achieve precise motion control.
Product Features
High Performance: Utilizing advanced control algorithms, it can achieve high-precision speed and position control.
High Reliability: Designed with industrial standards, it offers high reliability and stability.
Modular Design: Modular design, making installation and maintenance easy.
Rich Interfaces: Supports various communication interfaces, such as CANopen, EtherCAT, etc., facilitating connection with other devices.
Multiple Protection Functions: Equipped with overcurrent, overvoltage, overheat, etc. protection functions to ensure equipment safety.
The working principle of the drive control unit can be summarized into the following steps:
Receive control signals: Receive control instructions from the upper computer or PLC.
Signal processing: Process the control instructions and generate corresponding control signals.
Power amplification: Amplify the control signals to drive the motor or other actuating elements.
Feedback control: Conduct closed-loop control of the control process through feedback signals to improve control accuracy.
Application scenarios
CNC machine tools: Control the movements of X, Y, Z axes, etc. of the machine.
Robots: Control the joint movements of robots.
Packaging machinery: Control the feeding, sealing, etc. actions of packaging machinery.
Automated production lines: Control various actuators of the production lines.
Technical parameters (typical values)
Output current: Varies depending on the model, usually ranging from a few amperes to several tens of amperes.
Control mode: Position control, speed control, torque control, etc.
Communication interface: CANopen, EtherCAT, RS485, etc.
Working voltage: 24V DC or other voltages.
Protection level: IP20 or higher Notes for Attention
Installation environment: It should be installed in a well-ventilated area without corrosive gases.
Wiring: Follow the instructions strictly for wiring. Pay attention to insulation.
Debugging: Before use, necessary debugging and parameter settings are required.
Maintenance: Regularly inspect and maintain to ensure the normal operation of the equipment.
