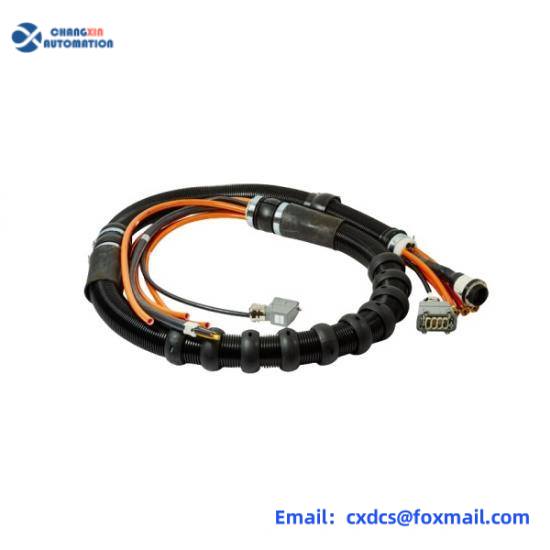

ABB 3HAC023170-001 Processing Cable Kit for Upper Arm – High-Performance Robotic Connectivity Solution
Engineered for precision robotics applications, the ABB 3HAC023170-001 Processing Cable Kit delivers superior connectivity for upper arm robotic systems. This advanced cable assembly ensures stable data transmission and power delivery, maintaining optimal performance in demanding industrial automation environments.
Specifically designed for ABB IRB6400 and similar robotic platforms, this cable kit features multi-layer shielding and reinforced connectors to withstand continuous flexing and mechanical stress. Its modular design enables quick replacement and minimal system downtime during maintenance cycles.
Key Features
- Industrial-Grade Durability – Double-shielded cables with reinforced strain relief withstand 10+ million flex cycles in robotic arm applications
- Plug-and-Play Design – Pre-configured connectors enable quick installation without specialized tools or calibration
- Signal Integrity Protection – Twisted pair construction and EMI shielding maintain data accuracy at transfer rates up to 12 Mbps
- Temperature Resilience – Operates reliably from -20°C to +70°C in harsh manufacturing environments
- Modular Architecture – Interchangeable segments allow targeted replacement of damaged sections without full system overhaul
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | Hybrid power/signal cable with 8x AWG24 signal pairs + 4x 16AWG power conductors |
| Connector Type | M23 circular connectors with anti-vibration locking mechanism |
| Bending Radius | Minimum 50mm dynamic bend radius |
| Certifications | CE, UL 1211/13, CSA Type TC-ER, IEC 60079-0 |
| Cable Length | Standard 3.5m (custom lengths available) |
Application Fields
This cable kit is specifically designed for demanding automation applications including:
- Automotive manufacturing assembly lines
- Precision welding and material handling robots
- High-speed palletizing and packaging systems
- Cleanroom semiconductor production equipment
- Heavy-duty metal fabrication machinery
