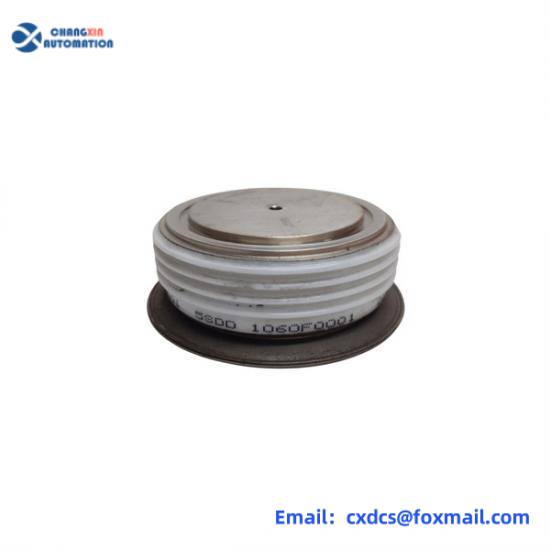

ABB 5SDD1060F0001 Diode Disc Module – High-Performance Power Electronics Component for Industrial Control Systems
The ABB 5SDD1060F0001 Diode Disc Module is a precision-engineered power electronics solution designed for demanding industrial control applications. With its robust 1000V/600A rating and advanced thermal management capabilities, this module ensures reliable performance in power supplies, inverters, and motor drives across extreme operating conditions.
Key Features
- High-Power Capacity: 1000V voltage rating and 600A current capacity handle demanding industrial power requirements
- Advanced Thermal Management: 0.15°C/W thermal resistance ensures efficient heat dissipation in high-load applications
- Extreme Environmental Tolerance: Operational from -55°C to +150°C for reliability in harsh industrial conditions
- Compact Design: Space-saving 10mm diameter × 3mm height profile enables integration into tight control systems
- Durable Silicon Construction: High-quality silicon material withstands mechanical stress and thermal cycling
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB 5SDD1060F0001 |
| Power Requirements | 1000V / 600A |
| Dimensions | Diameter: 10mm × Height: 3mm |
| Operating Temperature | -55°C to +150°C |
| Thermal Resistance | 0.15°C/W |
| Weight | 0.2kg |
Application Fields
Engineered for critical industrial applications including:
- Industrial power supply systems
- Variable frequency motor drives
- Renewable energy inverters
- Heavy-duty manufacturing equipment
- Automotive production lines
- Oil & gas processing facilities
