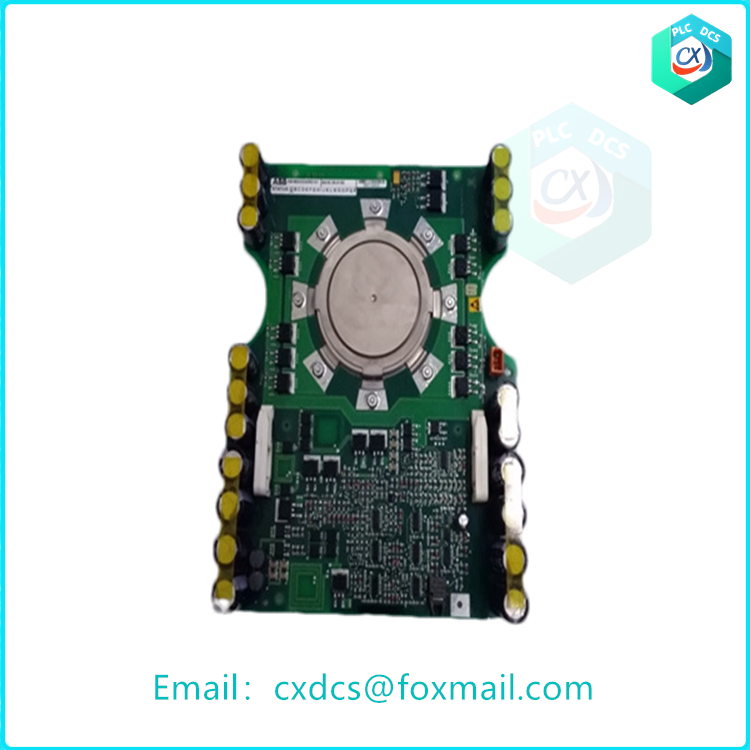

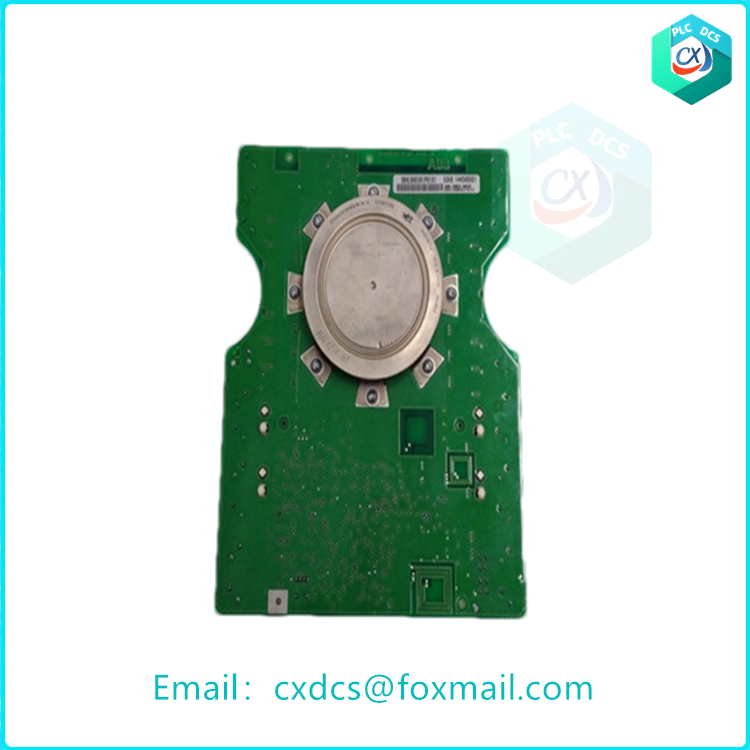

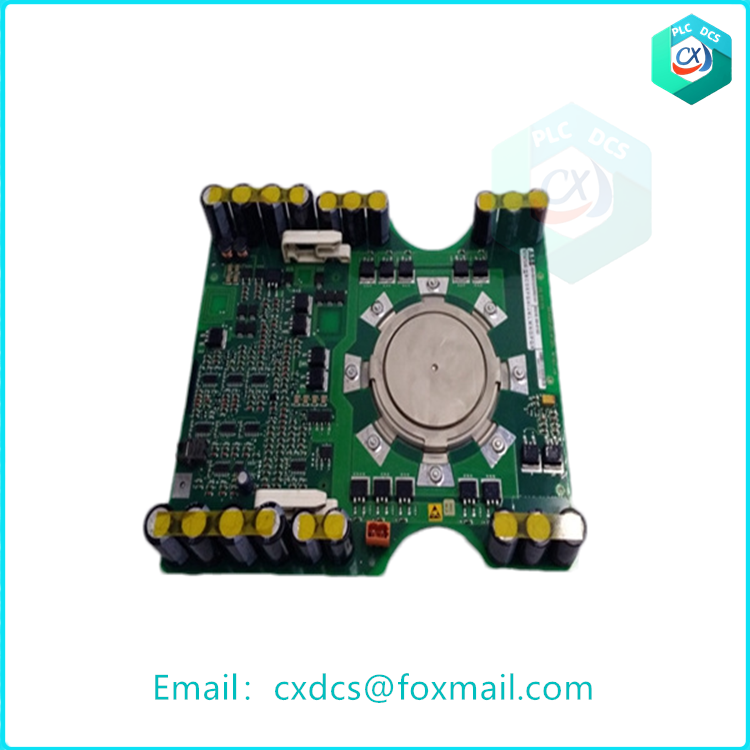

ABB 5SHX1445H0001 3BHL00391P0101 High-voltage thyristor module

5SHX1445H0001 3BHL00391P0101 High-voltage thyristor module is a high-performance and highly reliable semiconductor device produced by ABB. The following is a detailed introduction to it:
I. Basic Information
Manufacturer: ABB
Model:5SHX1445H0001
Part Number: 3BHL00391P0101
Product Category: High-voltage Thyristor Module

Main features
High voltage and large current capacity:
This module is capable of handling high voltages and large currents, and is suitable for application scenarios that require control of high power.
Fast switching capability:
It has a fast switching capability, which enables efficient circuit switching and reduces energy loss, improving system efficiency.
Thermal management design:
The design takes into account thermal management and is equipped with effective heat dissipation mechanisms to ensure stable working temperature during high-power operation.
High reliability:
It adopts a high-reliability design, which can operate stably for a long time under harsh environmental conditions and has good shock and vibration resistance performance.
Protection functions:
It may incorporate multiple protection functions, such as overvoltage protection, overcurrent protection, and overheat protection, to ensure the safe operation of the module and connected devices.

Technical Specifications
Rated Voltage: The specific voltage value should be referred to the product manual or the technical specifications provided by the supplier.
Rated Current: The specific current value should be referred to the product manual or the technical specifications provided by the supplier.
Control Method: The thyristor’s conduction state is controlled through the gate (G), thereby achieving current control.
