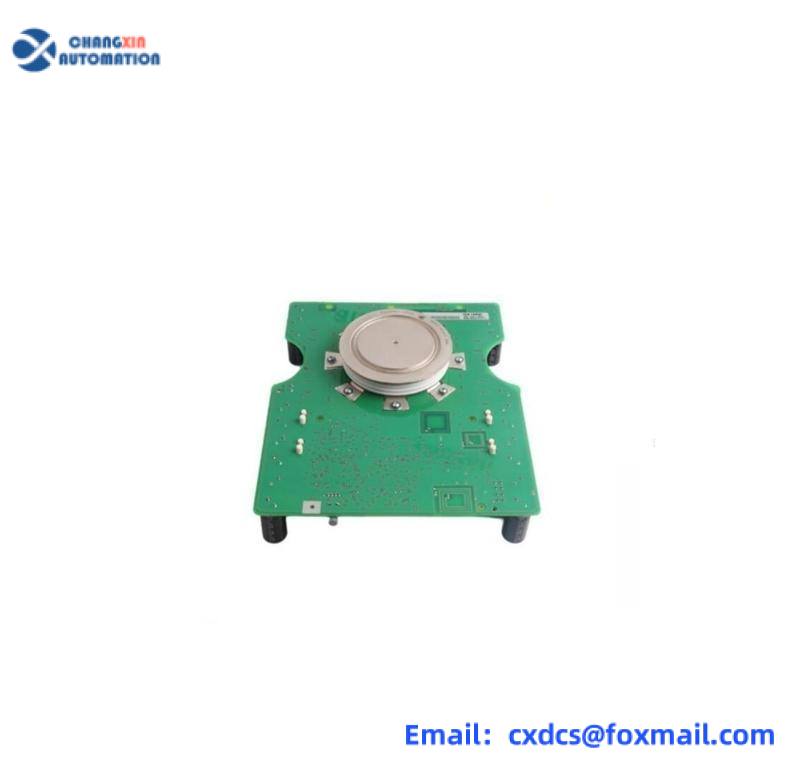

ABB 5SHX14H4502 National Standard Module: High-Performance Industrial Control Solution for Automation Systems
The ABB 5SHX14H4502 National Standard Module delivers exceptional reliability and precision for demanding industrial automation applications. Engineered to meet Chinese national standards, this control module combines advanced power electronics with robust industrial design, ensuring stable operation in harsh environments like manufacturing plants and energy infrastructure systems.
Key Features
- High-Frequency Performance: 50 kHz output frequency enables precise control in dynamic automation systems
- Industrial-Grade Durability: Reinforced housing and components withstand extreme temperatures and vibrations
- Compact Design: Space-saving 220V module fits seamlessly into tight control cabinets
- Custom Integration: Supports tailored configurations for specialized automation workflows
- Quality Assurance: 100% factory-tested to meet GB/T 14549-93 power quality standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB 5SHX14H4502 |
| Power Requirements | 220 V AC ±15% |
| Output Frequency | 50 kHz (adjustable range ±10%) |
| Operating Temperature | -25°C to +70°C |
| Installation Method | DIN rail mounting (EN 50022 compatible) |
Application Fields
This module excels in critical infrastructure applications including:
- Manufacturing automation lines (e.g., automotive, semiconductor production)
- Power generation and distribution systems (wind/solar inverters, grid control)
- Petrochemical process control systems
- High-speed rail and metro transportation control cabinets
- Smart grid energy management solutions
