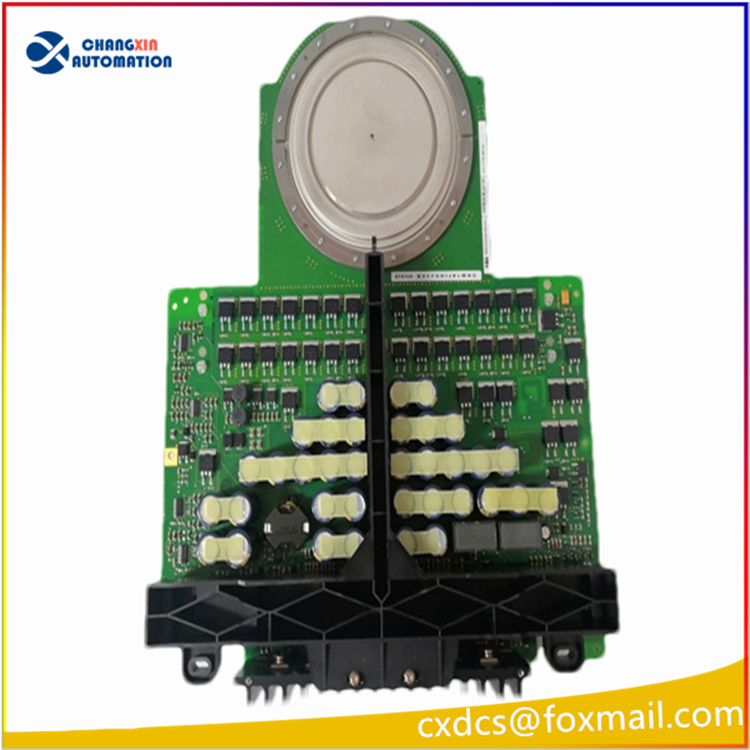

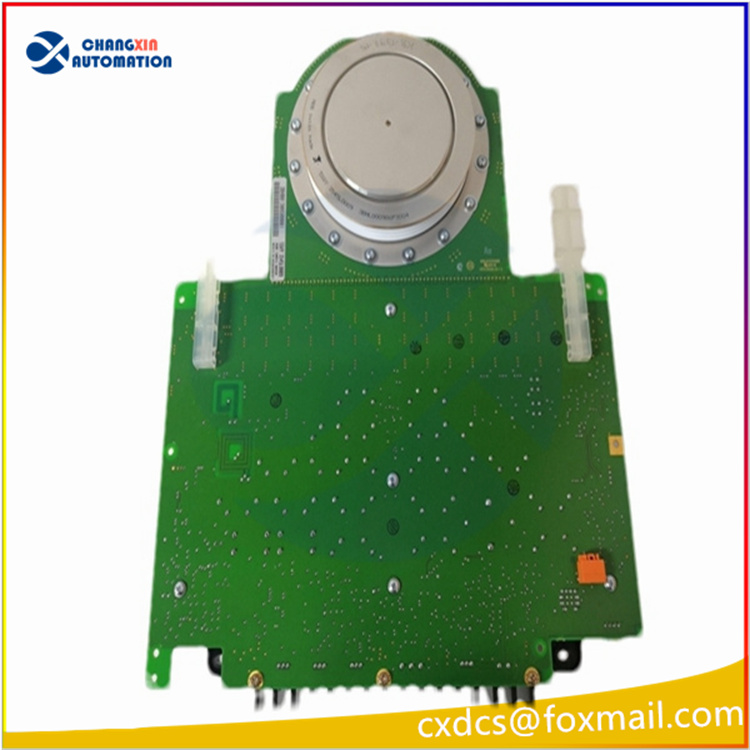

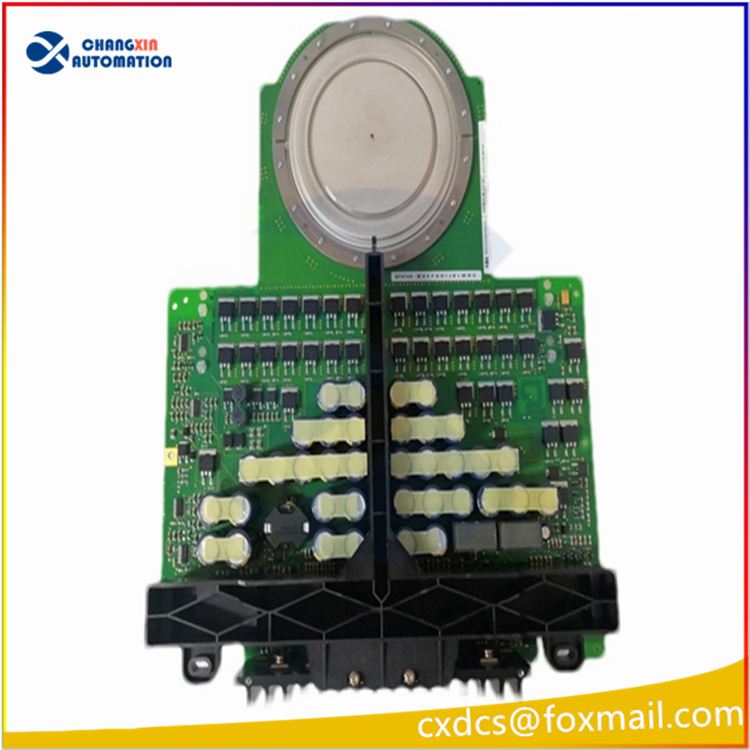

ABB 5SHY3545L0009 3BHB013085R0001 IGCT Board

product description：

5SHY3545L0009, 3BHB013085R0001, GVC750BE101, 3BHE009681R0101 refer to specific modules or components from ABB, a leading global technology company that operates mainly in robotics, power, heavy electrical equipment, and automation technology areas. These codes are likely identifiers for specific models or parts within ABB’s product range.IGCT Module Integrated Gate Commutated Thyristors

5SHY3545L0009: This is an IGCT module or a component related to IGCT technology. Function: IGCTs are used for high-power switching applications, offering high efficiency and reliability in power electronics. Applications: Commonly used in medium-voltage drives （e.g. ACS6000）, FACTS (Flexible AC Transmission Systems), and HVDC systems.

GVC750BE101:  Gate Unit Control Board or Gate Driver Board designed for controlling IGCTs. It provides the necessary signals to control the switching of IGCTs, ensuring precise and reliable operation. Key Features:High-speed control for IGCTs，Designed for compatibility with ABB’s power electronics systems，Ensures safe and efficient operation of IGCTs.

Key Points:

1. IGCT Technology: IGCTs are advanced semiconductor devices used for high-power applications, combining the benefits of GTO (Gate Turn-Off Thyristor) and IGBT (Insulated Gate Bipolar Transistor) technologies.
2. System Integration: These components are typically part of larger systems like ACS6000 or ACS5000 drives, HVDC converters, or other ABB power electronics solutions.
3. Maintenance and Replacement:
   • Ensure proper handling of IGCT modules and gate units to avoid damage.
   • Use genuine ABB parts for replacements to maintain system reliability.
   •
   • ABB 5SHY3545L0009 3BHB013085R0001 IGCT Control Panel is a control panel for controlling and monitoring ABB IGCT (Integrated Gate Transistor). The following is a detailed description of this control panel:

     Features:

     IGCT Control: Designed to control and monitor the operation and performance of ABB IGCT (Integrated Gate Transistor) modules.

     IGCT is an advanced semiconductor device used for high-voltage power electronic conversion.

     Integrated Design: The control panel integrates all necessary control and monitoring functions, simplifying the operation and maintenance of IGCT.

     High Performance: Provides efficient and reliable control solutions to ensure the best performance of IGCT modules in various industrial applications.

     Technical Specifications:

     Control Function: Provides operational control of IGCT, including switching, regulation and protection functions.

     Monitoring Function: Real-time monitoring of the working status of IGCT, including parameters such as current, voltage, temperature, etc., and provides alarm and diagnostic information.

     Interface: May include a user-friendly display interface for displaying operating status, setting parameters, and viewing historical data.

     Communication interface: supports communication with other control systems and equipment, usually including Ethernet, serial communication and other interfaces.

     Application areas:

     Power system: used in high-voltage power systems to control and monitor high-voltage IGCT modules, widely used in inverters, traction power transmission systems and other power electronic equipment.

     Industrial automation: used in industrial automation systems for power conversion and control to improve system efficiency and reliability.

     Design features:

     Durability: designed to work in harsh industrial environments, with high durability and stability.

     Safety: integrated with multiple safety functions to protect IGCT modules from overload, short circuit and other potential faults.

     Easy maintenance: provides an intuitive operation interface and easy-to-access maintenance functions, simplifying daily maintenance and troubleshooting of the system.
