product description：

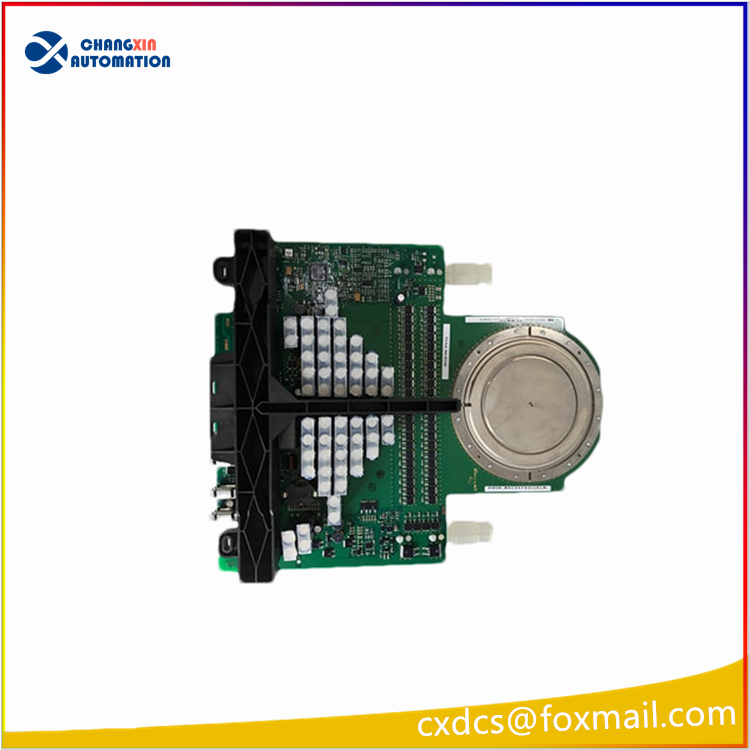

The ABB 5SHY4045L0004 IGCT thyristor module is a high-performance power electronic device produced by ABB. It belongs to the category of integrated gate converter thyristor (IGCT) technology and is suitable for high-voltage and high-power industrial scenarios. The following analysis is conducted from dimensions such as technical parameters, application fields, performance advantages, and maintenance key points:
Core Parameters
Voltage and Current: The module has a rated voltage of 380V-400V, a rated current of 45A, and a short-term withstand current of up to 1.5kA. It is suitable for high-voltage and high-current working conditions.
Chip technology: It adopts SPT (Soft Penetration) chipset (including SPT+ and SPT++ versions), with a larger chip area, which can provide higher output power and has a moderate chip shrinkage characteristic to optimize the rated current.
High-temperature tolerance: The 1700V SPT++ chipset supports a maximum connection temperature of 175°C, which helps to increase power density and reduce the complexity of the heat dissipation system.
Expansion capability: Modular expansion is achieved through the EtherCAT (FSoE) protocol, supporting 30 fail-safe inputs or outputs, suitable for distributed control systems.
Performance advantage
High-reliability design
Integrate the main switch (GTO thyristor + anti-parallel diode) with the gate drive circuit to reduce the number of components and enhance reliability per MVA.
Supports 100MVA-level power expansion and is suitable for scenarios such as high-voltage direct current transmission and large motor drive.
Dynamic response capability
The switching frequency can reach 500Hz, and the short-time switching pulse train frequency can reach 40kHz, which is suitable for high-frequency power regulation requirements.
It can still be safely operated under the dynamic avalanche limit, enhancing the system’s anti-interference ability.
High-efficiency conversion
Combined with the fast recovery diode technology, it realizes bidirectional conversion between AC-DC and DC-AC, and is suitable for scenarios such as variable frequency speed regulation and power conversion.
Optimize the conduction and shutdown losses to reduce the energy consumption of the system.
