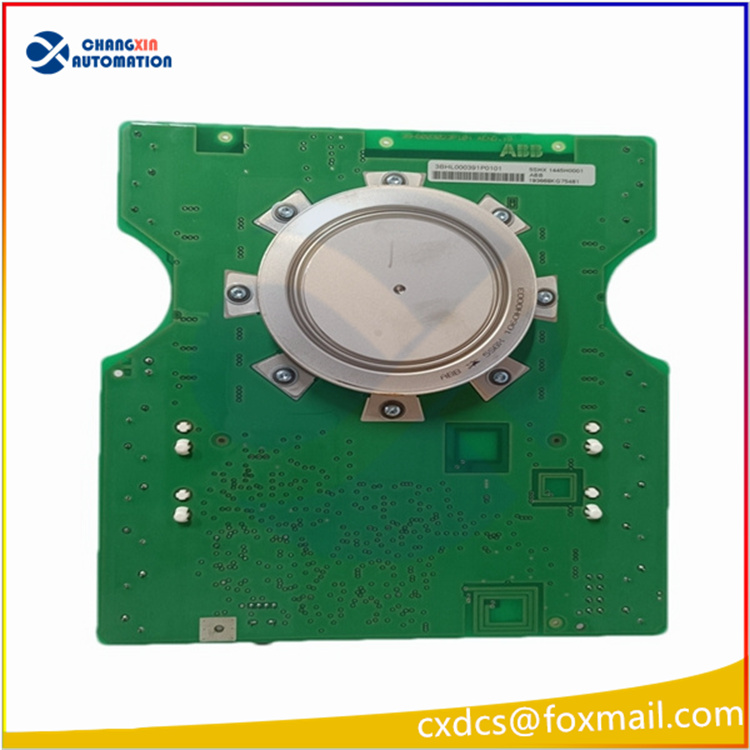

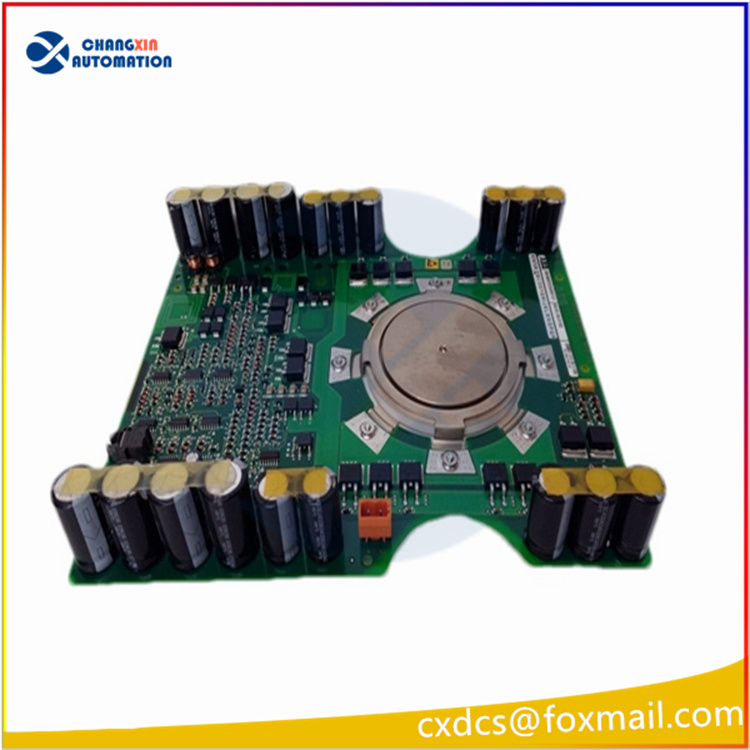

ABB 5SXE05-0158 3BHE022333R0101 IGBT module

Product description
Overview
The ABB 5SXE05-0158 3BHE022333R0101 5SHX0660F0002 is an Intelligent Contactor (ICGT) specifically engineered for controlling gas turbines across various applications within the gas turbine industry. Known for its high-performance capabilities, reliability, and versatility, this contactor meets stringent operational demands in power generation, cogeneration, and oil and gas production settings.
Features
• High Performance: Engineered for high-speed switching and capable of handling substantial inrush currents typical in gas turbine operations.
• Reliability: Constructed with high-quality components to endure harsh environmental conditions, ensuring consistent performance.
• Versatility: Suitable for diverse gas turbine applications including power generation, cogeneration, and oil and gas production.
Technical Specifications
• Rated Voltage: Up to 600V
• Rated Current: Up to 1600A
• Switching Frequency: Up to 20 Hz
• Operating Temperature: -40°C to +80°C
• Protection Degree: IP67

Additional Features
• Integrated Diagnostics: Includes built-in diagnostics for efficient troubleshooting and problem identification.
• Communication Capabilities: Capable of interfacing with SCADA (Supervisory Control and Data Acquisition) systems and other control platforms.
• Compact Design: Lightweight and compact form factor facilitates easy installation in confined spaces.
Benefits
• Improved Performance: Enhances gas turbine performance by providing faster switching times and reliable operation.
• Reduced Downtime: Increases system reliability to minimize downtime and enhance overall plant availability.
• Increased Safety: Integrated diagnostics help preemptively identify issues, enhancing operational safety and reliability.
Applications
• Power Generation: Used extensively to control gas turbines that drive generators in power generation facilities.
• Cogeneration: Applied in cogeneration setups where gas turbines produce both electricity and heat.
• Oil and Gas Production: Employed in oil and gas production environments to control gas turbines driving pumps and compressors.
