Product description
Overview

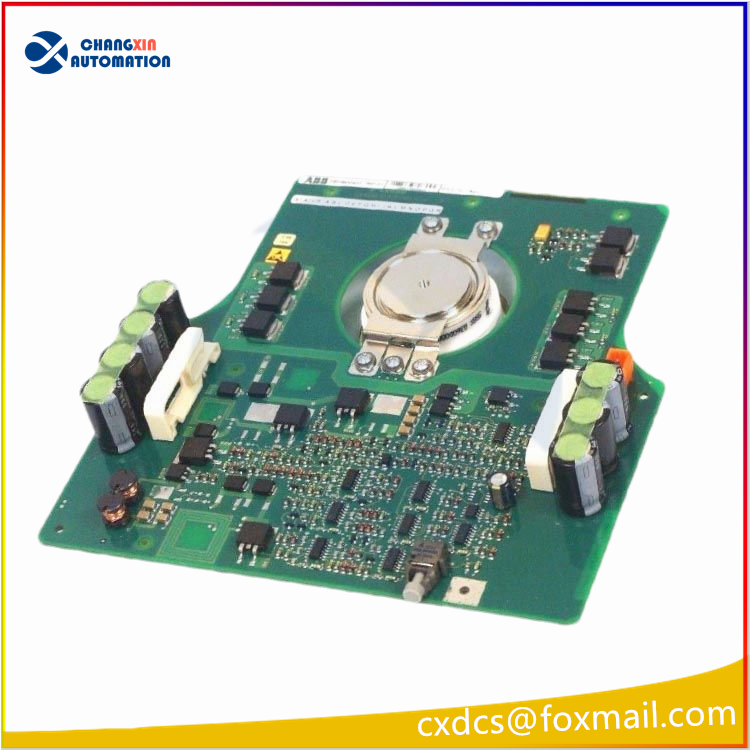

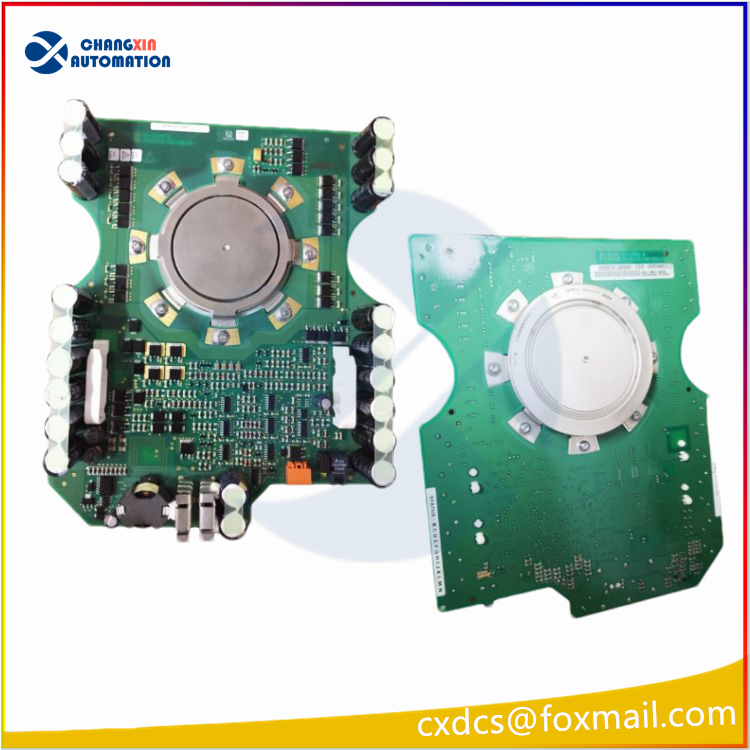

The ABB AC10272001R0101/5SXE10-0181/5SHY55L4500 is an Insulated Gate Commutated Thyristor (IGCT) module designed for high-voltage, high-power applications. IGCTs offer several advantages over traditional power devices, including high efficiency, low switching losses, and robust current and voltage handling capabilities.
Key Features
• High efficiency: IGCTs exhibit lower switching losses compared to GTOs and SCRs, resulting in higher efficiency and reduced energy consumption.
• Low switching losses: The minimal switching losses enable IGCTs to operate at higher frequencies, beneficial for applications such as motor drives and inverters.
• High current and voltage handling capability: IGCTs can effectively manage high currents and voltages, making them suitable for diverse applications like power transmission, traction, and renewable energy.
Technical Specifications
• Voltage: 6 kV
• Current: 4 kA
• Switching frequency: Up to 2 kHz
• Cooling: Water-cooled
• Package: TO-247
Applications
The ABB AC10272001R0101/5SXE10-0181/5SHY55L4500 IGCT module finds application in various sectors:
• Power transmission: Suitable for high-voltage direct current (HVDC) transmission and other power transmission needs.
• Traction: Used in traction inverters for electric locomotives and other rail vehicles.
• Renewable energy: Deployed in inverters for wind turbines and solar photovoltaic systems.
• Motor drives: Utilized for motor drives across diverse industrial applications.
