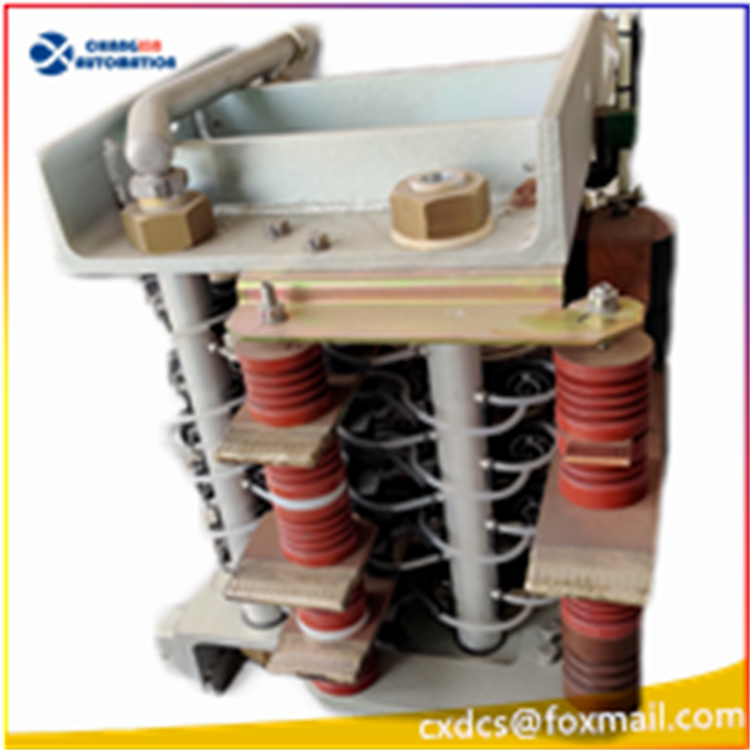

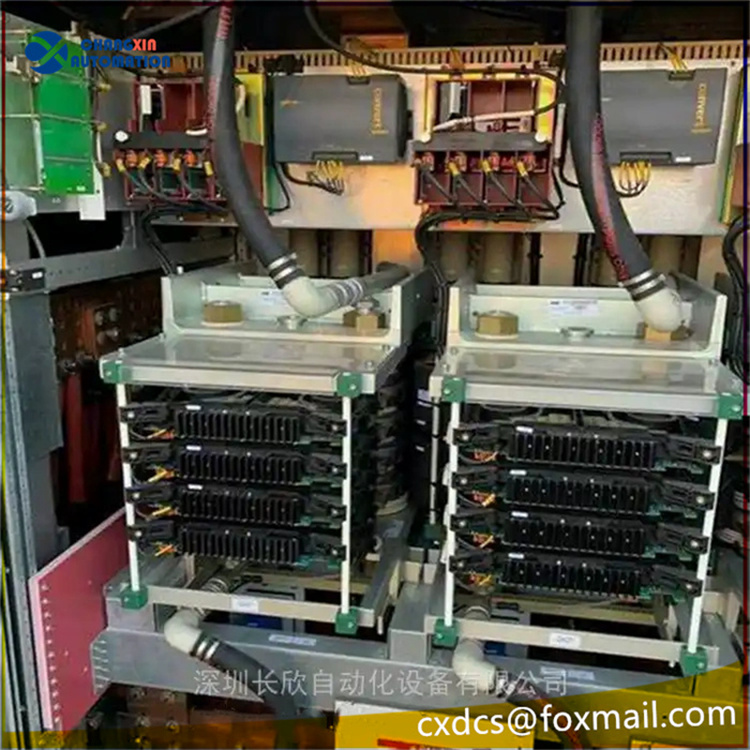

The ABB ACS 6000 S-093N 3BHB009885R0021 phase module is a core component of ABB’s medium-voltage frequency converter, specifically designed for high-performance industrial drive applications. It features high reliability, modular structure, and high efficiency. The following is a detailed analysis from three dimensions: technical characteristics, application scenarios, and market information.
I. Technical Features
Power and Performance
This module belongs to the ACS 6000 series of medium voltage frequency converters, adopting IGCT (Integrated Gate Commutated Thyristor) power semiconductor technology, which supports high-power medium voltage applications (power range 3.0 to 36.0 MW).
The fuseless main circuit design reduces the number of components, lowers the failure rate, and enhances cooling efficiency while reducing the equipment size.
Direct Torque Control (DTC) technology enables full torque output at zero speed without the need for a speed encoder, simplifying the system structure and reducing maintenance costs.
Modular and Redundant Design
Supports single or multiple motor drive solutions, with a modular structure allowing flexible configuration to meet different business needs.
Redundant main propulsion drive units can maintain operation in the event of partial failure, ensuring safety in critical areas such as ships.
The shared DC bus design reduces the number of transformers, circuit breakers, and cables, further minimizing the system size.
Protection and Safety Functions
Built-in overload, short circuit, and over-temperature protection mechanisms, combined with arc-proof design and rapid fault elimination functions, enhance personnel and equipment safety.
Technical features
Power range: up to 12MW, suitable for large wind turbines.
Design type: ABB S-093N 3BHB009885R0021 medium voltage full power converter, with water-cooled closed-loop cooling unit to ensure efficient heat dissipation.
Modular design: supports easy customization to meet different customer needs, while facilitating maintenance and upgrades.
High efficiency: ABB S-093N 3BHB009885R0021 converter has a very high efficiency at rated point, close to 98%, which helps reduce the cost of electricity.
Generator compatibility: Can be used with permanent magnet generators and induction generators.
Voltage level: ABB S-093N 3BHB009885R0021 converter rated voltage is 3.3kV or 4.16kV, generator side voltage and grid side voltage are 0 to 4.3kV.
Cooling method: ABB S-093N 3BHB009885R0021 converter adopts water-cooled closed-loop cooling unit to ensure efficient operation and long-term stability of the converter.
Modular design: Supports easy customization, can fully meet customer needs, and is easy to maintain and upgrade.
Control system: ABB S-093N 3BHB009885R0021converter is equipped with ABB AC 800PEC controller to achieve comprehensive and efficient control strategy.
Fault ride-through capability: The converter has fault ride-through characteristics, which can keep the wind turbine running on the grid when the grid fails, improving the reliability and stability of the wind farm.
Compliance with grid connection guidelines: The design complies with the requirements of advanced grid guidelines to ensure that wind turbines can be smoothly and reliably connected to the grid.
Installation and Maintenance
Installation method: Designed for nacelle or tower installation, it helps reduce the cost of cable laying and improve its efficiency.
Maintenance convenience: The modular design makes all parts of the converter easy to access, effectively reducing maintenance costs and shortening maintenance time. At the same time, it supports remote monitoring and fault restart, further improving maintenance efficiency.
Functions and Applications
Full-power conversion: As a full-power converter, it can ensure that wind turbines can generate electricity efficiently and stably at any wind speed.
Fault ride-through capability: With fault ride-through characteristics, it can maintain stable operation of wind turbines in the event of grid faults and reduce downtime.
Grid-connected code compliance: Complies with advanced grid code requirements to ensure that wind turbines can be smoothly connected to the grid.
Remote monitoring and maintenance: Remote monitoring is achieved through supported software tools, which facilitates timely detection and resolution of problems and reduces maintenance costs.
Certification and Standards
Product Certification: It has passed the product certification of Beijing Jianheng Certification Center (CGC) and meets the requirements of GB/T 25387-2010, the full-power converter standard for wind turbines. At the same time, it has also passed DNV-GL GL-IV-2:2012 product certification.
Quality Assurance System: Meets ISO 9001:2008 quality assurance system requirements.
Environmental System: Meets ISO 14001:2004 environmental system requirements.
