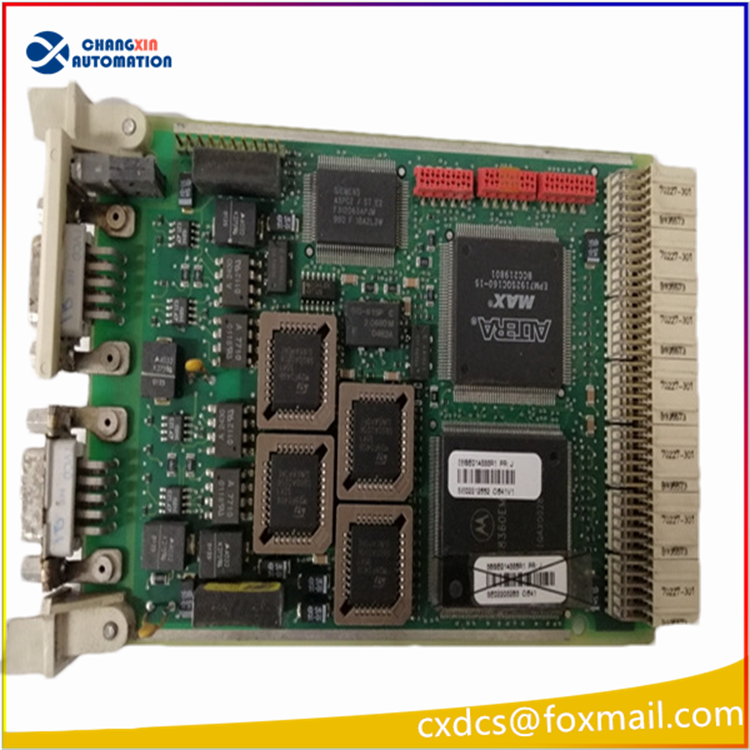

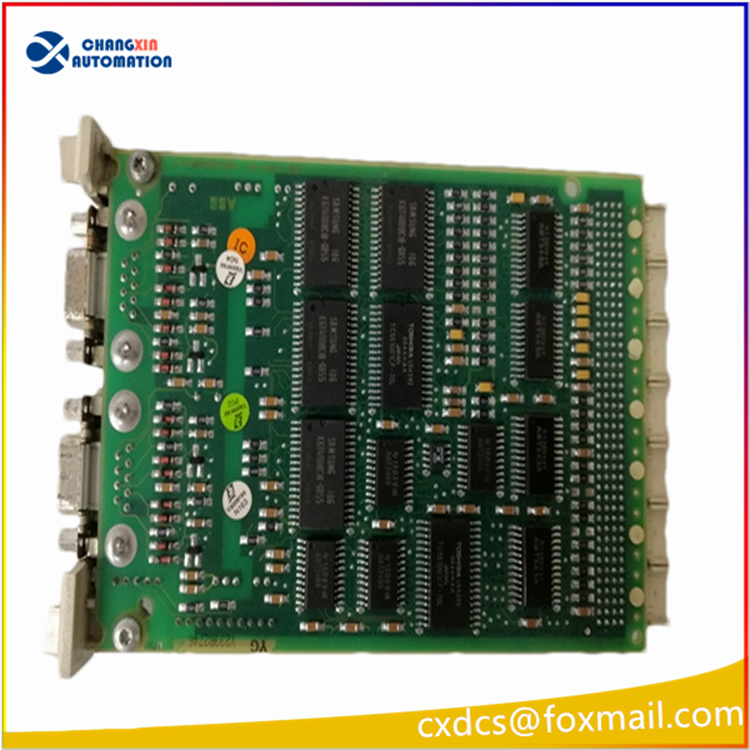

ABB CI541V1 (Order Number: 3BSE014666R1) is a high-performance embedded card controller module, specifically designed for industrial automation and control applications. The following is an introduction to this module:
I. Core Functions
High-performance processing: The CI541V1 module is equipped with a high-performance processor, which can quickly execute complex control algorithms and data processing tasks, meeting the high requirements for real-time performance and accuracy of industrial automation systems.
Scalability: This module adopts a modular design, making it convenient for users to configure and expand according to actual needs. By combining with other modules, a complete automation control system can be constructed, adapting to different scales and complexity of application scenarios.
Support for multiple communication interfaces: The CI541V1 module supports various communication interfaces and protocols, such as EtherNet/IP, Profinet, Profibus DP, Modbus, DeviceNet, etc., facilitating communication with other devices and enabling data exchange and remote control.
Programmability: This module supports parameter setting and function configuration through programming, meeting the different needs of users. Users can flexibly adjust the functions and performance of the module according to actual application scenarios.
High reliability: The CI541V1 module uses high-quality materials and durable design, ensuring stable operation in harsh industrial environments. At the same time, the module also has fault diagnosis and self-protection functions, improving the reliability and availability of the system.
Technical Specifications
Parameter Name Parameter Value
Model CI541V1
Order Number 3BSE014666R1
Type Embedded Card Controller Module
Communication Interface Supports various industrial communication protocols such as EtherNet/IP and Profinet
Operating Voltage 24V DC (±20% wide voltage input)
Power Consumption Typical power consumption 5W, maximum 8W
Isolation Protection 1500VDC isolation voltage, enhancing anti-interference capability
Operating Temperature Extended type: -40℃ to +70℃, Standard type: 0℃ to +55℃
Protection Grade IP20 (standard installation), optional IP67 protection kit
Storage Capacity 256MB flash memory, supports online firmware upgrade
Application scenario
The CI541V1 module is widely used in various industrial automation and control systems that require complex control and data processing, such as:
Chemical industry: Used to control chemical reaction processes, monitor parameters such as temperature and pressure, and ensure production safety and efficiency.
Electricity industry: In power plants and substations, used to monitor and control the operation status of power equipment, improving the stability and reliability of the power system.
Pharmaceutical industry: Used to control each stage of the drug production process, ensuring drug quality and production safety.
Manufacturing industry: On automated production lines, used to control the movement of robots and the actions of actuators, achieving automation and intelligence in the production process.
Building automation: Used for the control of lighting, HVAC systems, and other automated equipment in large buildings, improving the energy efficiency and comfort of the buildings.
Transportation system: In traffic signals, railway, and airport control systems, used to implement logical control and monitoring, ensuring the safety and smooth operation of the transportation system.
