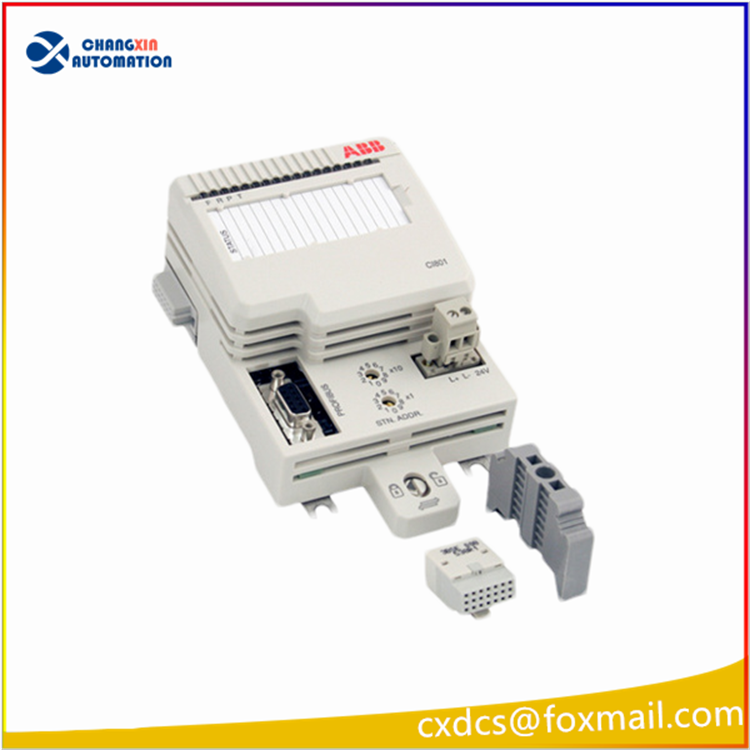

The CI801 fieldbus interface module is a high-performance communication interface module launched by ABB. It is specifically designed for industrial automation and supports the PROFIBUS-DPV1 fieldbus protocol. It features core functions such as signal processing, hot configuration operation, and HART transmission, and is suitable for distributed control systems (DCS) and process control scenarios.
Core Function Analysis
Communication Protocol Support
PROFIBUS-DPV1 Interface: As the core communication protocol of the module, it supports high-speed data transmission and meets the requirements of real-time and reliability in industrial sites.
Multi-protocol Compatibility: Some models (such as CI840) support redundant functions and can be used in combination with PROFIBUS, FOUNDATION Fieldbus or HART protocols to meet the communication needs of different devices.
Signal Processing and Configuration
Signal Processing: The module can perform filtering, conversion, etc. on input signals to ensure data accuracy.
OSP Processing and Configuration: Supports online system parameter adjustment (OSP), allowing configuration modifications without stopping the system, enhancing system flexibility.
I/O Module Configuration: Configures parameters and monitors the status of connected I/O modules through the field bus.
Hot Configuration Operation (InRun)
Allows dynamic addition or removal of I/O modules during system operation, without interrupting the control process, significantly reducing downtime.
HART Transmission Function
Supports access to HART protocol devices, allowing reading of additional information from intelligent instruments (such as diagnostic data), enhancing system integration capabilities.
Isolated Power Supply
Built-in isolated power supply provides stable power to connected I/O modules and prevents electrical interference, enhancing system safety.
Technical Characteristics and Advantages
Modular Design
Adopts a distributed and modular architecture, supporting plug-and-play functionality, facilitating expansion and maintenance.
Can be seamlessly integrated with the S800 I/O system to form a comprehensive process control solution.
High Reliability
Supports redundant configurations (such as CI840) to ensure that communication links can still operate normally in the event of a single-point failure.
Isolated power supply and signal processing design effectively mitigates electrical noise and interference in industrial environments.
Flexibility and Compatibility
Supports multiple fieldbus protocols and can connect devices from different manufacturers, protecting user investments.
Provides a wide range of I/O module options (such as analog, digital, redundant modules) to meet diverse application requirements.
Engineering Efficiency Enhancement
Complemented by the CBF configuration software, it enables full lifecycle management from design, debugging to maintenance.
Supports FDT/DTM technology, simplifying equipment integration and diagnostic processes.
Remote Diagnosis and Maintenance
Includes a Web Server function, allowing remote access to module status through a browser, enabling quick fault location.
