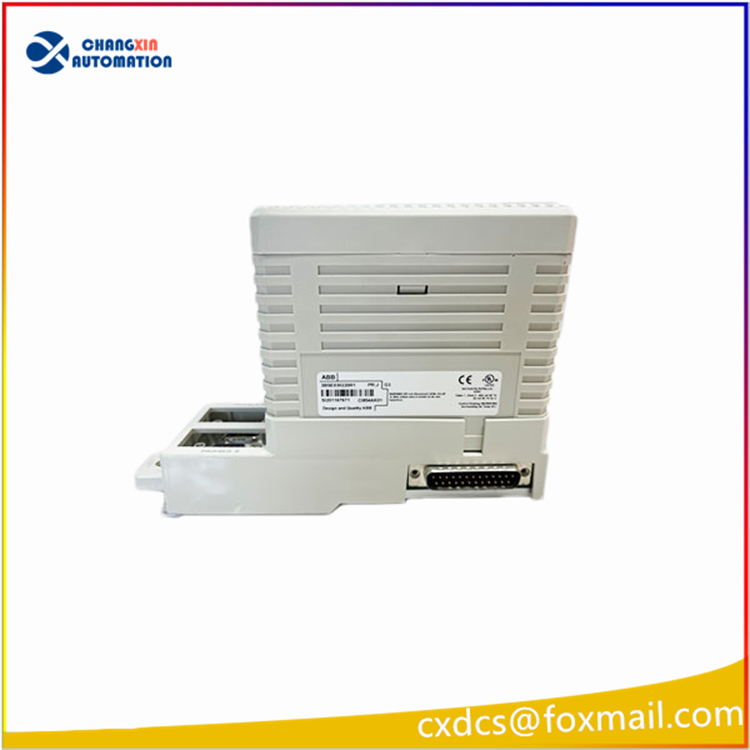

ABB CI840A Communication Module PROFIBUS

product description:

The ABB CI840A is an 8-channel single-polarity analog output module, featuring high resolution, high precision, self-diagnosis, short-circuit protection, and output status protection (OSP) functions. It is suitable for precise measurement and control of continuous physical quantities (such as temperature, pressure, and flow) in industrial automation systems.
Core functions
8-channel single-polarity analog output
Supports 0/4-20mA current output, covering the industrial standard signal range, and compatible with most sensors and actuators.
The module converts digital signals into analog signals (such as current) for output, enabling seamless interaction with on-site equipment.
High precision and high resolution
Has high-resolution output capability, meeting the strict requirements of industrial automation systems for control accuracy.
High-precision design ensures signal stability, reduces measurement errors, and enhances system reliability.
Self-diagnosis and status monitoring
The module is equipped with self-diagnosis functionality, which can cyclically detect output status and issue early warnings for potential faults.
Provides input status LED indicators and error signal feedback mechanisms, simplifying the troubleshooting process.
Short-circuit protection and output status protection (OSP)
Supports short-circuit protection function to prevent module damage due to line faults.
When an error is detected, the OSP function automatically sets the output to a predetermined state to avoid system

Application scenario
Process control
In industries such as chemical engineering, petroleum, and natural gas, monitoring and controlling parameters such as pipeline pressure, valve status, and flow rate is necessary to ensure production safety and efficiency.
For example: The AO801 module is used to control the opening degree of the regulating valve, enabling precise flow regulation.
Manufacturing and Factory Automation
In fields such as automotive manufacturing and electronic manufacturing, controlling equipment such as robots and conveying systems on the production line, and optimizing the production process.
For example: The AO801 module outputs signals to control the movement speed of the mechanical arm.
Energy Management
In scenarios such as power, wind power, and hydropower, monitoring parameters such as generator speed, voltage, and current, and achieving efficient energy utilization.
For example: The AO801 module is used to adjust the pitch system of the wind farm, optimizing the efficiency of wind energy capture.
Environmental Monitoring
In fields such as water treatment and wastewater treatment, monitoring parameters such as liquid level, pH value, and dissolved oxygen, ensuring water quality compliance.
For example: The AO801 module is used to control the flow of the dosing pump, achieving automatic water quality regulation.

Summary of Advantages
High Reliability: Self-diagnosis and protection functions ensure the module operates stably in harsh industrial environments, reducing downtime.
High Precision Control: Meets the strict requirements of industrial automation systems for continuous physical quantity measurement, improving product quality.
Flexible Expansion: 8-channel design supports multi-parameter monitoring, suitable for different scale and complexity application scenarios.
Easy Integration: Supports combination with other ABB modules (such as AC500CPU, DC505-FBP), reducing system integration costs.
