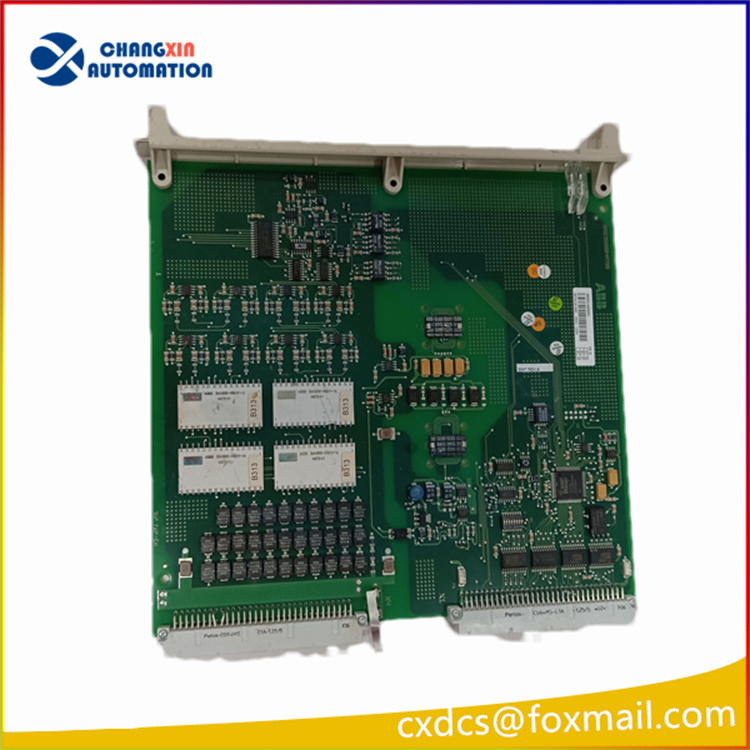

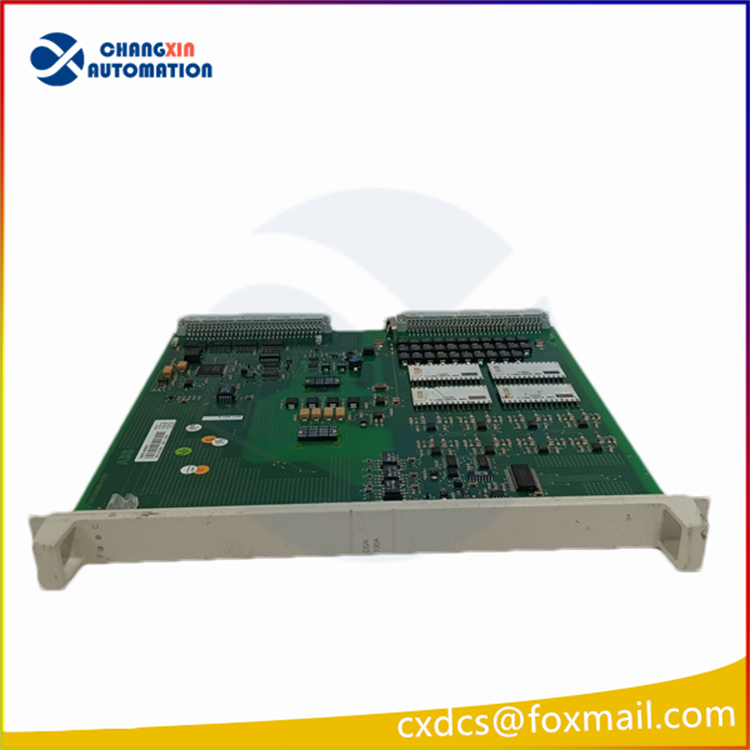

The ABB DSAI130A 3BSE018292R1 is a high-performance analog input/output module specifically designed for industrial automation. Here is a detailed introduction about this module:
I. Functional Features
Signal Conversion: Capable of converting analog signals into digital signals and sending them to the controller for various industrial applications.
High Precision Measurement: Utilizes high-precision A/D converters to ensure the accuracy and reliability of data.
Multiple Input Types: Supports various analog signals such as current, voltage, temperature, and pressure, meeting diverse industrial requirements.
Strong Anti-interference Capability: Suitable for industrial environments, capable of effectively resisting external interference and ensuring stable signal transmission.
Flexible Communication Interfaces: Supports multiple communication protocols such as Ethernet and serial communication, facilitating data exchange with other devices or control systems.
Easy to Use: Installation is simple, configuration is convenient, and provides programming tools and configuration software to lower the usage threshold.
Technical Specifications
Number of channels: 16 analog input channels.
Input type: Differential input, supporting an input range of ±10V to ±20mA.
Resolution: 0.025%, ensuring high-precision signal measurement.
Operating voltage: 24V DC, suitable for common industrial power supplies.
Output voltage: 0~10V, meeting various control requirements.
Communication interface: Ethernet, supporting high-speed data transmission.
Operating temperature range: -40℃ to +85℃, adaptable to harsh industrial environments.
Protection level: IP65, with excellent dust and water resistance performance.
Size: Length 324mm, width 225mm, height 22.5mm, facilitating installation and integration.
Weight: Approximately 0.32kg, lightweight and easy to handle.
Application fields
The ABB DSAI130A 3BSE018292R1 module is widely used in the following fields:
Industrial Automation: Applicable to factory systems, monitoring and data acquisition systems (SCADA), medical systems, transportation equipment, etc., to achieve data collection and control functions.
Process Control: Used to control parameters such as temperature, pressure, and flow in industrial processes, ensuring the stability and quality of the production process.
Building Automation: Used for the control of fans, valves, solenoid valves, etc. in HVAC systems, improving the comfort and energy efficiency of buildings.
Transportation: Used for the collection of vehicle signals, track signals, and environmental signals, supporting the development of intelligent transportation systems.
Power System: Used for the collection of current signals, voltage signals, and grid status signals, ensuring the safe and stable operation of the power system.
