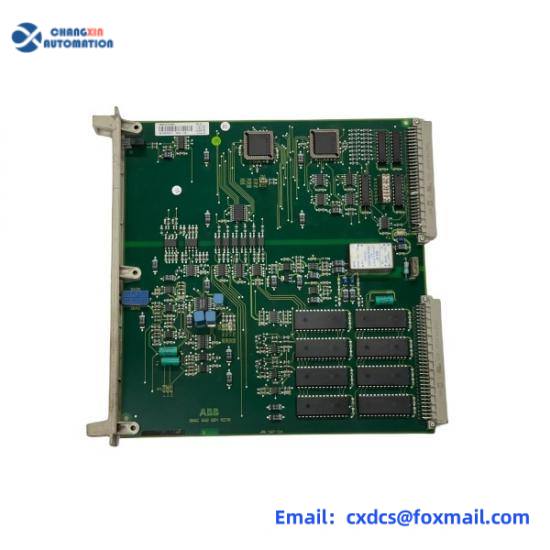

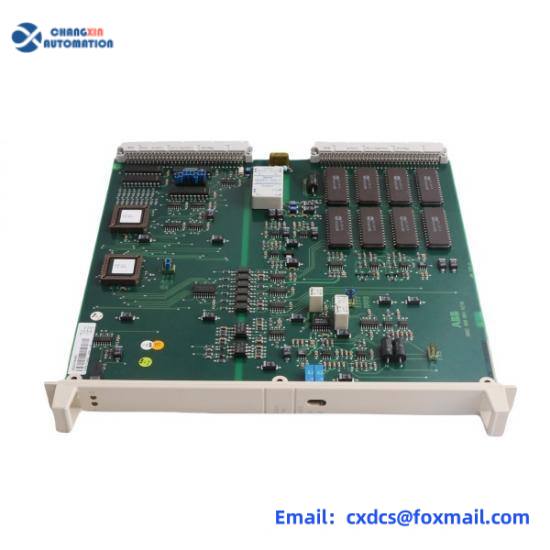

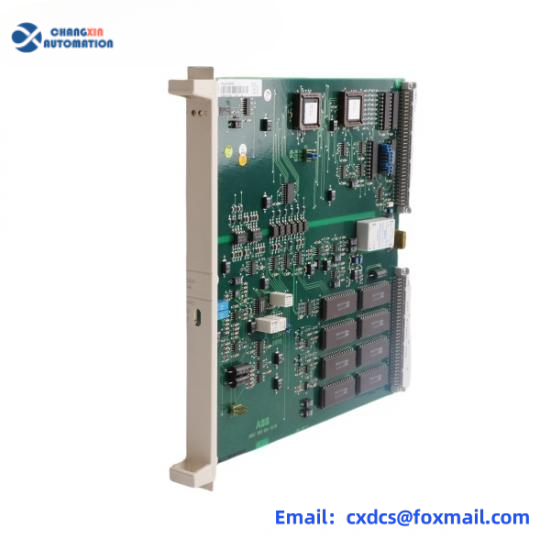

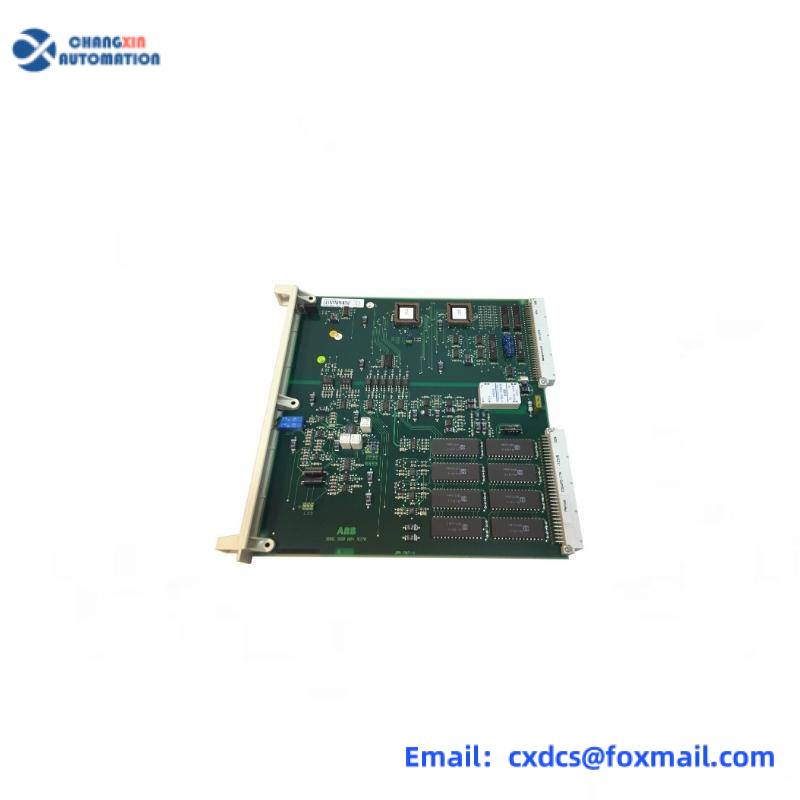

ABB DSAI146 Analog Input Module for Industrial Automation Systems
The ABB DSAI146 Analog Input Module delivers high-precision temperature measurement for demanding industrial environments. Designed for seamless integration with ABB’s AC 800M control systems, this 31-channel Pt100 sensor interface ensures reliable data acquisition in manufacturing, energy management, and process control applications where accuracy and uptime are critical.
Key Features
- 31-Channel Pt100 Interface: Simultaneous measurement of multiple temperature points with ±0.15°C accuracy
- Industrial-Grade Design: Rugged construction for continuous operation in harsh environments
- Compact Form Factor: Space-saving dimensions (324×22.5x234mm) enable easy retrofitting into existing systems
- Low-Power Operation: Optimized 24V DC power consumption for energy-efficient performance
- Modular Architecture: Simplified maintenance through tool-less module replacement
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB DSAI146 |
| Power Requirements | 24V DC (Typical 2.5W consumption) |
| Operating Temperature | 0°C to 60°C (Standard Industrial Range) |
| Signal Input | 31x Pt100 RTD Channels |
| Communication | PROFIBUS DPV1 Interface |
| Mounting | Standard 35mm DIN Rail Installation |
Application Fields
Engineered for critical infrastructure environments, the DSAI146 module excels in power generation facilities, chemical processing plants, and food & beverage production lines where temperature monitoring requires exceptional precision. Its advanced diagnostics and galvanic isolation features make it ideal for deployment in hazardous locations and safety-critical systems.
