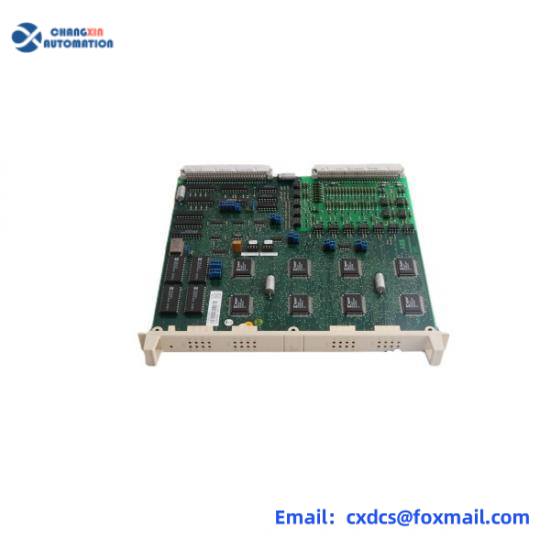

ABB DSDP 170 – High-Speed Pulse Counting Module for Precision Industrial Automation
Engineered for demanding industrial environments, the ABB DSDP 170 Pulse Counting Module delivers exceptional measurement accuracy for position, length, speed, and frequency monitoring. With its 2.5 MHz pulse frequency capability and ±0.01% measurement precision, this compact module ensures reliable performance in dynamic manufacturing processes.
Key Features
- 2.5 MHz Maximum Pulse Frequency: Enables high-speed data acquisition for precision motion control applications
- ±0.01% Measurement Accuracy: Ensures repeatable performance in critical positioning and speed monitoring tasks
- Rugged Industrial Design: Operates reliably from -20°C to +55°C with 0.38 kg lightweight aluminum housing
- RS-485 Communication: Facilitates seamless integration with industrial control systems and PLC networks
- Universal Power Supply: 12-24V DC operation with <50mA current consumption for energy-efficient performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSDP 170 |
| Power Requirements | 12-24V DC (<50mA) |
| Operating Temperature | -20°C to +55°C |
| Measurement Accuracy | ±0.01% |
| Communication | RS-485 interface |
Application Fields
This high-performance module excels in diverse industrial applications including:
- Precision web handling systems in converting machinery
- High-speed packaging line control
- Rotary indexing table positioning
- Conveyor belt speed monitoring
- Encoder signal processing for CNC equipment
Our Industrial Control Product Portfolio
As authorized distributors for leading manufacturers, we offer comprehensive solutions including ABB DSQC robotics, GE Fanuc VMIVME modules, Bently Nevada 3500 vibration systems, Foxboro FBM control modules, Triconex safety systems, and Woodward digital controllers.
