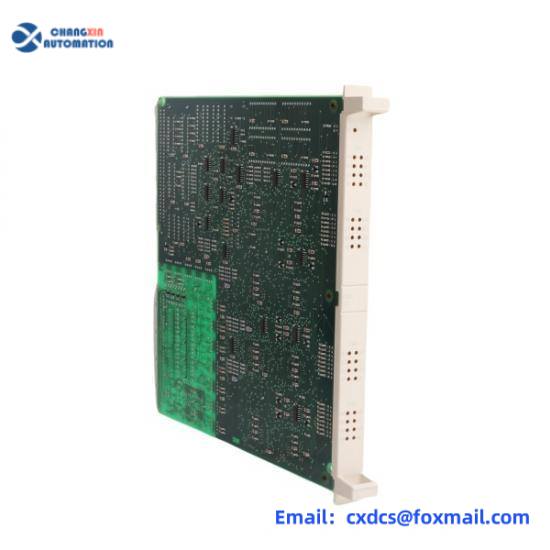

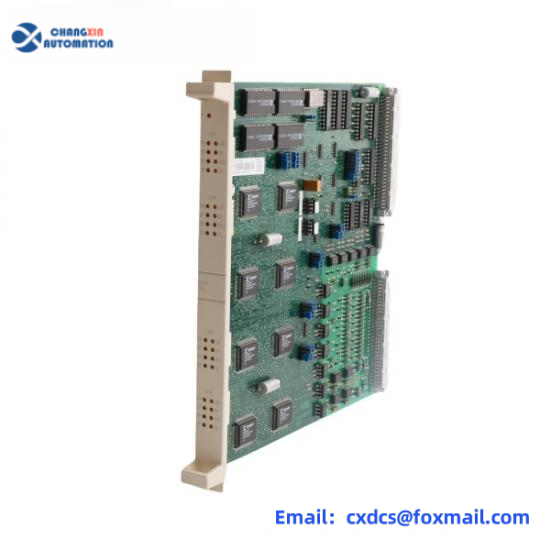

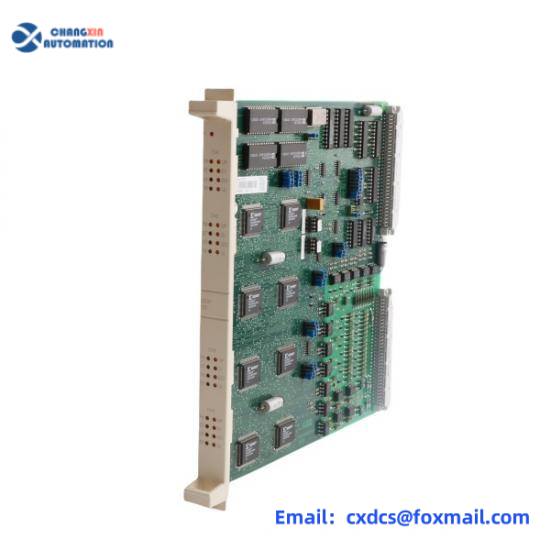

ABB DSDP170 Pulse Counting Board for Industrial Positioning & Measurement Systems
Engineered for precision-critical applications, the ABB DSDP170 Pulse Counting Board delivers 2.5 MHz high-frequency measurement capabilities while maintaining ±0.01% counting accuracy. Designed for seamless integration with ABB AC500 PLC systems, this industrial-grade module enables real-time position control, length measurement, and velocity monitoring in demanding automation environments. Its compact 0.38 kg design combines rugged industrial durability with plug-and-play installation for minimal system downtime.
Key Features
- High-Speed Pulse Processing – 2.5 MHz input frequency capacity with 32-bit counter registers for precise motion control
- Multi-Function Measurement – Simultaneous position, velocity, and frequency calculation with 0.01 μs time resolution
- Industrial-Grade Durability – Conformal-coated PCB and reinforced connectors withstand vibration (IEC 60558-2-1 compliant)
- ABB PLC Compatibility – Direct integration with AC500/AC800M control platforms via standard backplane interface
- Modular Design – Tool-less DIN rail mounting with integrated status LEDs for rapid fault diagnosis
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSDP170 |
| Max Pulse Frequency | 2.5 MHz (differential input) |
| Counting Accuracy | ±0.01% at 100 kHz |
| Weight | 0.38 kg |
| Operating Temp | -20°C to +60°C |
Application Fields
The DSDP170 excels in precision automation systems requiring high-resolution motion control, including:
- Conveyor belt speed synchronization in packaging lines
- Positioning control for CNC machine tools and robotics
- Length measurement in steel rolling mills and extrusion processes
- Frequency monitoring for turbine/generator sets
- Encoder signal processing in semiconductor manufacturing equipment
