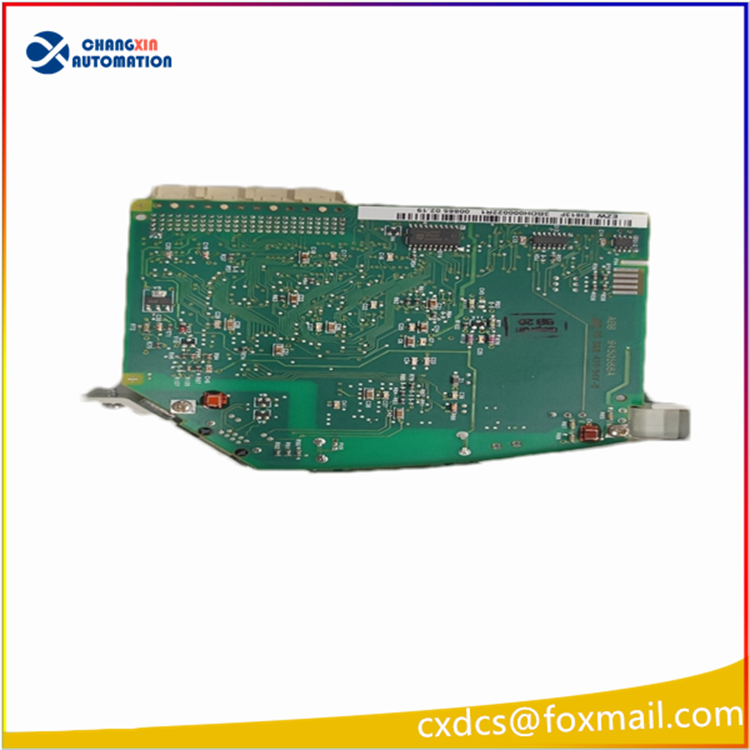

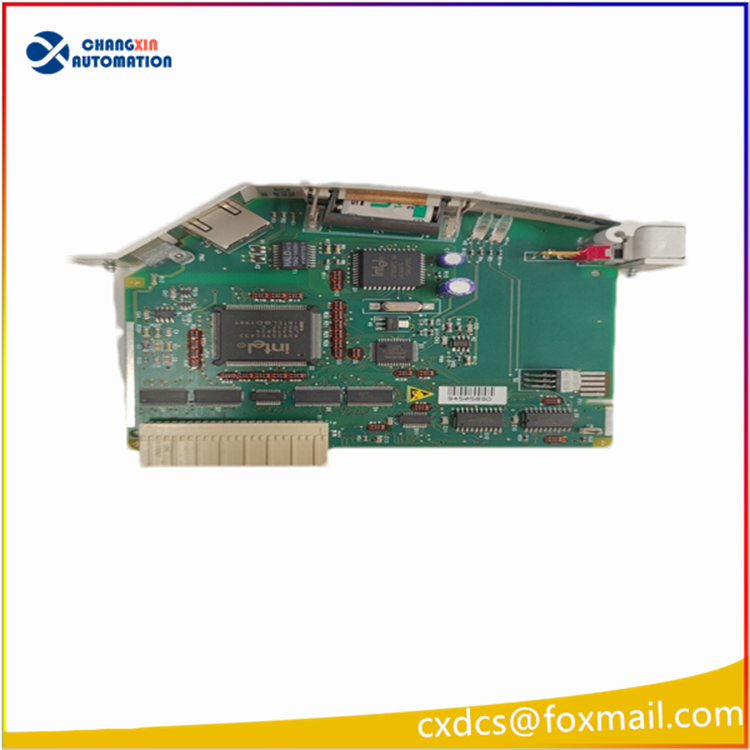

ABB EI813F 3BDH000022R1 Fieldbus Module

product description:

ABB EI813F 3BDH000022R1 Fieldbus Module Core Analysis
I. Product Positioning and Core Functions
The ABB EI813F 3BDH000022R1 is the Ethernet communication module of the AC800F field controller, and it is a key component of ABB’s industrial automation control system. Its core functions include:
High-speed Ethernet connection: Supports the 10Base-T standard, providing a 10 Mbps transmission rate, enabling efficient data exchange between the controller and external devices (such as HMI, SCADA systems, other PLCs or network devices).
Fieldbus integration: As a Fieldbus module, it enables the controller to be connected to the industrial Ethernet, supporting protocols such as TCP/IP, UDP, and ARP, and adapting to diverse industrial scenarios.
Modular expansion: Compatible with the modular design of the AC800F controller, supporting on-demand expansion to meet the flexible configuration requirements of complex automation systems.

Technical Characteristics and Advantages
Communication Performance
Full-duplex mode: Ensures efficient bidirectional data transmission and reduces network latency.
Low CPU load: Direct Memory Access (DMA) technology keeps the CPU usage for data transmission below 4%, ensuring stable operation of the controller.
Hardware Design
Industrial-grade reliability: Utilizes anti-interference hardware design to adapt to harsh industrial environments (such as vibration, electromagnetic interference, temperature fluctuations).
Compact Structure: The module is compact in size, facilitating integration into the rack of the AC800F controller and saving space.
Compatibility and Expandability
Multi-protocol support: In addition to Ethernet protocol, it can work in coordination with other ABB modules (such as Profibus DPV1 module FI830F, FF HSE module FI840F) to achieve multi-bus integration.
Redundancy Configuration: Supports use with redundant power modules (such as SA811F) to enhance system availability.

Typical application scenarios
Manufacturing automation
In industries such as automotive manufacturing and mechanical processing, the EI813F module can connect PLCs, sensors, and actuators on the production line to achieve real-time data exchange between devices, optimizing the production process.
Energy and power
Used in substation automation systems, it monitors the status of equipment such as circuit breakers and transformers, and uploads data via Ethernet to the control center, supporting remote operation and fault diagnosis.
Process industry
In fields such as oil and gas, and chemical engineering, the module can be integrated into the DCS system to collect analog signals such as temperature, pressure, and flow, achieving automation and modularization of process control.
Infrastructure and municipal engineering
Applied in water treatment plants, it monitors pump stations, valves, and liquid level sensors to ensure the stable operation of the water supply system, and realizes centralized management through the network.
