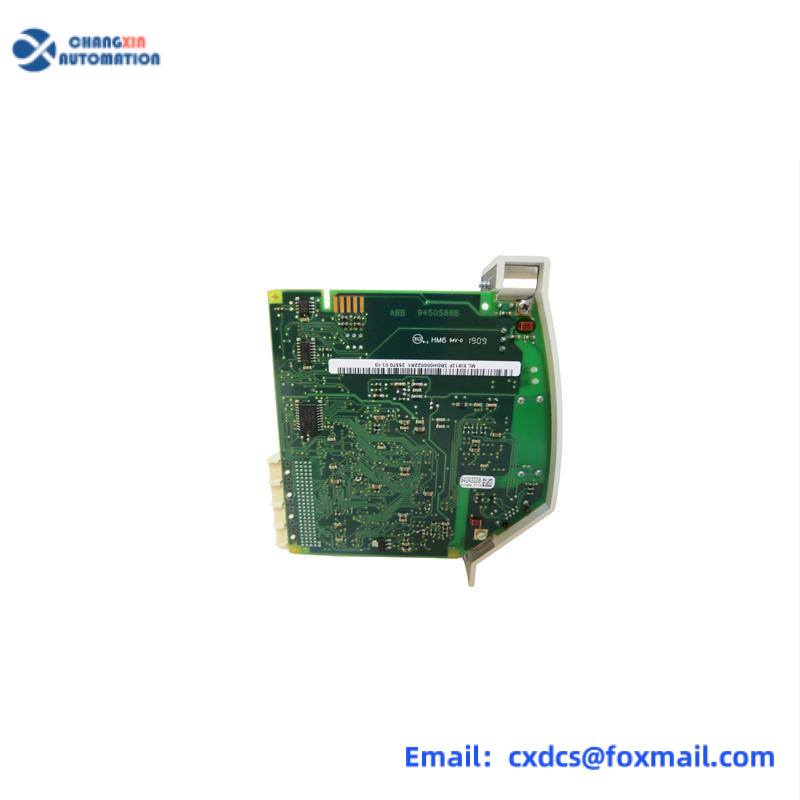

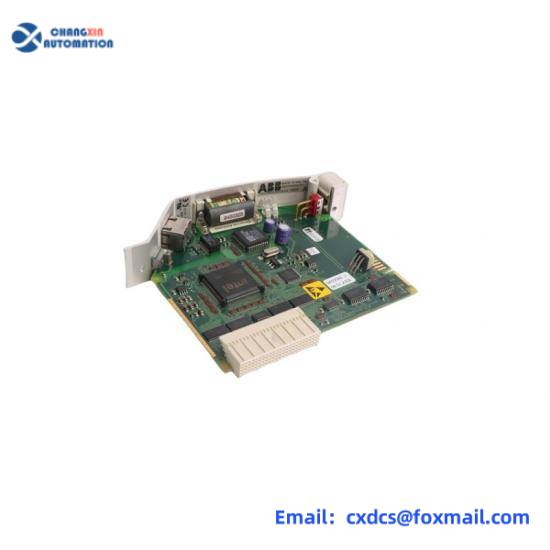

ABB EI813F 3BDH000022R2 Ethernet Module – Industrial Networking Innovation
The ABB EI813F 3BDH000022R2 Ethernet Module represents a breakthrough in industrial communication technology, engineered to deliver ultra-reliable connectivity for mission-critical automation systems. This compact industrial-grade module enables seamless integration with ABB’s distributed control systems while supporting dual-protocol EtherCAT and EtherNet/IP standards.
Key Features
- Dual-Protocol Support: Simultaneous EtherCAT and EtherNet/IP communication capabilities for seamless integration with diverse industrial equipment
- Extreme Environmental Tolerance: -25°C to +60°C operating range ensures reliable performance in harsh manufacturing conditions
- High-Speed Connectivity: 1 Gbps data transfer rate enables real-time process monitoring and control
- Energy-Efficient Design: Ultra-low 3W power consumption reduces operational costs
- Extended Reach: 100m transmission distance over standard Cat5e/Cat6 cables simplifies network architecture
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB EI813F 3BDH000022R2 |
| Power Requirements | Max 3W |
| Dimensions | 95mm x 50mm x 20mm |
| Operating Temperature | -25°C to +60°C |
| Communication Interfaces | RJ45 Ethernet ports |
| Installation Method | DIN rail mounting |
Application Fields
Engineered for demanding industrial environments, this Ethernet module excels in:
- Manufacturing automation systems requiring real-time data exchange
- Process industries with extreme temperature variations
- Energy management systems needing reliable communication
- Transportation infrastructure with extended network requirements
Our Featured Brands & Models
As a leading distributor of industrial control products, we offer comprehensive solutions from top-tier brands including:
- ABB: DSQC series robot parts, PM866, AC800PEC
- GE Fanuc: VMIVME-7807, IC698CPE010
- Bently Nevada: 3500/44, 3300 system components
- Triconex: 3008, 3720 modules
- Foxboro: FCP270, FBM204 modules
- Woodward: 8521-0312, 9907-167 controllers
