The ABB EL3020 gas analyzer is a high-precision and powerful gas analysis device. Here is a detailed introduction to it:
I. Product Overview

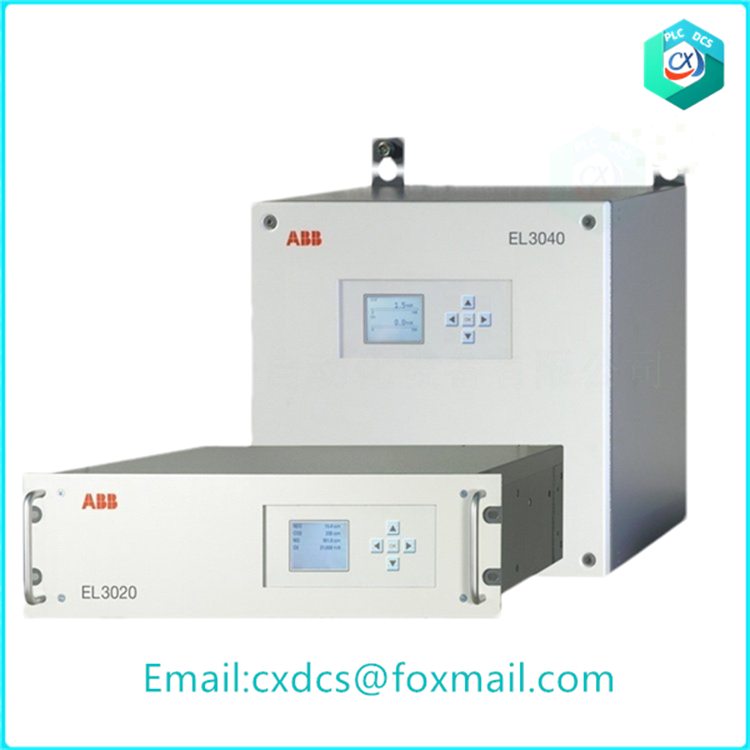

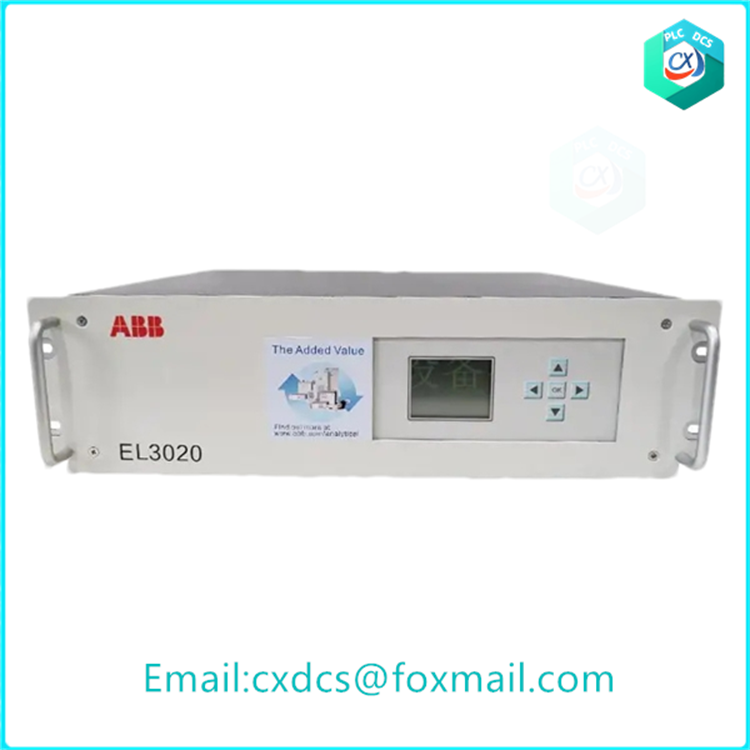

The ABB EL3020 gas analyzer employs non-dispersive infrared (NDIR) technology to achieve high-precision detection and concentration determination of gases. It features high sensitivity, repeatability and stability, and can obtain accurate and reliable data results in an extremely short time. ABB EL3020 Gas Analyzer
II. Technical Features
High Precision Measurement:
The device uses an inflatable climate radiation detector, which is filled with the corresponding gas to be measured, providing high sensitivity and selectivity.
The dual-layer detector and optical coupler design offer excellent selectivity and low detection limit values.
Reliable and Durable:
The gas path is made of corrosion-resistant materials, the sample gas chamber is washable, and it has electrical and physical characteristics such as airtight isolation, blow-off, etc.
The protection level is IP65, with an optional heating function, suitable for harsh environments.
Easy to Operate:
Simple and intuitive operation, driven by a five-button menu, easy to operate and configure.
Input/Output can be configured, supporting RS232 or RS485 communication, analog output DC 4mA – 20mA.
Self-Diagnosis Function:
Detailed self-diagnosis function with error message output, facilitating users to promptly identify and solve problems.
Automatic Calibration:
In many applications, automatic calibration is used without the need for standard gas, simplifying the calibration process.
III. Product Parameters
Measurement Range: Depending on the specific model and application scenario, it can measure various gas components such as SO2, NO, O2, CO, CO2, NH3, H2O, CH4, etc.
Measurement Accuracy: ±1%FS (full scale) or higher, depending on the measured gas and range.
Response Time: T90 time < 2 seconds or shorter, ensuring rapid response.
Power Supply Voltage: 100 – 240 V AC (±15%, +10%), power frequency 50 – 60 Hz (±3 Hz).
Environmental Temperature: -10 ℃ ~ +45 ℃, suitable for different working environments.
Protection Grade: IP65, providing excellent dust and water resistance performance.
