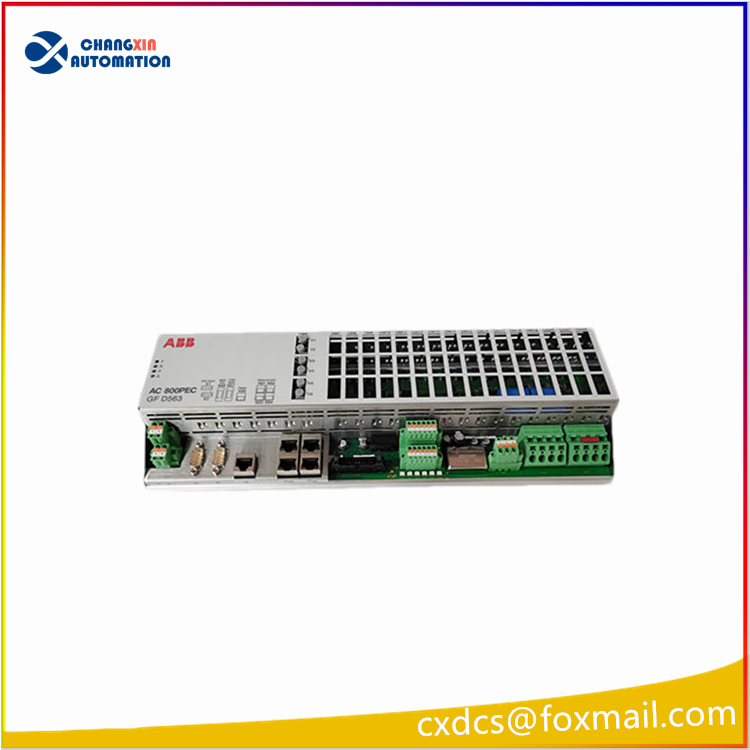

The ABB GFD563A101 3BHE046836R0101 is a high-performance excitation central processing unit module or analog I/O module, and it is a key component of the ABB AC 800PEC controller system. The following is an introduction to this module:
I. Main Functions
Excitation Control: This module is specifically designed for the self-excited static rectifier excitation system. It serves as an excitation regulator, playing a crucial role in controlling the excitation current and voltage of the generator to meet the requirements of the power system.
Analog and Digital Input/Output Conversion:
Analog-to-Digital Conversion: Receives continuous analog input signals (such as temperature, voltage, or current from sensors) and converts them into digital signals that can be processed by PLC (Programmable Logic Controller) or other digital control systems.
Digital-to-Analog Conversion: Converts digital signals from the control system back into analog signals to control field equipment.
Central Processing Unit (CPU) Function: As the central processing unit of the system, it is responsible for interpreting commands, processing data, and managing the data exchange between the CPU and I/O devices.
Technical Characteristics
High-speed and Low-speed Control: The AC 800PEC system is designed to handle high-speed process control requirements (such as power electronics) and more typical low-speed PLC tasks.
Powerful Input/Output Functionality: Supports various combinations of analog and digital input/output, capable of simultaneously processing multiple signals to meet complex control requirements.
Flexible Scalability: Can be expanded through additional modules (local or remote) to accommodate more complex application needs.
Multifunctionality: Supports a range of control functions, including motion control, logic control, and data acquisition. It can be connected to various sensors, actuators, and other devices.
Protection Features: Includes overcurrent, overvoltage, and overheat protection to ensure safe and reliable equipment operation.
High-performance Processing: Utilizes a high-performance processor and advanced control algorithms to achieve fast and accurate control responses, precise motion trajectory planning, and robust data processing.
Easy Integration: Designed for easy integration with various devices and systems.
Programming and Communication
Programming: The AC 800PEC controller can be programmed using ABB’s Control Builder M (in accordance with IEC 61131-3), MATLAB, Simulink, and Simulink Coder.
Communication Protocol: It supports Ethernet protocol, as well as common industrial communication protocols such as Modbus, Profibus, etc., and can communicate with other devices and systems.
Application fields
Industrial automation: Widely used in various industrial automation scenarios, such as production line control, robot control, and general process automation. It helps convert physical quantities (temperature, pressure, etc.) into digital signals for PLC processing.
Power system: Crucial for monitoring power plants, power grids, and energy distribution systems, helping to improve efficiency, reliability, and response capabilities. This includes excitation control of generators.
Robot technology: Used to control the motion trajectory, speed, force, and other parameters of robots to achieve precise operations.
Motor control: As the core component of the excitation system, it has extensive applications in motor control and can improve motor performance and efficiency.
Transportation field: Can be used in traffic signal control and railway signal systems, etc., making traffic smoother and enhancing safety.
