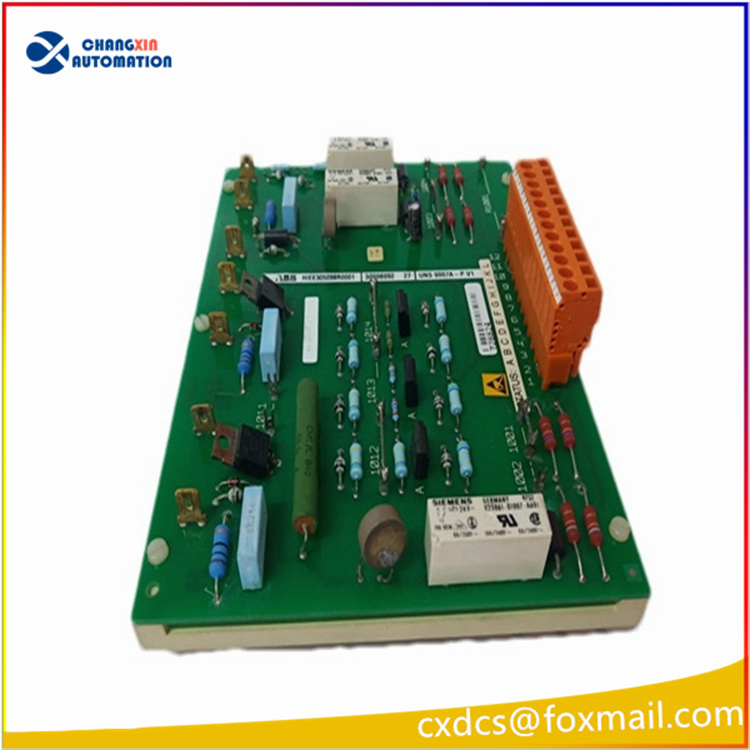

ABB HIEE305098R0001 Controller Module

ABB HIEE305098R0001 is a controller module, which is commonly used in industrial automation and power systems, especially in medium and large-scale industrial process control applications. The following is an introduction to this module:
I. Function and Application
Control Function: The HIEE305098R0001 module, as a key component in the System 800xA architecture, is responsible for executing the control logic written by users, managing I/O data streams, handling communication tasks, and supporting collaborative work with operator stations, engineering stations, and other subsystems.
Redundancy Configuration: This module fully supports 1:1 hot standby redundancy configuration. Two CPU modules exchange status and data in real time through synchronous optical fibers. In the event of a main control unit failure, the backup unit can seamlessly take over within milliseconds, ensuring that critical processes do not stop.
Industrial Applications: The HIEE305098R0001 module is widely used in continuous process industries with extremely high requirements for system reliability and control accuracy, such as thermal power plants, large-scale refineries, cement production lines, and municipal water treatment plants.

Technical Specifications
Processor: Based on the mature ARM architecture processor, it is equipped with sufficient program and data storage space, and can easily handle large-scale projects with thousands of I/O points, hundreds of PID loops, and complex sequential control.
Communication capability: Connected through a dedicated high-speed backplane bus with TB840A or TB850 redundant baseboard, it achieves low-latency communication with S800 I/O module.
Operating temperature: Adopting a fanless sealed structure, the operating temperature ranges from -25°C to +60°C. It has strong resistance to vibration and electromagnetic interference, and meets the IEC 61000-6 series EMC standards.
