product description
The ABB 5SHY 35L4520 (5SXE08-0167 AC10272001R0101) is an Integrated Gate-Commutated Thyristor (IGCT) designed for high-power industrial applications. This robust semiconductor device delivers reliable switching performance in medium-voltage drives, FACTS, and industrial converters. With low conduction losses, high surge current capability, and integrated gate drive, it ensures efficiency in demanding environments like power transmission, mining, and steel production.
Core Analysis of ABB IGCT 5SHY35L4520, 5SXE08-0167, AC10272001R0101 Silicon Controlled

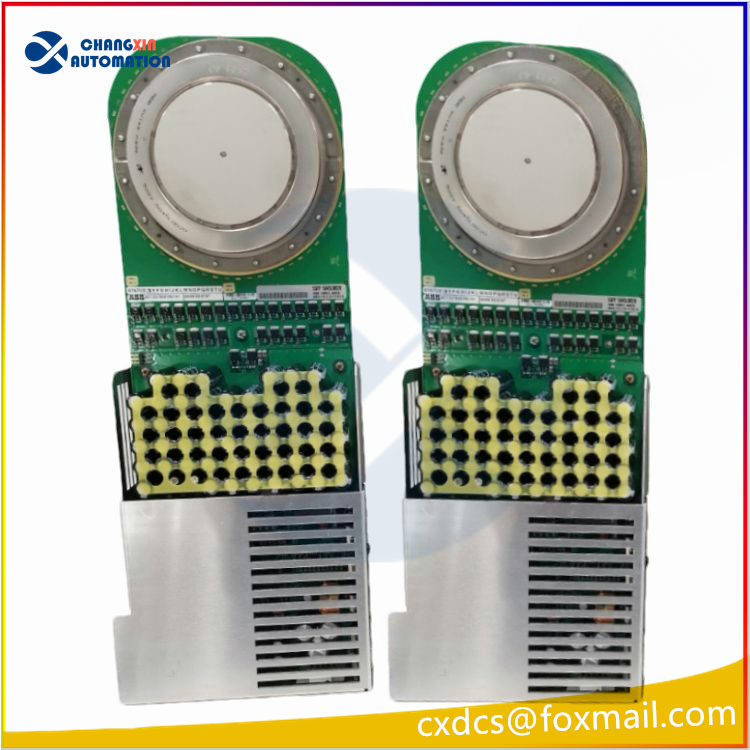

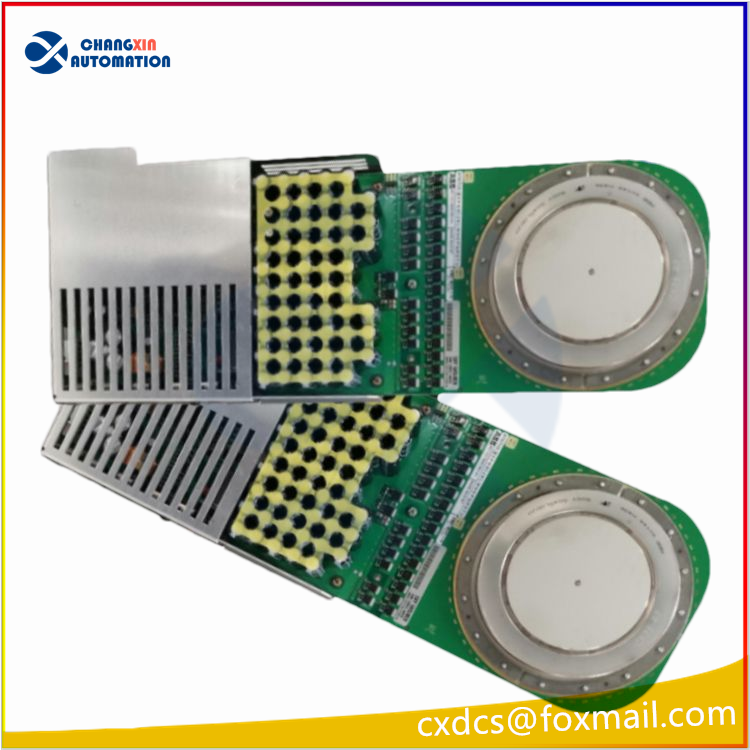

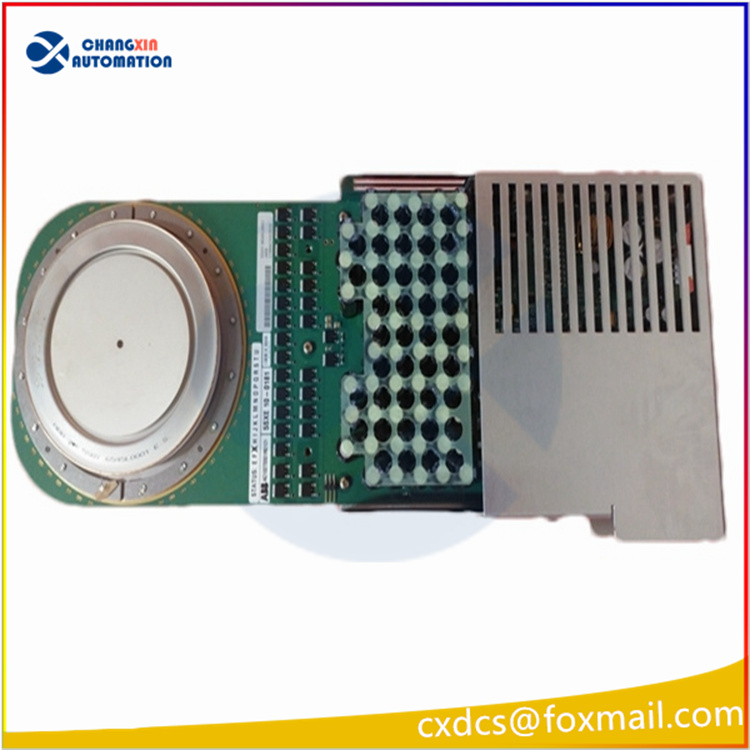

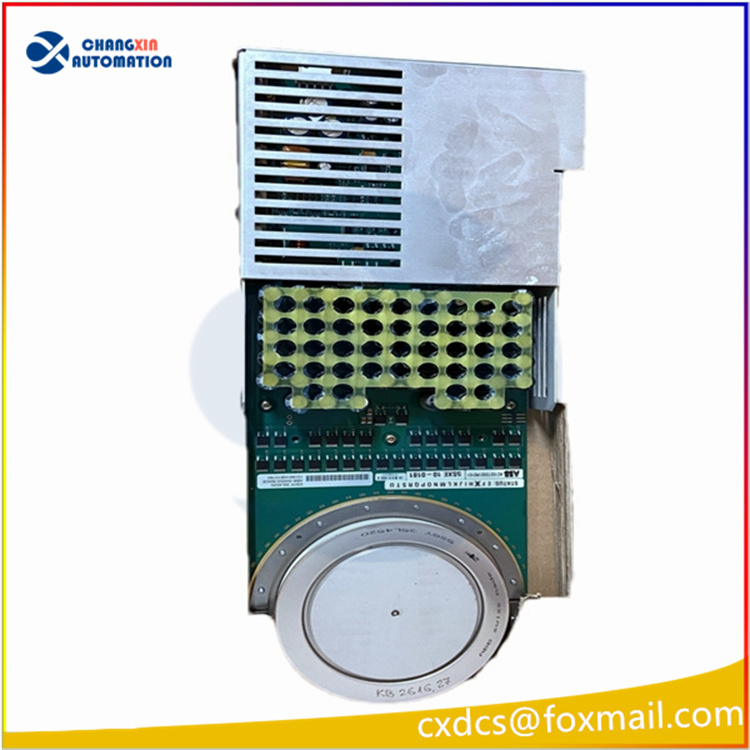

5SHY35L4520: High-Voltage IGCT Module
Key Features:
High Voltage and High Current: Rated voltage 6500V, rated current 1000A, suitable for high-voltage circuits (such as HVDC, STATCOM).
Low Loss and High Efficiency: On-state voltage drop 2.5V, switching loss 5.0J, junction temperature tolerance 175°C, enhancing system efficiency.
High-Frequency Switching: Switching frequency up to 2kHz, suitable for high-frequency applications (such as reactive power compensation, motor drive).
Integrated Drive: Built-in drive circuit, simplifying external design and shortening development cycle.
Multiple Protections: Overcurrent, overtemperature, overvoltage protection, ensuring safe operation of the equipment.
2. 5SXE08-0167: Supporting drive or control module
Speculated functions:
Drive circuit: It may provide gate drive signals for 5SHY35L4520 to achieve efficient switching control.
Signal processing: Integrated current/voltage monitoring and fault diagnosis functions, supporting system protection and status feedback.
Communication interface: Supports protocols such as Modbus and IEC61850 for data exchange with other devices.
Application scenarios:
High-voltage frequency converter: Cooperates with 5SHY35L4520 to achieve motor speed regulation and energy conversion.
SVG equipment: Compensates reactive power through high-frequency switching to improve power factor of the power grid.
3. AC10272001R0101: Control board or interface module
Core features:
Digital signal processing: High-speed computing capability for rapid fault detection and protection actions.
Communication integration: Supports multiple protocols (such as IEC61850 and Modbus) for system monitoring and data exchange.
Flexible configuration: Users can achieve personalized protection and control functions through logic programming and parameter settings.
Fault recording: Supports event log function for convenient fault analysis and system optimization.
Application scenarios:
HVDC system: As the control core, it coordinates the switching actions of multiple IGCT modules to achieve DC transmission.
Industrial automation: Integrated with PLC and DCS systems to achieve complex process control and monitoring.
4. Silicon Controlled (Thyristor) Technology Background
IGCT (Integrated Gate Commutated Thyristor):
Technology integration: Combines the high voltage tolerance of thyristors with the high-frequency switching characteristics of IGBTs, eliminating the need for buffer circuits.
Performance advantages: Low conduction loss, high switching frequency, and high reliability, suitable for high-voltage and high-power scenarios.
Application fields: HVDC, STATCOM, high-voltage frequency converters, and industrial motor drives.
5. Comprehensive Application Solution
Typical system architecture:
Power level: 5SHY35L4520 (IGCT module) achieves electrical energy conversion and control.
Drive level: 5SXE08-0167 (drive module) provides gate signals and protection functions.
Control level: AC10272001R0101 (control board) realizes system monitoring, fault diagnosis, and communication.
Advantage summary:
High efficiency and reliability: Low loss, high junction temperature tolerance, suitable for harsh industrial environments.
Flexible integration: Standardized interfaces and communication protocols facilitate system expansion and maintenance.
Cost reduction and efficiency improvement: Reduces intermediate links (such as buffer circuits), lowering system cost and volume.
